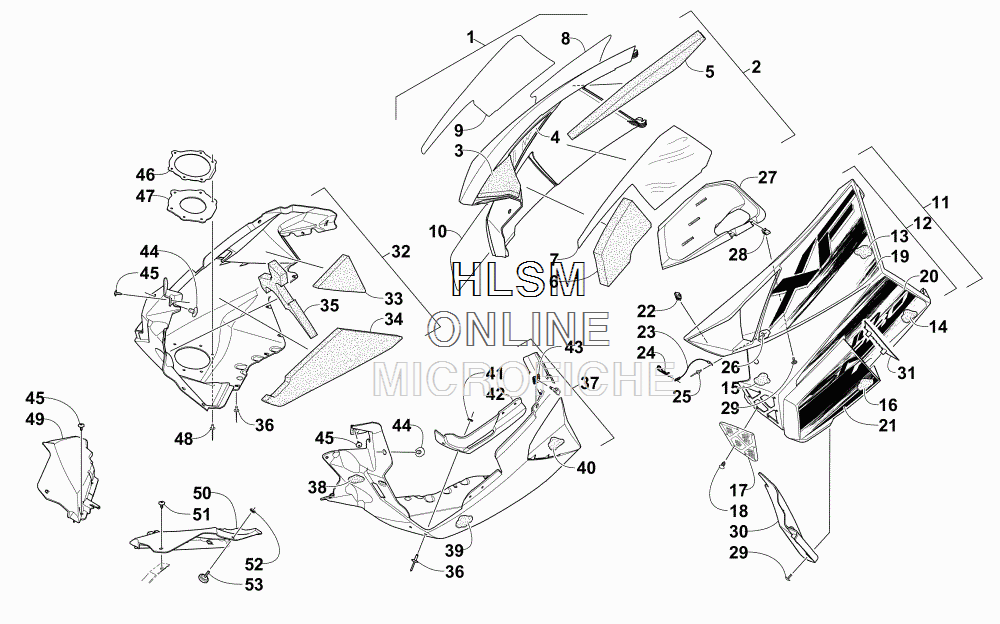

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 7000 SNO PRO 137 (GREEN) [S2015XFUSPUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-416 PANEL, SIDE W/DECALS - RIGHT - (WHITE) (INC. 2-10)
    PANEL, SIDE W/DECALS - RIGHT - (WHITE) (INC. 2-10)
  • 2
    3718-454 ...PANEL, SIDE W/O DECALS - RIGHT - (WHITE) (INC. 3-7)
    ...PANEL, SIDE W/O DECALS - RIGHT - (WHITE) (INC. 3-7)
  • 3
    0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
    ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
  • 4
    6606-414 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
    ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
  • 6
    0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 7
    6606-416 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 8
    1621-502 ...DECAL, SIDE PANEL - UPPER - RIGHT
    ...DECAL, SIDE PANEL - UPPER - RIGHT
  • 9
    1621-504 ...DECAL, SIDE PANEL - LOWER - RIGHT
    ...DECAL, SIDE PANEL - LOWER - RIGHT
  • 10
    1621-506 ...DECAL, SIDE PANEL - FORWARD - RIGHT
    ...DECAL, SIDE PANEL - FORWARD - RIGHT
  • 11
    4718-417 PANEL, SIDE W/DECALS - LEFT - (WHITE) (INC. 12-21)
    PANEL, SIDE W/DECALS - LEFT - (WHITE) (INC. 12-21)
  • 12
    4718-103 ...PANEL, SIDE W/O DECALS - LEFT - (WHITE) (INC. 13-18)
    ...PANEL, SIDE W/O DECALS - LEFT - (WHITE) (INC. 13-18)
  • 13
    0617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT
    ......FOAM, SIDE PANEL - UPPER REAR - LEFT
  • 14
    0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 15
    0617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT
    ......FOAM, SIDE PANEL - CENTER FRONT - LEFT
  • 16
    0617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 17
    2602-704 ......SCREEN, VENT
    ......SCREEN, VENT
  • 18
    0623-269 ......CLIP, RETAINER
    ......CLIP, RETAINER
  • 19
    1621-503 ...DECAL, SIDE PANEL - UPPER - LEFT
    ...DECAL, SIDE PANEL - UPPER - LEFT
  • 20
    1621-505 ...DECAL, SIDE PANEL - LOWER - LEFT
    ...DECAL, SIDE PANEL - LOWER - LEFT
  • 21
    1621-507 ...DECAL, SIDE PANEL - FORWARD - LEFT
    ...DECAL, SIDE PANEL - FORWARD - LEFT
  • 22
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 23
    0607-447 CABLE,5"-HAIRPIN
    CABLE,5"-HAIRPIN
  • 24
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 25
    8060-486 RIVET, BLIND-DH SS54 ZINC
    RIVET, BLIND-DH SS54 ZINC
  • 26
    8050-127 WASHER,FLAT- #8 X .375 X .049 Z & Y
    WASHER,FLAT- #8 X .375 X .049 Z & Y
  • 27
    1702-369 DUCT, AIR - CLUTCH
    DUCT, AIR - CLUTCH
  • 28
    1623-030 NUT,SPEED-#10B U TYPE
    NUT,SPEED-#10B U TYPE
  • 29
    0623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
    SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
  • 30
    2602-711 DEFLECTOR, AIR
    DEFLECTOR, AIR
  • 31
    2602-703 RETAINER, AIR DEFLECTOR
    RETAINER, AIR DEFLECTOR
  • 32
    3718-788 PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 33-35)
    PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 33-35)
  • 33
    0617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT
    ...FOAM, SKID PLATE - UPPER REAR - RIGHT
  • 34
    0617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
    ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
  • 35
    0617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
    ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
  • 36
    8061-708 RIVET, BLIND-LF SS66 (BLACK)
    RIVET, BLIND-LF SS66 (BLACK)
  • 37
    3718-789 PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 38-42)
    PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 38-42)
  • 38
    0617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT
    ...FOAM, SKID PLATE - UPPER FRONT - LEFT
  • 39
    0617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT
    ...FOAM, SKID PLATE - CENTER FRONT - LEFT
  • 40
    0617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT
    ...FOAM, SKID PLATE - UPPER REAR - LEFT
  • 41
    0123-802 ...WASHER,FLAT .194X.50X.048
    ...WASHER,FLAT .194X.50X.048
  • 42
    6606-613 ...PANEL, REINFORCEMENT
    ...PANEL, REINFORCEMENT
  • 43
    2623-005 CLIP,RECEPTACLE-1/4 TURN STUD
    CLIP,RECEPTACLE-1/4 TURN STUD
  • 44
    6606-592 PIN,RETAINER-BODY PLASTIC
    PIN,RETAINER-BODY PLASTIC
  • 45
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
  • 46
    2612-685 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 47
    2612-964 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 48
    8061-508 RIVET,BLIND-LF SS56 (BLACK)
    RIVET,BLIND-LF SS56 (BLACK)
  • 49
    6606-342 FASCIA, FRONT - RIGHT - (BLACK)
    FASCIA, FRONT - RIGHT - (BLACK)
  • 50
    6606-579 FASCIA, FRONT - LEFT - (BLACK)
    FASCIA, FRONT - LEFT - (BLACK)
  • 51
    0623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
    SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
  • 52
    2623-001 NUT, PUSH (OPTIONAL)
    NUT, PUSH (OPTIONAL)
  • 53
    1623-999 SCREW, THUMB (OPTIONAL)
    SCREW, THUMB (OPTIONAL)
