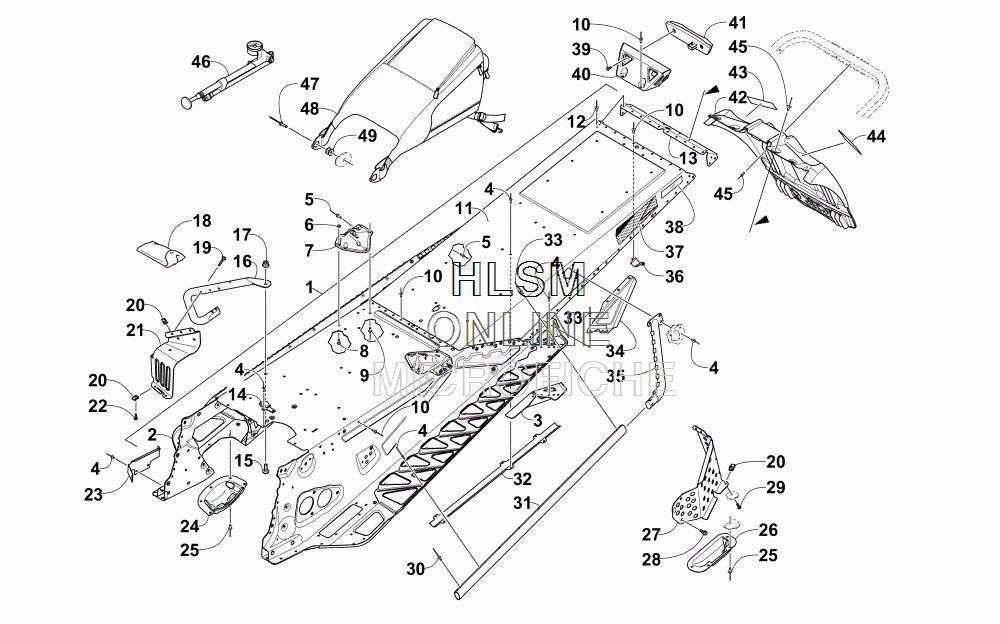

TUNNEL AND SNOWFLAP ASSEMBLY для Arctic Cat XF 6000 CROSS-TOUR 141 (ORANGE) [S2015X6DCTUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2707-051 COMPLETE CHASSIS ASSEMBLY
    COMPLETE CHASSIS ASSEMBLY
  • 1
    2707-249 TUNNEL ASSEMBLY (INC. 2-13)
    TUNNEL ASSEMBLY (INC. 2-13)
  • 2
    2707-248 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
    ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
  • 3
    1607-342 ......BRACKET, MOUNTING - SUSPENSION - RIGHT
    ......BRACKET, MOUNTING - SUSPENSION - RIGHT
  • 3
    1607-343 ......BRACKET, MOUNTING - SUSPENSION - LEFT
    ......BRACKET, MOUNTING - SUSPENSION - LEFT
  • 4
    8060-686 ......RIVET
    ......RIVET
  • 5
    1623-206 ...RIVET
    ...RIVET
  • 6
    8422-502 ...NUT, LOCK
    ...NUT, LOCK
  • 7
    1707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT
  • 7
    1707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT
    ...BRACKET, MOUNTING - REAR SPAR - LEFT
  • 8
    8476-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    1623-257 ...RIVET
    ...RIVET
  • 10
    8060-682 ...RIVET
    ...RIVET
  • 11
    1607-251 ...TUNNEL, REAR
    ...TUNNEL, REAR
  • 12
    8060-484 ...RIVET
    ...RIVET
  • 13
    1607-104 ...END CAP, TUNNEL
    ...END CAP, TUNNEL
  • 14
    0645-709 CLIP, ROUTING
    CLIP, ROUTING
  • 15
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    1707-454 SUPPORT, FOOTREST - RIGHT - (BLACK)
    SUPPORT, FOOTREST - RIGHT - (BLACK)
  • 16
    1707-455 SUPPORT, FOOTREST - LEFT - (BLACK)
    SUPPORT, FOOTREST - LEFT - (BLACK)
  • 17
    8427-802 NUT, LOCK
    NUT, LOCK
  • 18
    0744-076 KIT, TOOL
    KIT, TOOL
  • 19
    8468-535 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 21
    0607-996 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 21
    0607-997 FOOTREST - LEFT
    FOOTREST - LEFT
  • 22
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    0608-705 BRACKET, ROUTING - OIL LINE
    BRACKET, ROUTING - OIL LINE
  • 24
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 25
    8061-708 RIVET
    RIVET
  • 26
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 27
    1607-371 SHIELD, BRAKE DISC
    SHIELD, BRAKE DISC
  • 28
    8408-613 SCREW, CAP
    SCREW, CAP
  • 29
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 30
    1623-130 RIVET
    RIVET
  • 31
    1607-092 ROLL, TUNNEL
    ROLL, TUNNEL
  • 32
    0630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 33
    1623-241 RIVET
    RIVET
  • 34
    1607-162 GUSSET, RUNNING BOARD - RIGHT
    GUSSET, RUNNING BOARD - RIGHT
  • 34
    1607-163 GUSSET, RUNNING BOARD - LEFT
    GUSSET, RUNNING BOARD - LEFT
  • 35
    1607-040 GUSSET, TUNNEL ROLL - RIGHT
    GUSSET, TUNNEL ROLL - RIGHT
  • 35
    1607-041 GUSSET, TUNNEL ROLL - LEFT
    GUSSET, TUNNEL ROLL - LEFT
  • 36
    0630-292 PROTECTOR, HARNESS - TAILLIGHT
    PROTECTOR, HARNESS - TAILLIGHT
  • 37
    1621-568 DECAL, TUNNEL - RIGHT
    DECAL, TUNNEL - RIGHT
  • 37
    1621-569 DECAL, TUNNEL - LEFT
    DECAL, TUNNEL - LEFT
  • 38
    0621-991 DECAL, REFLECTOR - (RED)
    DECAL, REFLECTOR - (RED)
  • 39
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 40
    0630-328 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 41
    0609-898 TAILLIGHT, (RED)
    TAILLIGHT, (RED)
  • 42
    6606-394 SNOWFLAP
    SNOWFLAP
  • 43
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 44
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 45
    8061-706 RIVET
    RIVET
  • 46
    0641-257 PUMP, SHOCK
    PUMP, SHOCK
  • 47
    8060-630 RIVET
    RIVET
  • 48
    6606-582 SADDLEBAG
    SADDLEBAG
  • 49
    1623-940 MOUNT, SADDLEBAG
    MOUNT, SADDLEBAG
