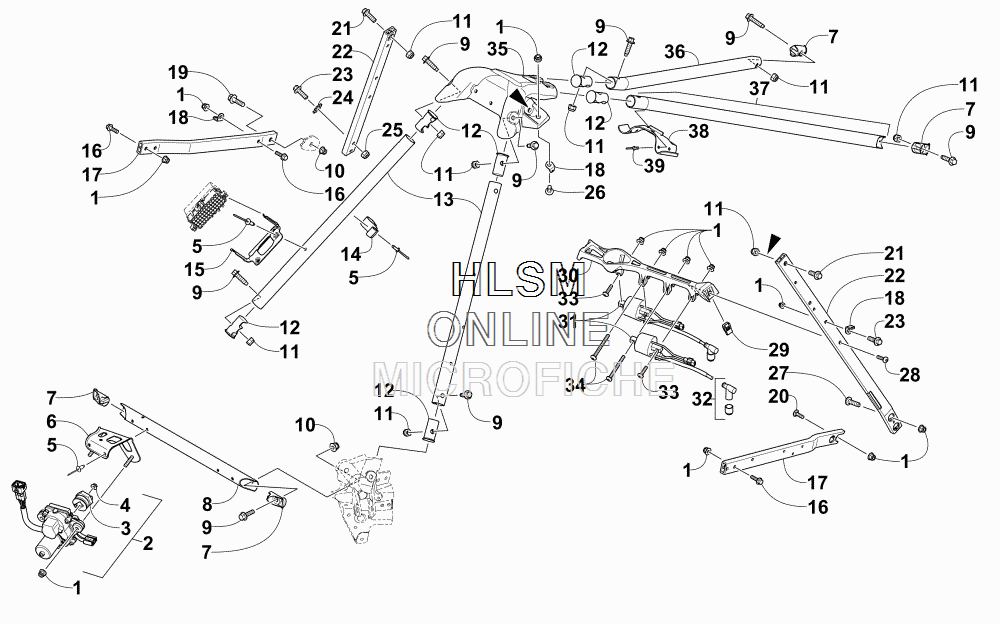

STEERING SUPPORT ASSEMBLY для Arctic Cat XF 6000 CROSS-TOUR 141 (ORANGE) [S2015X6DCTUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8427-602 NUT, LOCK
    NUT, LOCK
  • 2
    0902-012 SERVOMOTOR (INC. 3-4)
    SERVOMOTOR (INC. 3-4)
  • 3
    0902-019 ...PULLEY, CONTROLLER
    ...PULLEY, CONTROLLER
  • 4
    8424-501 ...NUT
    ...NUT
  • 5
    8060-686 RIVET
    RIVET
  • 6
    4706-845 BRACKET, MOUNTING - SERVOMOTOR
    BRACKET, MOUNTING - SERVOMOTOR
  • 7
    1607-002 INSERT
    INSERT
  • 8
    1707-582 SUPPORT, SHOCK MOUNT BRACKET
    SUPPORT, SHOCK MOUNT BRACKET
  • 9
    1623-982 SCREW, CAP
    SCREW, CAP
  • 10
    8427-802 NUT, LOCK
    NUT, LOCK
  • 11
    8422-802 NUT, LOCK
    NUT, LOCK
  • 12
    1607-094 INSERT
    INSERT
  • 13
    2707-424 SPAR, FRONT - (BLACK)
    SPAR, FRONT - (BLACK)
  • 14
    1623-938 CLAMP, ROUTING
    CLAMP, ROUTING
  • 15
    0645-653 BRACKET, MOUNTING - FUSE BLOCK
    BRACKET, MOUNTING - FUSE BLOCK
  • 16
    8408-630 SCREW, CAP
    SCREW, CAP
  • 17
    0607-248 SUPPORT, CHASSIS - RIGHT
    SUPPORT, CHASSIS - RIGHT
  • 17
    1607-368 SUPPORT, CHASSIS - LEFT
    SUPPORT, CHASSIS - LEFT
  • 18
    2612-707 TAB, SPRING
    TAB, SPRING
  • 19
    8408-885 SCREW, CAP
    SCREW, CAP
  • 20
    1623-917 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 21
    8408-820 SCREW, CAP
    SCREW, CAP
  • 22
    0607-252 SUPPORT, SIDE - REAR - RIGHT
    SUPPORT, SIDE - REAR - RIGHT
  • 22
    1607-581 SUPPORT, SIDE - REAR - LEFT
    SUPPORT, SIDE - REAR - LEFT
  • 23
    8408-625 SCREW, CAP
    SCREW, CAP
  • 24
    8053-212 WASHER, LOCK
    WASHER, LOCK
  • 25
    8422-602 NUT, LOCK
    NUT, LOCK
  • 26
    8408-620 SCREW, CAP
    SCREW, CAP
  • 27
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    8476-626 SCREW, MACHINE
    SCREW, MACHINE
  • 29
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 30
    0708-626 BRACKET, MOUNTING - COIL
    BRACKET, MOUNTING - COIL
  • 31
    0902-034 COIL, IGNITION - ASSEMBLY (INC. 32)
    COIL, IGNITION - ASSEMBLY (INC. 32)
  • 32
    3006-367 ...CAP, SPARK PLUG
    ...CAP, SPARK PLUG
  • 33
    8468-640 SCREW, MACHINE
    SCREW, MACHINE
  • 34
    8468-650 SCREW, MACHINE
    SCREW, MACHINE
  • 35
    1707-570 SUPPORT, STEERING - (BLACK)
    SUPPORT, STEERING - (BLACK)
  • 36
    1707-566 SPAR, REAR - RIGHT - (BLACK)
    SPAR, REAR - RIGHT - (BLACK)
  • 37
    5706-225 BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 38-39)
    BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 38-39)
  • 38
    6606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE
    ...BRACKET, HOLD-DOWN - SEAT-BASE
  • 39
    8060-484 ...RIVET
    ...RIVET
