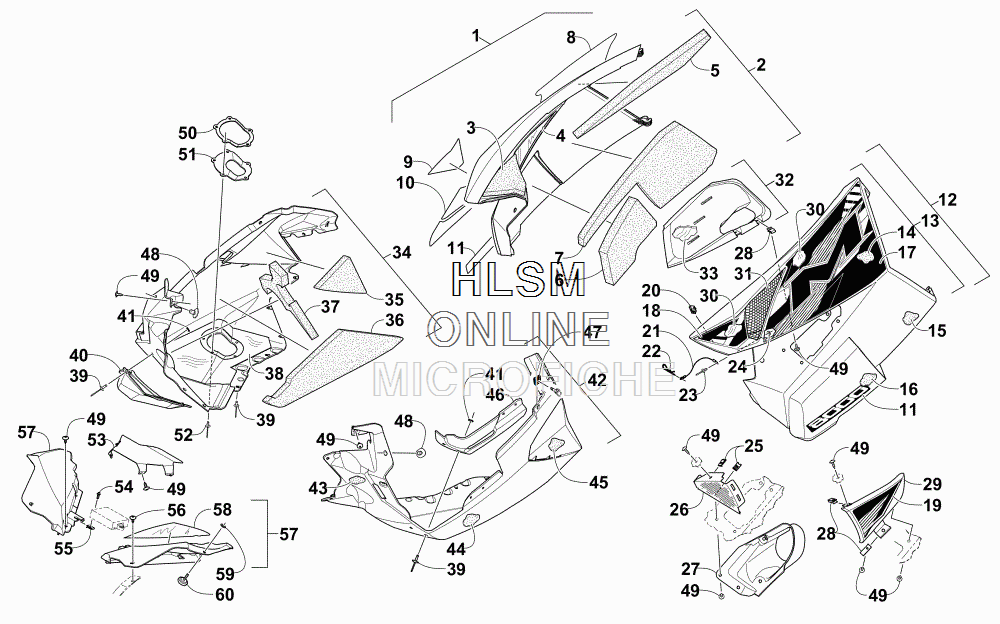

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 8000 SNO PRO 162 (RUSSIAN) (ORANGE) [S2015M8HSERUO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-180 PANEL, SIDE W/DECALS - RIGHT - (BLACK/ORANGE) (INC. 2-11)
    PANEL, SIDE W/DECALS - RIGHT - (BLACK/ORANGE) (INC. 2-11)
  • 2
    3718-180 ...PANEL, SIDE W/O DECALS - RIGHT - (BLACK) (INC. 3-7)
    ...PANEL, SIDE W/O DECALS - RIGHT - (BLACK) (INC. 3-7)
  • 3
    0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
    ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
  • 4
    6606-414 ......FOIL, PROTECTIVE - CENTER - RIGHT
    ......FOIL, PROTECTIVE - CENTER - RIGHT
  • 5
    0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
    ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
  • 6
    0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 7
    0617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT
    ......FOAM, SIDE PANEL - LOWER REAR - RIGHT
  • 8
    1621-404 ...DECAL, SIDE PANEL - UPPER - RIGHT - (ORANGE)
    ...DECAL, SIDE PANEL - UPPER - RIGHT - (ORANGE)
  • 9
    1621-448 ...DECAL, "8000"
    ...DECAL, "8000"
  • 10
    1621-410 ...DECAL, SIDE PANEL - CENTER - RIGHT - (ORANGE)
    ...DECAL, SIDE PANEL - CENTER - RIGHT - (ORANGE)
  • 11
    1621-408 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - (ORANGE)
    ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - (ORANGE)
  • 12
    4718-181 PANEL, SIDE W/DECALS - LEFT - (BLACK/ORANGE) (INC. 13-19)
    PANEL, SIDE W/DECALS - LEFT - (BLACK/ORANGE) (INC. 13-19)
  • 13
    4718-553 ...PANEL, SIDE W/O DECALS - LEFT - (BLACK) (INC. 14-16)
    ...PANEL, SIDE W/O DECALS - LEFT - (BLACK) (INC. 14-16)
  • 14
    0617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT
    ......FOAM, SIDE PANEL - UPPER REAR - LEFT
  • 15
    0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 16
    0617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 17
    1621-405 ...DECAL, SIDE PANEL - UPPER - LEFT - (ORANGE)
    ...DECAL, SIDE PANEL - UPPER - LEFT - (ORANGE)
  • 18
    1621-409 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - (ORANGE)
    ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - (ORANGE)
  • 19
    2621-311 ...DECAL, SIDE PANEL - CENTER VENT - LEFT - (ORANGE)
    ...DECAL, SIDE PANEL - CENTER VENT - LEFT - (ORANGE)
  • 20
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 21
    0607-447 CABLE
    CABLE
  • 22
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 23
    8060-486 RIVET
    RIVET
  • 24
    8050-127 WASHER
    WASHER
  • 25
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 26
    6606-925 SCREEN, INTAKE
    SCREEN, INTAKE
  • 27
    2602-794 DUCT, INTAKE - INNER
    DUCT, INTAKE - INNER
  • 28
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 29
    2602-793 DUCT, INTAKE - OUTER - (BLACK)
    DUCT, INTAKE - OUTER - (BLACK)
  • 30
    0619-206 FOIL, PROTECTIVE - (6 IN. X 30 FT)
    FOIL, PROTECTIVE - (6 IN. X 30 FT)
  • 31
    5706-531 SCREEN, INTAKE - UPPER - LEFT - (BLACK)
    SCREEN, INTAKE - UPPER - LEFT - (BLACK)
  • 32
    1702-369 DUCT, AIR - CLUTCH (INC. 33)
    DUCT, AIR - CLUTCH (INC. 33)
  • 33
    6606-694 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 34
    3718-422 PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 35-41)
    PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 35-41)
  • 35
    0617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT
    ...FOAM, SKID PLATE - UPPER REAR - RIGHT
  • 36
    0617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
    ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
  • 37
    0617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
    ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
  • 38
    2612-850 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 39
    8061-708 ...RIVET
    ...RIVET
  • 40
    2612-754 ...DEFLECTOR, HEAT
    ...DEFLECTOR, HEAT
  • 41
    0123-802 ...WASHER
    ...WASHER
  • 42
    3718-789 PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 43-46)
    PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 43-46)
  • 43
    0617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT
    ...FOAM, SKID PLATE - UPPER FRONT - LEFT
  • 44
    0617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT
    ...FOAM, SKID PLATE - CENTER FRONT - LEFT
  • 45
    0617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT
    ...FOAM, SKID PLATE - UPPER REAR - LEFT
  • 46
    6606-613 ...PANEL, REINFORCEMENT
    ...PANEL, REINFORCEMENT
  • 47
    2623-005 CLIP, RETAINING
    CLIP, RETAINING
  • 48
    6606-592 PIN, RETAINING
    PIN, RETAINING
  • 49
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 50
    2612-796 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 51
    2612-795 SEAL, EXHAUST OUTLET - 2 STROKE
    SEAL, EXHAUST OUTLET - 2 STROKE
  • 52
    8061-710 RIVET, BLIND - LARGE FLANGE - (BLACK)
    RIVET, BLIND - LARGE FLANGE - (BLACK)
  • 53
    6606-295 SHIELD, HEAT - ECM
    SHIELD, HEAT - ECM
  • 54
    8408-620 SCREW, CAP
    SCREW, CAP
  • 55
    0423-031 CLIP, U-NUT
    CLIP, U-NUT
  • 56
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 57
    6606-342 FASCIA, FRONT - RIGHT - (BLACK)
    FASCIA, FRONT - RIGHT - (BLACK)
  • 57
    3718-303 FASCIA, FRONT - LEFT - (BLACK) (INC. 58)
    FASCIA, FRONT - LEFT - (BLACK) (INC. 58)
  • 58
    6606-405 ...FOIL, PROTECTIVE - FILLER - LEFT
    ...FOIL, PROTECTIVE - FILLER - LEFT
  • 59
    2623-001 NUT, PUSH
    NUT, PUSH
  • 60
    1623-999 SCREW, THUMB
    SCREW, THUMB
