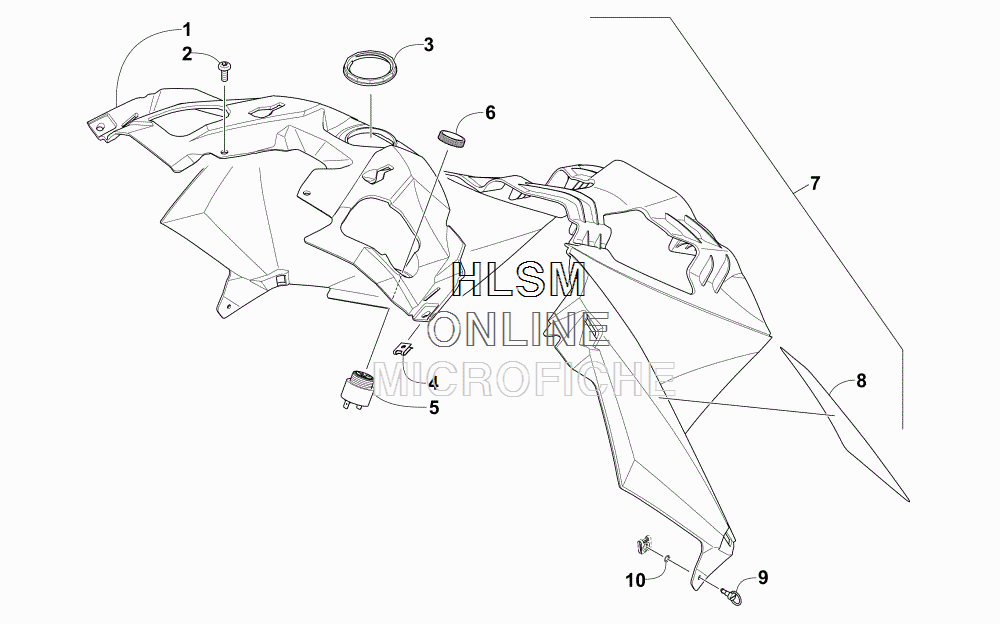

CONSOLE ASSEMBLY для Arctic Cat M 8000 SNO PRO 162 (RUSSIAN) (ORANGE) [S2015M8HSERUO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6606-305 CONSOLE, UPPER - (BLACK)
    CONSOLE, UPPER - (BLACK)
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 4
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 5
    0630-243 ALARM, REVERSE (INC. 6)
    ALARM, REVERSE (INC. 6)
  • 6
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 7
    4718-537 CONSOLE, LOWER - (BLACK) (INC. 8)
    CONSOLE, LOWER - (BLACK) (INC. 8)
  • 8
    2621-211 ...DECAL, WARNING - RUSSIAN
    ...DECAL, WARNING - RUSSIAN
  • 9
    2623-003 PIN, RETAINING
    PIN, RETAINING
  • 10
    2623-004 NUT, PUSH
    NUT, PUSH
