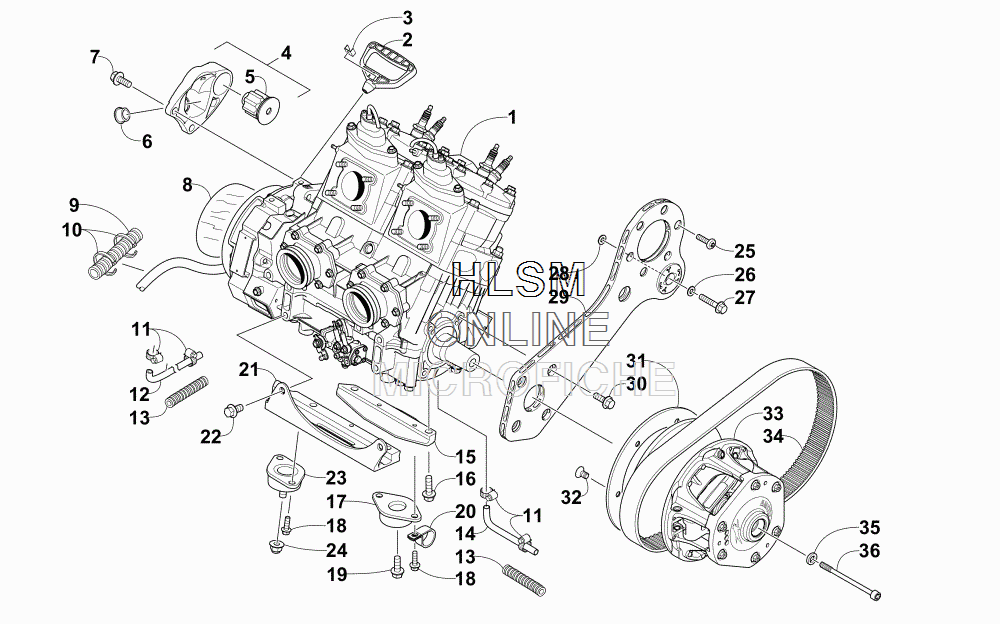

ENGINE AND RELATED PARTS для Arctic Cat M 8000 SNO PRO 162 (INTERNATIONAL) (GREEN) [S2015M8HSEOSG] - 2015 года выпуска`
-
№АртикулНазвание
-
10662-609 ENGINE,L/C-800 HO (W/O EFI/VALVE CABLES)ENGINE,L/C-800 HO (W/O EFI/VALVE CABLES)
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40708-582 BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)
-
50608-630 ...MOUNT, ENGINE...MOUNT, ENGINE
-
60608-633 ...BUSHING...BUSHING
-
78409-026 SCREW, CAPSCREW, CAP
-
84606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
91619-131 CONDUIT, FLEXIBLE ((3/4 IN. ID) - 12 IN.)CONDUIT, FLEXIBLE ((3/4 IN. ID) - 12 IN.)
-
100123-788 TIE, CABLE - (8 IN.)TIE, CABLE - (8 IN.)
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
120610-923 HOSE, COOLANT - MAG/THROTTLE BODYHOSE, COOLANT - MAG/THROTTLE BODY
-
130619-776 CONDUIT - (5 FT)CONDUIT - (5 FT)
-
140610-878 HOSE, COOLANTHOSE, COOLANT
-
150708-602 PLATE, ENGINE MOUNTING - LOWER REARPLATE, ENGINE MOUNTING - LOWER REAR
-
168409-036 SCREW, CAPSCREW, CAP
-
170608-496 MOUNT, ENGINEMOUNT, ENGINE
-
181623-944 SCREW, SHOULDERSCREW, SHOULDER
-
198409-017 SCREW, CAPSCREW, CAP
-
201623-080 CLAMP, ROUTINGCLAMP, ROUTING
-
210708-600 PLATE, ENGINE MOUNTING - LOWER FRONTPLATE, ENGINE MOUNTING - LOWER FRONT
-
228409-021 SCREW, CAPSCREW, CAP
-
230708-587 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
248427-002 NUT, LOCKNUT, LOCK
-
258468-617 SCREW, MACHINESCREW, MACHINE
-
268050-242 WASHERWASHER
-
271623-932 SCREW, CAPSCREW, CAP
-
280623-987 WASHER, BELLVILE - 0.312 X 0.930WASHER, BELLVILE - 0.312 X 0.930
-
290708-622 BRACKET, ENGINE MOUNTING - PTO-SIDE - ASSEMBLYBRACKET, ENGINE MOUNTING - PTO-SIDE - ASSEMBLY
-
301623-937 SCREW, CAPSCREW, CAP
-
310645-410 RING, DAMPERRING, DAMPER
-
321623-821 SCREW, MACHINESCREW, MACHINE
-
330746-435 CLUTCH,DRIVE-UNCAL- (8.25 33MM/S)CLUTCH,DRIVE-UNCAL- (8.25 33MM/S)
-
340627-084 BELT, DRIVEBELT, DRIVE
-
351623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
361623-792 BOLT, CLUTCHBOLT, CLUTCH
