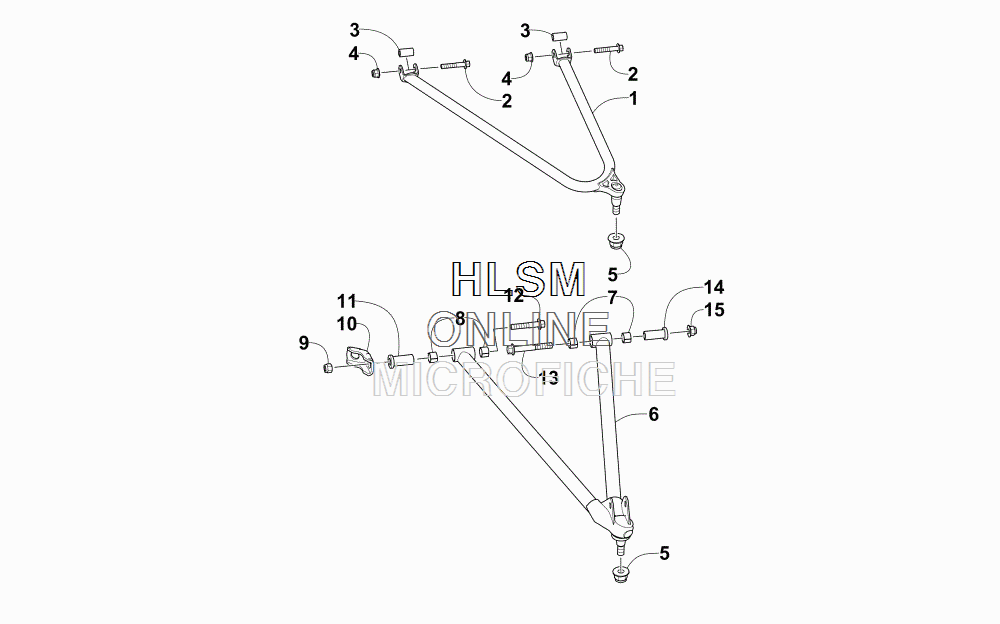

A-ARM ASSEMBLY для Arctic Cat M 8000 SNO PRO 162 (INTERNATIONAL) (GREEN) [S2015M8HSEOSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-150 A-ARM, UPPER - RIGHT - (BLACK)
    A-ARM, UPPER - RIGHT - (BLACK)
  • 1
    3703-151 A-ARM, UPPER - LEFT - (BLACK)
    A-ARM, UPPER - LEFT - (BLACK)
  • 2
    8413-645 SCREW, CAP
    SCREW, CAP
  • 3
    3603-258 AXLE
    AXLE
  • 4
    8437-604 NUT, LOCK
    NUT, LOCK
  • 5
    8427-202 NUT, LOCK
    NUT, LOCK
  • 6
    3703-152 A-ARM, LOWER - RIGHT -(BLACK) (INC. 7-8)
    A-ARM, LOWER - RIGHT -(BLACK) (INC. 7-8)
  • 6
    3703-153 A-ARM, LOWER - LEFT - (BLACK) (INC. 7-8)
    A-ARM, LOWER - LEFT - (BLACK) (INC. 7-8)
  • 7
    1603-895 ......BEARING
    ......BEARING
  • 8
    2603-911 ......BEARING
    ......BEARING
  • 9
    1623-965 NUT, LOCK
    NUT, LOCK
  • 10
    2603-909 BRACE, LOWER A-ARM - FRONT
    BRACE, LOWER A-ARM - FRONT
  • 11
    2603-916 AXLE, INNER - LOWER A-ARM - FRONT
    AXLE, INNER - LOWER A-ARM - FRONT
  • 12
    1623-953 SCREW, CAP
    SCREW, CAP
  • 13
    8409-075 SCREW, CAP
    SCREW, CAP
  • 14
    3603-259 AXLE, LOWER A-ARM - REAR
    AXLE, LOWER A-ARM - REAR
  • 15
    8427-002 NUT, LOCK
    NUT, LOCK
