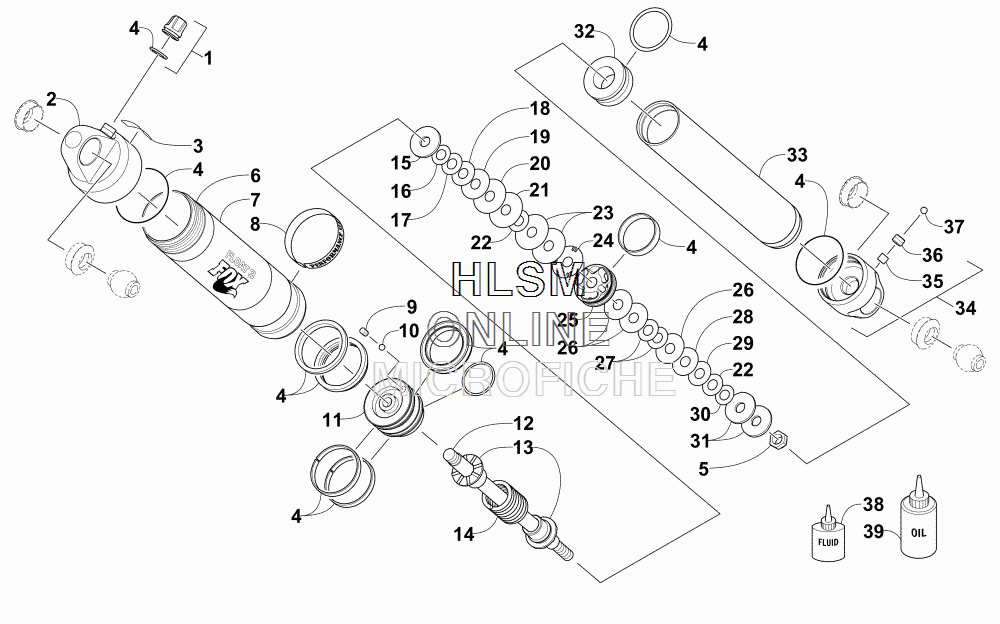

SUSPENSION FRONT - SHOCK ABSORBER для Arctic Cat M 8000 SNO PRO 153 (ORANGE) [S2015M8HSPUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    3703-284 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    3603-366 CAP, AIR VALVE
    CAP, AIR VALVE
  • 2
    3603-333 END CAP, SHOCK
    END CAP, SHOCK
  • 3
    3603-359 DECAL, PSI
    DECAL, PSI
  • 4
    3603-293 KIT, SEAL/CAP REBUILD (INC. 5)
    KIT, SEAL/CAP REBUILD (INC. 5)
  • 5
    3603-018 ...NUT, LOCK
    ...NUT, LOCK
  • 6
    3603-301 BODY, SHOCK - UPPER
    BODY, SHOCK - UPPER
  • 7
    3603-369 DECAL, "FOX"
    DECAL, "FOX"
  • 8
    3603-365 DECAL, "PERFORMANCE SERIES"
    DECAL, "PERFORMANCE SERIES"
  • 9
    1603-940 SCREW, SET
    SCREW, SET
  • 10
    1604-315 BALL, BLEED
    BALL, BLEED
  • 11
    3603-291 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 12
    2603-415 ROD, SHOCK
    ROD, SHOCK
  • 13
    2603-522 GUIDE, SPRING
    GUIDE, SPRING
  • 14
    2603-656 SPRING
    SPRING
  • 15
    0603-540 WASHER, TOP OUT-1.125OD X .378 ID X.093
    WASHER, TOP OUT-1.125OD X .378 ID X.093
  • 16
    0603-332 VALVE, 0.700 X 0.010 IN.
    VALVE, 0.700 X 0.010 IN.
  • 17
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 18
    0603-338 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 19
    0603-344 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 20
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 21
    0603-350 VALVE, 1.300 X 0.010 IN.
    VALVE, 1.300 X 0.010 IN.
  • 22
    0603-334 VALVE, .800X.008 (3/8ID)
    VALVE, .800X.008 (3/8ID)
  • 23
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 24
    3603-345 VALVE, 1.300 X 0.010 IN.
    VALVE, 1.300 X 0.010 IN.
  • 25
    3603-397 PISTON, 3-PORT
    PISTON, 3-PORT
  • 26
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 27
    0603-895 VALVE, 0.800 X 0.004 IN.
    VALVE, 0.800 X 0.004 IN.
  • 28
    0603-340 VALVE, 1.000 X 0.008 IN.
    VALVE, 1.000 X 0.008 IN.
  • 29
    0603-337 VALVE, 0.900 X 0.008 IN.
    VALVE, 0.900 X 0.008 IN.
  • 30
    0603-331 VALVE, 0.700 X 0.008 IN.
    VALVE, 0.700 X 0.008 IN.
  • 31
    2604-966 WASHER, TOP OUT
    WASHER, TOP OUT
  • 32
    3603-023 PISTON, FLOATING W/O-RING
    PISTON, FLOATING W/O-RING
  • 33
    3603-299 BODY, SHOCK - LOWER
    BODY, SHOCK - LOWER
  • 34
    3603-332 END CAP, SHOCK (INC. 35-36)
    END CAP, SHOCK (INC. 35-36)
  • 35
    1604-428 ...PLUG, RUBBER - VALVE
    ...PLUG, RUBBER - VALVE
  • 36
    2603-338 ...SCREW, SET
    ...SCREW, SET
  • 37
    2603-337 BALL, AIR VALVE
    BALL, AIR VALVE
  • 38
    4639-012 FLUID, FLOAT SHOCK - 8 OZ
    FLUID, FLOAT SHOCK - 8 OZ
  • 39
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
