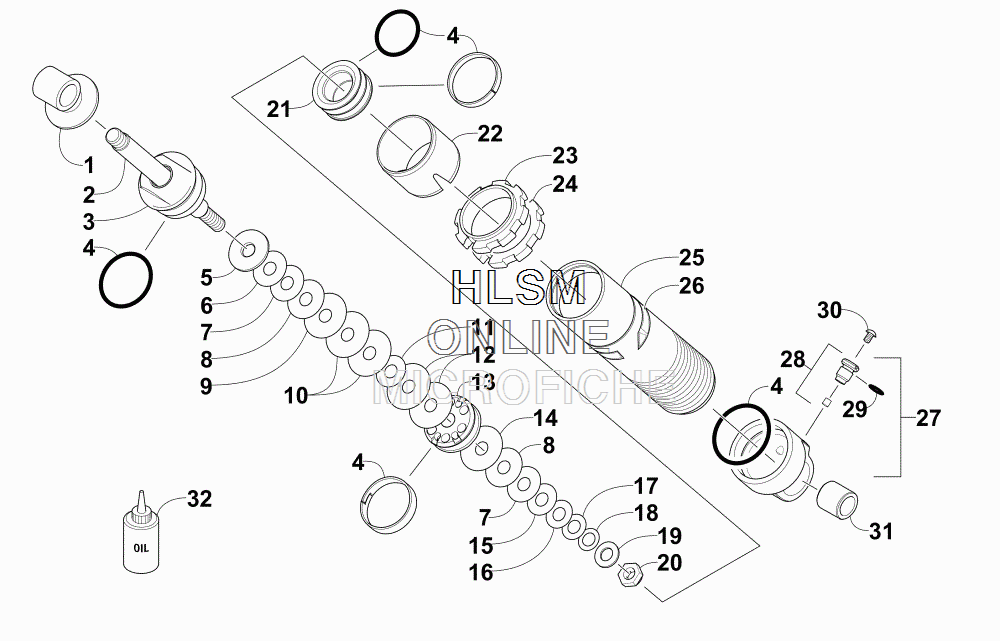

SUSPENSION FRONT - FRONT ARM SHOCK ABSORBER для Arctic Cat M 8000 SNO PRO 153 (GREEN) [S2015M8HSPUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-706 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    3604-797 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    3604-763 ROD, SHOCK
    ROD, SHOCK
  • 3
    4604-125 BEARING, ENDCAP - SHORT W/BLEED - ASSEMBLY
    BEARING, ENDCAP - SHORT W/BLEED - ASSEMBLY
  • 4
    4604-121 KIT, SEAL/REBUILD
    KIT, SEAL/REBUILD
  • 5
    3604-789 WASHER, TOP OUT
    WASHER, TOP OUT
  • 6
    3603-122 VALVE, (1.000 X 0.006 IN.)
    VALVE, (1.000 X 0.006 IN.)
  • 7
    3603-124 VALVE, (1.000 X 0.008 IN.)
    VALVE, (1.000 X 0.008 IN.)
  • 8
    3603-144 VALVE, (1.100 X 0.008 IN.)
    VALVE, (1.100 X 0.008 IN.)
  • 9
    3603-174 VALVE, (1.250 X 0.008 IN.)
    VALVE, (1.250 X 0.008 IN.)
  • 10
    3603-184 VALVE, (1.300 X 0.008 IN.)
    VALVE, (1.300 X 0.008 IN.)
  • 11
    3603-105 VALVE, (0.800 X 0.010 IN.)
    VALVE, (0.800 X 0.010 IN.)
  • 12
    3603-182 VALVE, (1.300 X 0.006 IN.)
    VALVE, (1.300 X 0.006 IN.)
  • 13
    2603-998 PISTON, (0.063 IN.) - ORIFICE
    PISTON, (0.063 IN.) - ORIFICE
  • 14
    3603-175 VALVE, (1.250 X 0.010 IN.)
    VALVE, (1.250 X 0.010 IN.)
  • 15
    3603-114 VALVE, (0.900 X 0.008 IN.)
    VALVE, (0.900 X 0.008 IN.)
  • 16
    3603-104 VALVE, (0.800 X 0.008 IN.)
    VALVE, (0.800 X 0.008 IN.)
  • 17
    3603-092 VALVE, (0.700 X 0.006 IN.)
    VALVE, (0.700 X 0.006 IN.)
  • 18
    2603-015 VALVE, (0.550 X 0.020 IN.)
    VALVE, (0.550 X 0.020 IN.)
  • 19
    3604-775 WASHER, BACKUP
    WASHER, BACKUP
  • 20
    3604-739 NUT
    NUT
  • 21
    3604-772 PISTON, FLOATING
    PISTON, FLOATING
  • 22
    3604-773 SLEEVE, WEAR
    SLEEVE, WEAR
  • 23
    2603-014 NUT, ADJUSTER
    NUT, ADJUSTER
  • 24
    3604-779 COLLAR, LOCKING - ADJUSTER NUT
    COLLAR, LOCKING - ADJUSTER NUT
  • 25
    3604-758 BODY, SHOCK
    BODY, SHOCK
  • 26
    1621-728 DECAL, WARNING - HIGH PRESSURE
    DECAL, WARNING - HIGH PRESSURE
  • 27
    2704-257 END CAP, SHOCK - ASSEMBLY (INC. 28-29)
    END CAP, SHOCK - ASSEMBLY (INC. 28-29)
  • 28
    3604-751 ...VALVE, PRESSURE (INC. 29)
    ...VALVE, PRESSURE (INC. 29)
  • 29
    3604-733 ......O-RING, VALVE
    ......O-RING, VALVE
  • 30
    3604-750 SCREW, MACHINE
    SCREW, MACHINE
  • 31
    3604-906 BUSHING
    BUSHING
  • 32
    5639-530 OIL, SHOCK - (1 QT)
    OIL, SHOCK - (1 QT)
