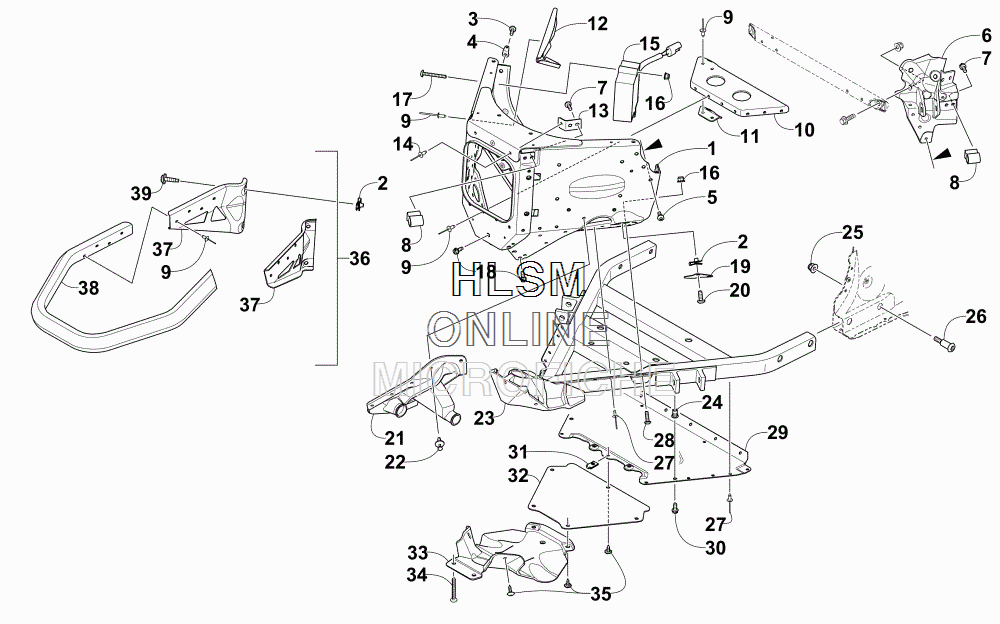

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat M 8000 SNO PRO 153 (GREEN) [S2015M8HSPUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2707-483 PANEL,FRT-ASSY (8MM) 8000-PTD (BLACK) (INC. 2-6)
    PANEL,FRT-ASSY (8MM) 8000-PTD (BLACK) (INC. 2-6)
  • 2
    0423-577 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 3
    1623-683 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 4
    2612-707 ...TAB, SPRING
    ...TAB, SPRING
  • 5
    0423-538 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 6
    2707-304 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - (BLACK)
    ...BRACKET, SHOCK MOUNT - UPPER RIGHT - (BLACK)
  • 6
    2707-305 ...BRACKET, SHOCK MOUNT - UPPER LEFT - (BLACK)
    ...BRACKET, SHOCK MOUNT - UPPER LEFT - (BLACK)
  • 7
    8413-617 SCREW, CAP
    SCREW, CAP
  • 8
    1607-233 BRACKET, MOUNTING - UPPER A-ARM
    BRACKET, MOUNTING - UPPER A-ARM
  • 9
    8060-706 ........................RIVET
    ........................RIVET
  • 10
    1607-565 BRACKET, REINFORCEMENT - LOWER
    BRACKET, REINFORCEMENT - LOWER
  • 11
    1607-566 BRACE, STEERING POST - LOWER
    BRACE, STEERING POST - LOWER
  • 12
    0607-991 BRACKET, STEERING STOP
    BRACKET, STEERING STOP
  • 13
    1607-561 GUSSET, A-ARM MOUNTING BRACKET - UPPER
    GUSSET, A-ARM MOUNTING BRACKET - UPPER
  • 14
    1623-241 RIVET
    RIVET
  • 15
    0630-323 REGULATOR/RECTIFIER
    REGULATOR/RECTIFIER
  • 16
    8427-602 NUT, LOCK
    NUT, LOCK
  • 17
    8477-650 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    1623-959 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 19
    1707-568 PANEL, CLOSE-OFF
    PANEL, CLOSE-OFF
  • 20
    8471-616 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    1605-028 BOOT, STEERING - RIGHT
    BOOT, STEERING - RIGHT
  • 21
    1605-029 BOOT, STEERING - LEFT
    BOOT, STEERING - LEFT
  • 22
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 23
    1707-865 FRAME, FRONT - LOWER - (BLACK)
    FRAME, FRONT - LOWER - (BLACK)
  • 24
    1623-797 INSERT
    INSERT
  • 25
    8427-802 NUT, LOCK
    NUT, LOCK
  • 26
    1623-817 SCREW, SHOULDER
    SCREW, SHOULDER
  • 27
    8060-686 RIVET
    RIVET
  • 28
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 29
    0607-983 BELLY PAN - CENTER
    BELLY PAN - CENTER
  • 30
    8476-520 SCREW, MACHINE
    SCREW, MACHINE
  • 31
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 32
    1607-063 PANEL, ACCESS
    PANEL, ACCESS
  • 33
    6606-614 BELLY PAN - FRONT
    BELLY PAN - FRONT
  • 34
    1623-929 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 35
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 36
    1707-596 BUMPER, FRONT - ASSEMBLY - (BLACK) (INC. EIGHT NO. 9 AND 37-38)
    BUMPER, FRONT - ASSEMBLY - (BLACK) (INC. EIGHT NO. 9 AND 37-38)
  • 37
    1707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - (BLACK)
    ...BRACKET, MOUNTING - BUMPER - RIGHT - (BLACK)
  • 37
    1707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - (BLACK)
    ...BRACKET, MOUNTING - BUMPER - LEFT - (BLACK)
  • 38
    1707-578 ...BUMPER, FRONT - (BLACK)
    ...BUMPER, FRONT - (BLACK)
  • 39
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
