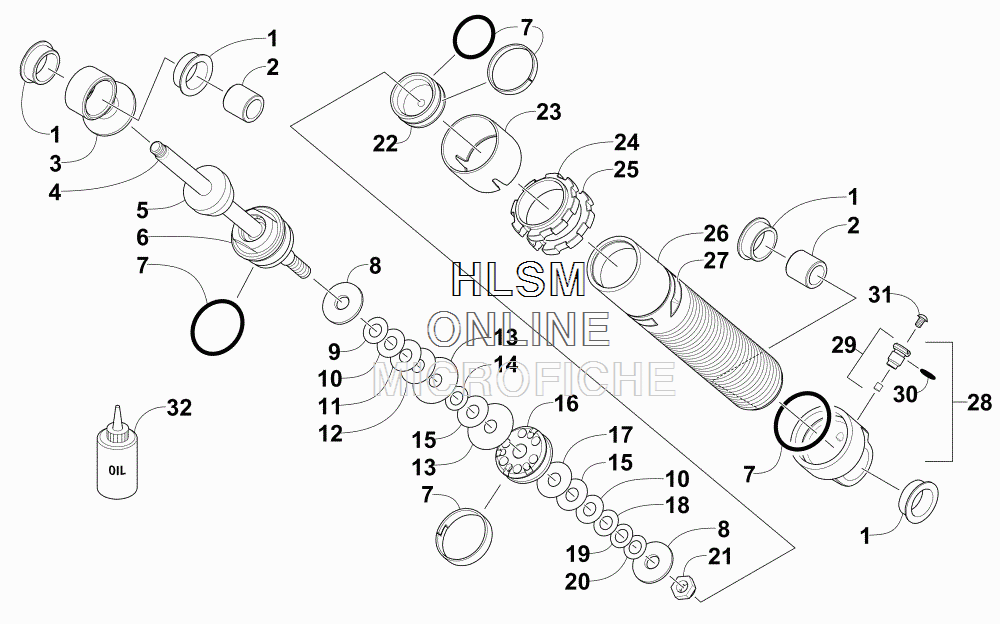

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat M 6000 153 (INTERNATIONAL) (GREEN) [S2015M6DE3OSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-367 SHOCK ABSORBER
    SHOCK ABSORBER
  • 1
    3604-738 BUSHING
    BUSHING
  • 2
    3604-737 SLEEVE
    SLEEVE
  • 3
    2603-020 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    3604-760 ROD, SHOCK
    ROD, SHOCK
  • 5
    3604-740 BUMPER, SHOCK
    BUMPER, SHOCK
  • 6
    4604-126 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 7
    4604-121 KIT, SEAL/REBUILD
    KIT, SEAL/REBUILD
  • 8
    3604-789 WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK
    WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK
  • 9
    3603-114 VALVE, SHOCK-22.86 OD X 0.2 (9.6 ID)
    VALVE, SHOCK-22.86 OD X 0.2 (9.6 ID)
  • 10
    3603-125 VALVE, SHOCK-25.4 OD X .25 (9.6 ID)
    VALVE, SHOCK-25.4 OD X .25 (9.6 ID)
  • 11
    3603-145 VALVE, SHOCK-27.94 OD X .25 (9.6 ID)
    VALVE, SHOCK-27.94 OD X .25 (9.6 ID)
  • 12
    3603-175 VALVE, SHOCK-31.75 OD X .25 (9.6 ID)
    VALVE, SHOCK-31.75 OD X .25 (9.6 ID)
  • 13
    3603-184 VALVE, SHOCK-33.02 OD X 0.2 (9.6 ID)
    VALVE, SHOCK-33.02 OD X 0.2 (9.6 ID)
  • 14
    3603-104 VALVE, SHOCK-20.32 OD X 0.2 (9.6ID)
    VALVE, SHOCK-20.32 OD X 0.2 (9.6ID)
  • 15
    3603-144 VALVE, SHOCK-27.94 OD X 0.2 (9.6 ID)
    VALVE, SHOCK-27.94 OD X 0.2 (9.6 ID)
  • 16
    2603-997 PISTON, 37 BORE-1.70 ORIFICE
    PISTON, 37 BORE-1.70 ORIFICE
  • 17
    3603-174 VALVE, SHOCK-31.75 OD X .2 (9.6 ID)
    VALVE, SHOCK-31.75 OD X .2 (9.6 ID)
  • 18
    3603-115 VALVE, SHOCK-22.86 OD X .25 (9.6 ID)
    VALVE, SHOCK-22.86 OD X .25 (9.6 ID)
  • 19
    3603-105 VALVE, SHOCK-20.32 OD X .25 (9.6 ID)
    VALVE, SHOCK-20.32 OD X .25 (9.6 ID)
  • 20
    3603-102 VALVE, SHOCK-20.32 OD X 0.15 (9.6 ID)
    VALVE, SHOCK-20.32 OD X 0.15 (9.6 ID)
  • 21
    3604-739 NUT
    NUT
  • 22
    3604-772 PISTON, FLOATING
    PISTON, FLOATING
  • 23
    3604-773 SLEEVE, WEAR
    SLEEVE, WEAR
  • 24
    2603-014 NUT, ADJUSTER
    NUT, ADJUSTER
  • 25
    3604-779 COLLAR, LOCKING - ADJUSTER NUT
    COLLAR, LOCKING - ADJUSTER NUT
  • 26
    3604-755 BODY, SHOCK
    BODY, SHOCK
  • 27
    1621-728 DECAL, WARNING - HIGH PRESSURE
    DECAL, WARNING - HIGH PRESSURE
  • 28
    2704-257 END CAP, SHOCK - ASSEMBLY (INC. 29-30)
    END CAP, SHOCK - ASSEMBLY (INC. 29-30)
  • 29
    3604-751 ...VALVE, PRESSURE (INC. 30)
    ...VALVE, PRESSURE (INC. 30)
  • 30
    3604-733 ......O-RING, VALVE
    ......O-RING, VALVE
  • 31
    3604-750 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
