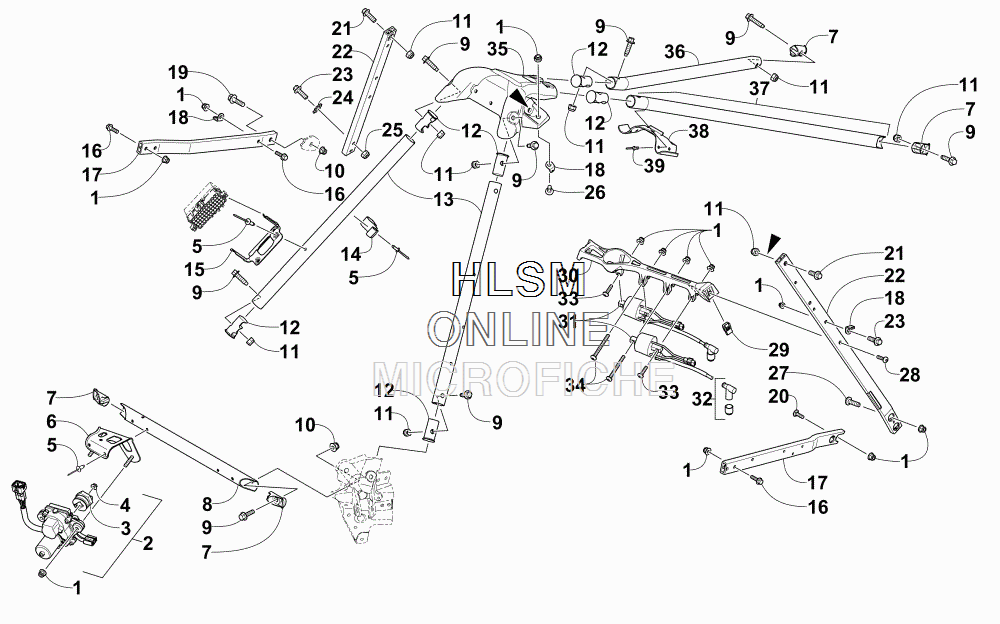

STEERING SUPPORT ASSEMBLY для Arctic Cat M 6000 153 (INTERNATIONAL) (GREEN) [S2015M6DE3OSG] - 2015 года выпуска`
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
20902-012 SERVOMOTOR (INC. 3-4)SERVOMOTOR (INC. 3-4)
-
30902-019 ...PULLEY, CONTROLLER...PULLEY, CONTROLLER
-
48424-501 ...NUT...NUT
-
58060-686 RIVETRIVET
-
64706-845 BRACKET, MOUNTING - SERVOMOTORBRACKET, MOUNTING - SERVOMOTOR
-
71607-002 INSERTINSERT
-
81707-582 SUPPORT, SHOCK MOUNT BRACKETSUPPORT, SHOCK MOUNT BRACKET
-
91623-982 SCREW, CAPSCREW, CAP
-
108427-802 NUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
118422-802 NUT, HEX-THK NYL M8X1.25 CL8 Z & YNUT, HEX-THK NYL M8X1.25 CL8 Z & Y
-
121607-094 INSERTINSERT
-
132707-424 SPAR, FRONT - BLACKSPAR, FRONT - BLACK
-
141623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
150645-653 BRACKET, MOUNTING - FUSE BLOCKBRACKET, MOUNTING - FUSE BLOCK
-
168408-630 SCREW, CAPSCREW, CAP
-
170607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
171607-368 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
182612-707 TAB, SPRINGTAB, SPRING
-
198408-885 SCREW, CAPSCREW, CAP
-
201623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
218408-820 SCREW, CAPSCREW, CAP
-
220607-252 SUPPORT, SIDE - REAR - RIGHTSUPPORT, SIDE - REAR - RIGHT
-
221607-581 SUPPORT, SIDE - REAR - LEFTSUPPORT, SIDE - REAR - LEFT
-
238408-625 SCREW, CAPSCREW, CAP
-
248053-212 WASHER, LOCKWASHER, LOCK
-
258422-602 NUT, LOCKNUT, LOCK
-
268408-620 SCREW, CAP-HFH M6X1.0X20 CL8.8 Z & YSCREW, CAP-HFH M6X1.0X20 CL8.8 Z & Y
-
278476-616 SCREW, MACH-TSTRH M6X1.0X16 Z & YSCREW, MACH-TSTRH M6X1.0X16 Z & Y
-
288476-626 SCREW, MACH-TSTRH M6X1.0X25 Z & Y W/2353SCREW, MACH-TSTRH M6X1.0X25 Z & Y W/2353
-
290423-577 CLIP, U-NUTCLIP, U-NUT
-
300708-626 BRKT, MTG-COIL-W/BUSHINGBRKT, MTG-COIL-W/BUSHING
-
310902-034 COIL, IGNITION - ASSEMBLY (INC. 32)COIL, IGNITION - ASSEMBLY (INC. 32)
-
323006-367 ...CAP, SPARK PLUG - NGK TB05EMD...CAP, SPARK PLUG - NGK TB05EMD
-
338468-640 SCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLK
-
348468-650 SCREW, MACH-TSPNH M6X1.0X50 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X50 CL8.8 BLK
-
351707-570 SUPPORT, STEERINGSUPPORT, STEERING
-
361707-566 SPAR, REAR - RIGHT - BLACKSPAR, REAR - RIGHT - BLACK
-
375706-225 BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 38-39)BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 38-39)
-
386606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE...BRACKET, HOLD-DOWN - SEAT-BASE
-
398060-484 ...RIVET, BLIND-DH SS53 ZINC...RIVET, BLIND-DH SS53 ZINC
