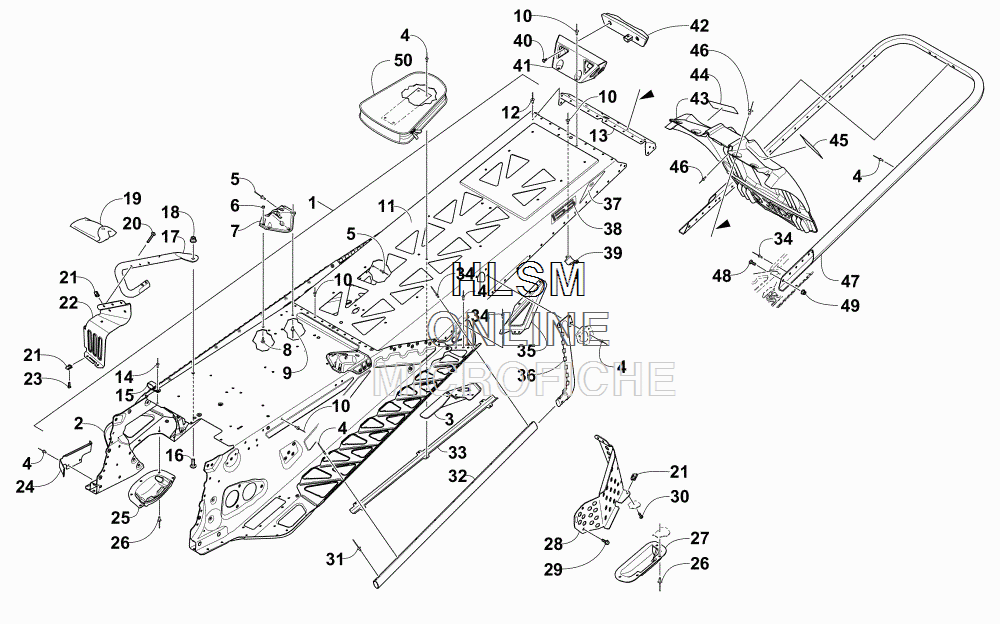

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 6000 153 (GREEN) [S2015M6DE3USG] - 2015 года выпуска
-
№АртикулНазвание
-
-1707-945 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12707-285 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
22707-248 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
31607-342 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
31607-343 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
48060-686 ...RIVET, BLIND-DH SS64 ZINC...RIVET, BLIND-DH SS64 ZINC
-
51623-206 ...RIVET, 3/16 HUCK-M9...RIVET, 3/16 HUCK-M9
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET, 3/16 HUCK-M5...RIVET, 3/16 HUCK-M5
-
108060-682 ...RIVET, BLIND-DH SS62 ZINC...RIVET, BLIND-DH SS62 ZINC
-
110607-572 ...TUNNEL, REAR-153"...TUNNEL, REAR-153"
-
128060-484 ...RIVET, BLIND-DH SS53 ZINC...RIVET, BLIND-DH SS53 ZINC
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
148061-686 RIVET, BLIND-LF SS64 ZINCRIVET, BLIND-LF SS64 ZINC
-
151623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
171707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
171707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
188427-802 NUT, LOCKNUT, LOCK
-
190744-081 KIT, TOOLKIT, TOOL
-
208468-535 SCREW, MACHINESCREW, MACHINE
-
211623-637 CLIP, U-NUTCLIP, U-NUT
-
220607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
220607-997 FOOTREST - LEFTFOOTREST - LEFT
-
238470-516 SCREW, MACHINESCREW, MACHINE
-
240608-705 BRACKET, ROUTING - OIL LINEBRACKET, ROUTING - OIL LINE
-
251607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
268061-708 RIVET, BLIND-LF SS66 BLACKRIVET, BLIND-LF SS66 BLACK
-
270607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
281607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
298408-613 SCREW, CAPSCREW, CAP
-
308470-520 SCREW, MACHINESCREW, MACHINE
-
311623-130 RIVET, 3/16 HUCK-M4RIVET, 3/16 HUCK-M4
-
321607-092 ROLL, TUNNELROLL, TUNNEL
-
330630-307 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
341623-241 RIVET, 3/16 HUCK-M6RIVET, 3/16 HUCK-M6
-
351607-344 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
351607-345 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
361607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
361607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
381621-458 DECAL, TUNNEL - "153"DECAL, TUNNEL - "153"
-
390630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
408470-510 SCREW, MACHINESCREW, MACHINE
-
410630-328 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
420609-898 TAILLIGHT, REDTAILLIGHT, RED
-
436606-394 SNOWFLAPSNOWFLAP
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
455611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
468061-706 RIVET,BLIND-LF SS64 BLACKRIVET,BLIND-LF SS64 BLACK
-
472707-592 BUMPER, REAR - 153" - PAINTED TEAM ARCTIC GREENBUMPER, REAR - 153" - PAINTED TEAM ARCTIC GREEN
-
488476-620 SCREW, MACHINESCREW, MACHINE
-
498427-602 NUT, LOCKNUT, LOCK
-
506606-615 BAG, BELTBAG, BELT
