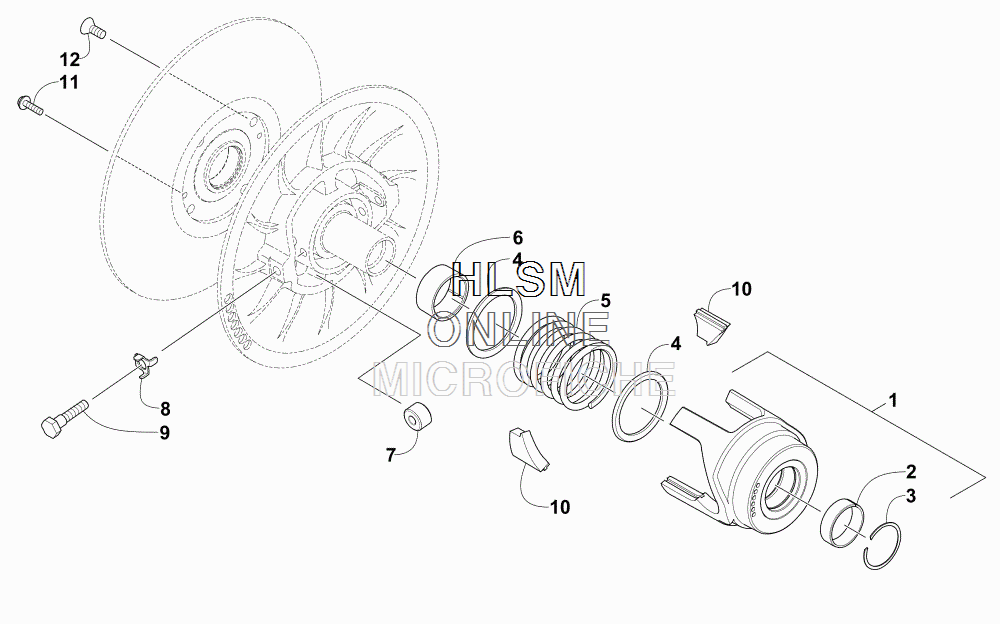

DRIVEN CLUTCH для Arctic Cat M 6000 153 (GREEN) [S2015M6DE3USG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    0726-359 CLUTCH, DRIVEN - ASSEMBLY
    CLUTCH, DRIVEN - ASSEMBLY
  • 1
    0748-770 CAM,DRIVEN-36 MACH (INC. 2-3)
    CAM,DRIVEN-36 MACH (INC. 2-3)
  • 1
    0748-772 CAM,DRIVEN-42/40 MACH (0-5,000 FT ALT.) (INC. 2-3)
    CAM,DRIVEN-42/40 MACH (0-5,000 FT ALT.) (INC. 2-3)
  • 2
    0648-831 ...BEARING
    ...BEARING
  • 3
    0648-811 ...RING, SNAP
    ...RING, SNAP
  • 4
    0648-810 SEAT, SPRING
    SEAT, SPRING
  • 5
    0648-838 SPRING, DRIVEN-150-250 BROWN
    SPRING, DRIVEN-150-250 BROWN
  • 5
    0648-813 SPRING, DRIVEN-202-284 BLUE (0-5,000 FT ALT.)
    SPRING, DRIVEN-202-284 BLUE (0-5,000 FT ALT.)
  • 6
    0648-827 SPACER
    SPACER
  • 7
    0648-824 ROLLER, DRIVEN-TORLON
    ROLLER, DRIVEN-TORLON
  • 8
    0648-800 WASHER, TAB
    WASHER, TAB
  • 9
    0648-799 SCREW, SHOULDER
    SCREW, SHOULDER
  • 10
    0648-826 CAM,BACK-2 STRK
    CAM,BACK-2 STRK
  • 11
    0623-684 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    2623-050 SCREW, MACHINE
    SCREW, MACHINE
