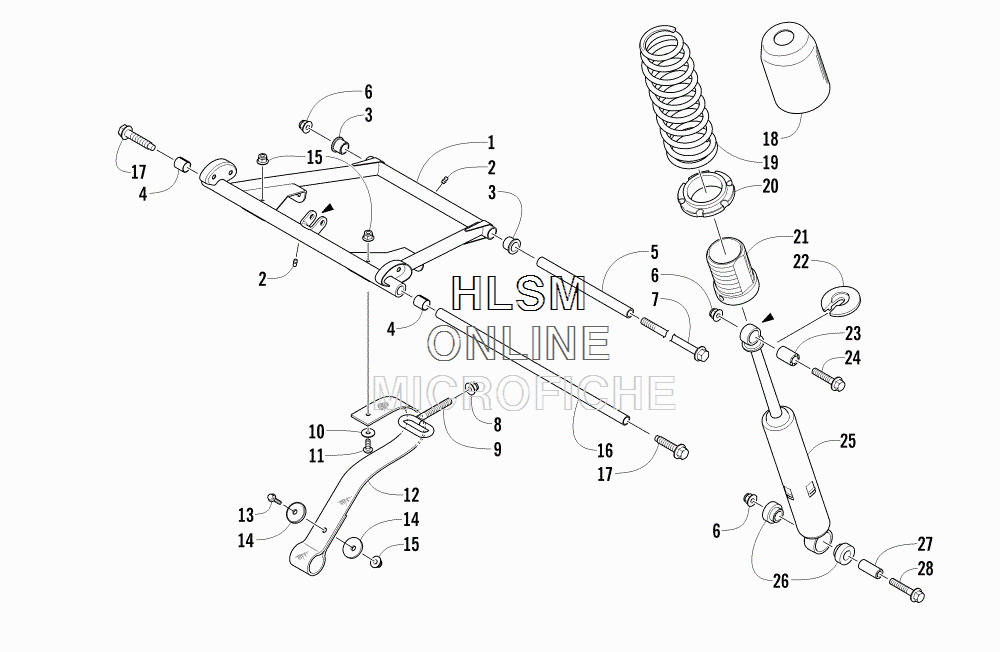

SUSPENSION REAR - FRONT ARM ASSEMBLY для Arctic Cat BEARCAT 5000 XT (INTERNATIONAL) (BLUE) [S2015BCNWTOSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2704-019 ARM, FRONT SUSPENSION BLACK (INC. 2-4)
    ARM, FRONT SUSPENSION BLACK (INC. 2-4)
  • 2
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 3
    0104-386 ...BUSHING, REAR ARM
    ...BUSHING, REAR ARM
  • 4
    0603-083 ...BEARING, GARLOCK 10DU12
    ...BEARING, GARLOCK 10DU12
  • 5
    3604-434 AXLE
    AXLE
  • 6
    8427-002 NUT, LOCK
    NUT, LOCK
  • 7
    2623-078 SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI
    SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI
  • 8
    8047-486 NUT, LOCK
    NUT, LOCK
  • 9
    0704-256 ADJUSTER, FRONT ARM
    ADJUSTER, FRONT ARM
  • 10
    8450-109 WASHER
    WASHER
  • 11
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    3604-615 STRAP, LIMITER-FRONT-484X38MM
    STRAP, LIMITER-FRONT-484X38MM
  • 13
    8408-635 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    0623-875 WASHER
    WASHER
  • 15
    8427-602 NUT, LOCK
    NUT, LOCK
  • 16
    3604-604 AXLE,FRONT ARM-UPPER
    AXLE,FRONT ARM-UPPER
  • 17
    1623-836 SCREW, CAP
    SCREW, CAP
  • 18
    0604-590 COVER, SHOCK
    COVER, SHOCK
  • 19
    1703-072 SPRING, COMPRESSION BLACK
    SPRING, COMPRESSION BLACK
  • 20
    0603-259 NUT, RETAINER
    NUT, RETAINER
  • 21
    0603-147 SLEEVE, THREADED
    SLEEVE, THREADED
  • 22
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 23
    3604-273 AXLE
    AXLE
  • 24
    8408-050 SCREW, CAP
    SCREW, CAP
  • 25
    1604-369 SHOCK ABSORBER
    SHOCK ABSORBER
  • 26
    1604-384 BUSHING
    BUSHING
  • 27
    2603-544 AXLE, INNER - LOWER A-ARM - FRONT
    AXLE, INNER - LOWER A-ARM - FRONT
  • 28
    8408-065 SCREW, CAP-HFH M10X1.25X65 CL8.8 Z & Y
    SCREW, CAP-HFH M10X1.25X65 CL8.8 Z & Y
