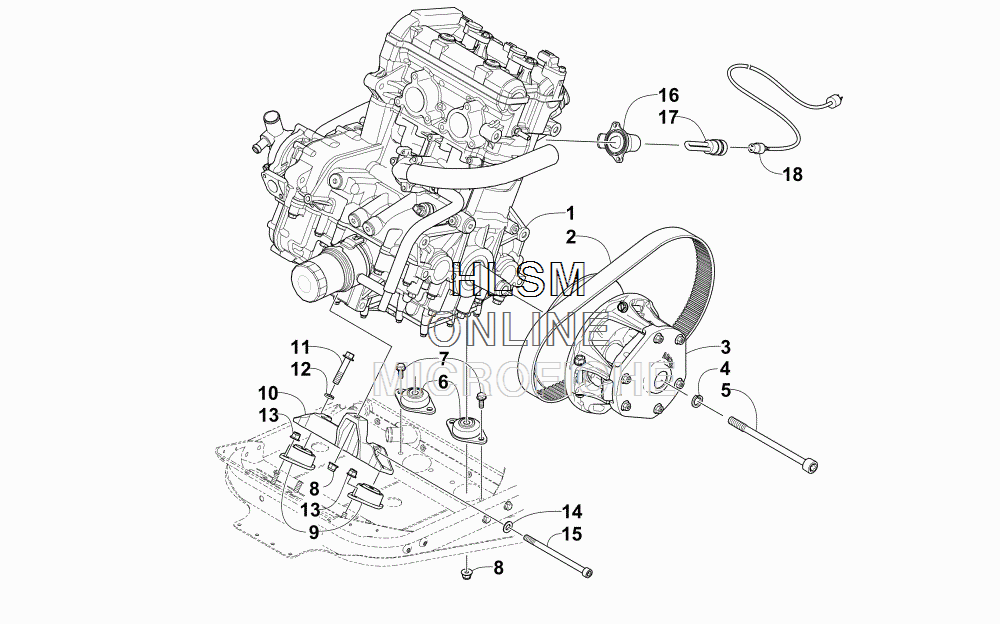

ENGINE AND RELATED PARTS для Arctic Cat BEARCAT 5000 XT (INTERNATIONAL) (BLUE) [S2015BCNWTOSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0762-583 LONG BLOCK,ENGINE-1100NA
    LONG BLOCK,ENGINE-1100NA
  • 2
    0627-047 BELT, DRIVE-S-3C-1.448"WX43.547"OC-DC
    BELT, DRIVE-S-3C-1.448"WX43.547"OC-DC
  • 3
    0746-435 CLUTCH,DRIVE-UNCAL-8.25 33MM/S
    CLUTCH,DRIVE-UNCAL-8.25 33MM/S
  • 4
    1623-649 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 5
    1623-620 BOLT, DRIVE CLUTCH - M12 X 1.25 X 176
    BOLT, DRIVE CLUTCH - M12 X 1.25 X 176
  • 6
    0608-590 MOUNT, ENGINE - REAR
    MOUNT, ENGINE - REAR
  • 7
    1623-437 SCREW, CAP
    SCREW, CAP
  • 8
    8427-002 NUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
    NUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
  • 9
    0608-457 MOUNT, ENGINE - FRONT
    MOUNT, ENGINE - FRONT
  • 10
    0708-552 BRACKET, MOUNTING - ENGINE
    BRACKET, MOUNTING - ENGINE
  • 11
    8408-020 SCREW, CAP-HFH M10X1.25X20 CL8.8 Z & Y
    SCREW, CAP-HFH M10X1.25X20 CL8.8 Z & Y
  • 12
    8451-182 WASHER, LOCK
    WASHER, LOCK
  • 13
    8427-802 NUT, LOCK
    NUT, LOCK
  • 14
    8450-157 WASHER
    WASHER
  • 15
    1623-925 SCREW, CAP
    SCREW, CAP
  • 16
    0613-012 ADAPTER, HEATER ELEMENT
    ADAPTER, HEATER ELEMENT
  • 17
    0609-877 ELEMENT, HEATER
    ELEMENT, HEATER
  • 18
    0709-081 HARNESS, HEATER ELEMENT
    HARNESS, HEATER ELEMENT
