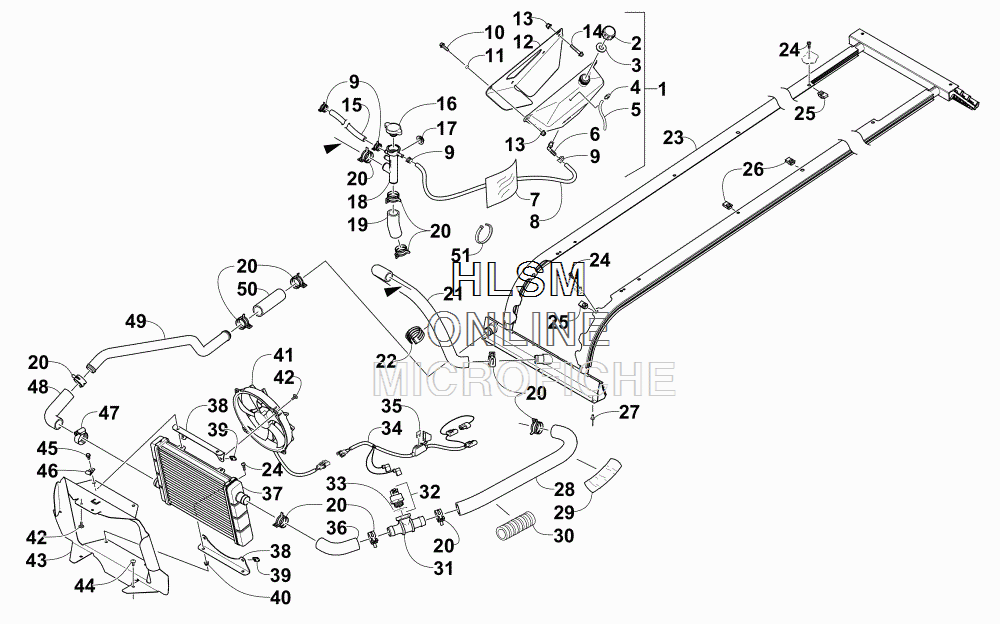

COOLING ASSEMBLY для Arctic Cat BEARCAT 5000 XT GS (ORANGE) [S2015BCNWGUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0713-119 TANK, COOLANT (INC. 2-8 AND TWO NO. 9)
    TANK, COOLANT (INC. 2-8 AND TWO NO. 9)
  • 2
    0670-035 ...CAP, COOLANT TANK
    ...CAP, COOLANT TANK
  • 3
    1623-834 ...GASKET
    ...GASKET
  • 4
    2670-132 ...FITTING, VENT
    ...FITTING, VENT
  • 5
    0610-010 ...HOSE, VENT-(25 FT)
    ...HOSE, VENT-(25 FT)
  • 6
    0613-130 ...FITTING, ELBOW
    ...FITTING, ELBOW
  • 7
    0619-206 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 8
    0610-935 ...HOSE, VENT - (5 FT)
    ...HOSE, VENT - (5 FT)
  • 9
    1623-278 ......CLAMP, HOSE
    ......CLAMP, HOSE
  • 10
    8408-620 SCREW, CAP
    SCREW, CAP
  • 11
    5606-560 SPACER
    SPACER
  • 12
    0613-069 BRACKET, MOUNTING - COOLANT TANK
    BRACKET, MOUNTING - COOLANT TANK
  • 13
    8427-602 NUT, LOCK
    NUT, LOCK
  • 14
    8408-635 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    0610-789 HOSE, COOLANT - BYPASS
    HOSE, COOLANT - BYPASS
  • 16
    2606-284 CAP
    CAP
  • 17
    0423-357 NUT, STAMPED
    NUT, STAMPED
  • 18
    1670-998 NECK, FILLER
    NECK, FILLER
  • 19
    0610-753 HOSE, COOLANT - COOLANT TANK/ENGINE
    HOSE, COOLANT - COOLANT TANK/ENGINE
  • 20
    1623-322 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0610-784 HOSE, COOLANT - HEAT EXCHANGER
    HOSE, COOLANT - HEAT EXCHANGER
  • 22
    0623-540 TIE, CABLE - TRIPLE
    TIE, CABLE - TRIPLE
  • 23
    4706-111 EXCHANGER, HEAT
    EXCHANGER, HEAT
  • 24
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 26
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 27
    8060-686 RIVET
    RIVET
  • 28
    0610-925 HOSE, COOLANT
    HOSE, COOLANT
  • 29
    0610-790 LOOM, COOLANT HOSE - (5 FT)
    LOOM, COOLANT HOSE - (5 FT)
  • 30
    1619-354 CONDUIT, FLEXIBLE - (5 FT)
    CONDUIT, FLEXIBLE - (5 FT)
  • 31
    0613-110 T-FITTING
    T-FITTING
  • 32
    0713-190 SENSOR, ENGINE COOLANT TEMPERATURE - ASSEMBLY (INC. 33)
    SENSOR, ENGINE COOLANT TEMPERATURE - ASSEMBLY (INC. 33)
  • 33
    0613-212 ...WASHER
    ...WASHER
  • 34
    1686-691 HARNESS, EXTENSION - FAN/SENSOR (INC. 35)
    HARNESS, EXTENSION - FAN/SENSOR (INC. 35)
  • 35
    0430-031 ...FUSE - (15 AMP)
    ...FUSE - (15 AMP)
  • 36
    0610-865 HOSE, COOLANT - THERMOSTAT/COOLANT TUBE
    HOSE, COOLANT - THERMOSTAT/COOLANT TUBE
  • 37
    0613-074 RADIATOR
    RADIATOR
  • 38
    0613-066 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
  • 39
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 40
    8424-502 NUT
    NUT
  • 41
    0613-075 FAN, COOLING
    FAN, COOLING
  • 42
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 43
    0613-065 SHROUD, RADIATOR
    SHROUD, RADIATOR
  • 44
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 45
    8408-512 SCREW, CAP
    SCREW, CAP
  • 46
    3008-040 CLAMP, ROUTING
    CLAMP, ROUTING
  • 47
    1623-092 CLAMP, HOSE
    CLAMP, HOSE
  • 48
    0610-906 HOSE, COOLANT
    HOSE, COOLANT
  • 49
    0613-103 TUBE, COOLANT
    TUBE, COOLANT
  • 50
    0610-895 HOSE, COOLANT
    HOSE, COOLANT
  • 51
    0123-788 TIE, CABLE - (8 IN.)
    TIE, CABLE - (8 IN.)
