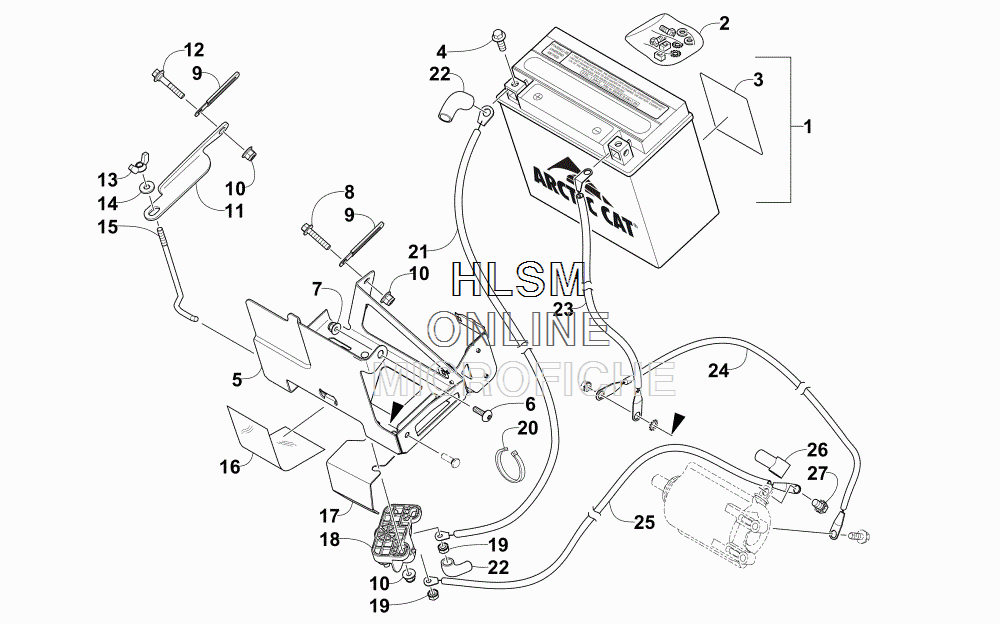

BATTERY AND TRAY ASSEMBLY для Arctic Cat BEARCAT 5000 XT GS (ORANGE) [S2015BCNWGUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-406 BATTERY, SEALED - YTX20 - ASSEMBLY (INC. 2-3)
    BATTERY, SEALED - YTX20 - ASSEMBLY (INC. 2-3)
  • 2
    0445-082 ...KIT, HARDWARE
    ...KIT, HARDWARE
  • 3
    0645-430 ...DECAL, WARNING
    ...DECAL, WARNING
  • 4
    8408-616 SCREW, CAP
    SCREW, CAP
  • 5
    0745-348 TRAY, BATTERY
    TRAY, BATTERY
  • 6
    8476-816 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    8427-802 NUT, LOCK
    NUT, LOCK
  • 8
    8408-630 SCREW, CAP
    SCREW, CAP
  • 9
    1623-984 CLAMP, WIRE - (76.14MM) LG W/6.25 HOLE
    CLAMP, WIRE - (76.14MM) LG W/6.25 HOLE
  • 10
    8427-602 NUT, LOCK
    NUT, LOCK
  • 11
    0745-317 BRACKET, HOLD-DOWN - BATTERY
    BRACKET, HOLD-DOWN - BATTERY
  • 12
    1623-725 SCREW, SHOULDER
    SCREW, SHOULDER
  • 13
    0423-716 NUT, WING
    NUT, WING
  • 14
    8050-217 WASHER
    WASHER
  • 15
    0745-329 ROD, HOLD-DOWN - BATTERY
    ROD, HOLD-DOWN - BATTERY
  • 16
    0619-206 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 17
    0645-706 SHIELD,HEAT-SOLENOID
    SHIELD,HEAT-SOLENOID
  • 18
    0445-092 SOLENOID, STARTER RELAY
    SOLENOID, STARTER RELAY
  • 19
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 20
    0123-788 TIE, CABLE - (8 IN.)
    TIE, CABLE - (8 IN.)
  • 21
    0645-636 CABLE, BATTERY/SOLENOID (INC. 22)
    CABLE, BATTERY/SOLENOID (INC. 22)
  • 22
    0645-521 ...BOOT, TERMINAL - BATTERY
    ...BOOT, TERMINAL - BATTERY
  • 23
    0645-586 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 24
    0645-601 CABLE, STARTER-TO-GROUND
    CABLE, STARTER-TO-GROUND
  • 25
    0645-600 CABLE, SOLENOID/STARTER (INC. 26)
    CABLE, SOLENOID/STARTER (INC. 26)
  • 26
    0645-019 ...BOOT, TERMINAL
    ...BOOT, TERMINAL
  • 27
    1623-451 SCREW, CAP W/WASHER
    SCREW, CAP W/WASHER
