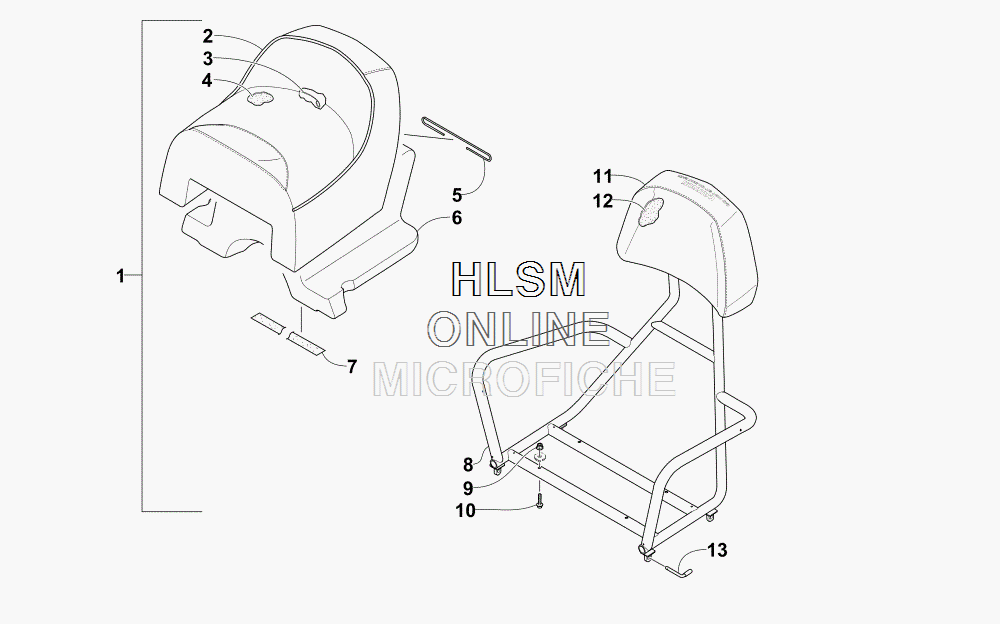

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat BEARCAT 2000 XTE (INTERNATIONAL) (BLACK) [S2015BCDWEOSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-784 SEAT, PASSENGER - ASSEMBLY (INC. 2-12)
    SEAT, PASSENGER - ASSEMBLY (INC. 2-12)
  • 2
    4706-651 ...COVER, PASSENGER SEAT (INC. 3)
    ...COVER, PASSENGER SEAT (INC. 3)
  • 3
    5606-378 ......WIRE, SEAT
    ......WIRE, SEAT
  • 4
    4706-121 ...FOAM, SEAT
    ...FOAM, SEAT
  • 5
    5606-380 ...WIRE, SEAT
    ...WIRE, SEAT
  • 6
    5606-278 ...BASE, SEAT
    ...BASE, SEAT
  • 7
    6990-283 ...VELCRO - (6.5 FT)
    ...VELCRO - (6.5 FT)
  • 8
    4706-865 ...FRAME, SEAT
    ...FRAME, SEAT
  • 9
    8427-602 ...NUT, LOCK
    ...NUT, LOCK
  • 10
    8408-640 ...SCREW, CAP
    ...SCREW, CAP
  • 11
    4706-250 ...COVER, BACKREST
    ...COVER, BACKREST
  • 12
    5606-718 ...FOAM, BACKREST
    ...FOAM, BACKREST
  • 13
    0541-447 PINS,SPEEDRACK-SS-ASSY
    PINS,SPEEDRACK-SS-ASSY
