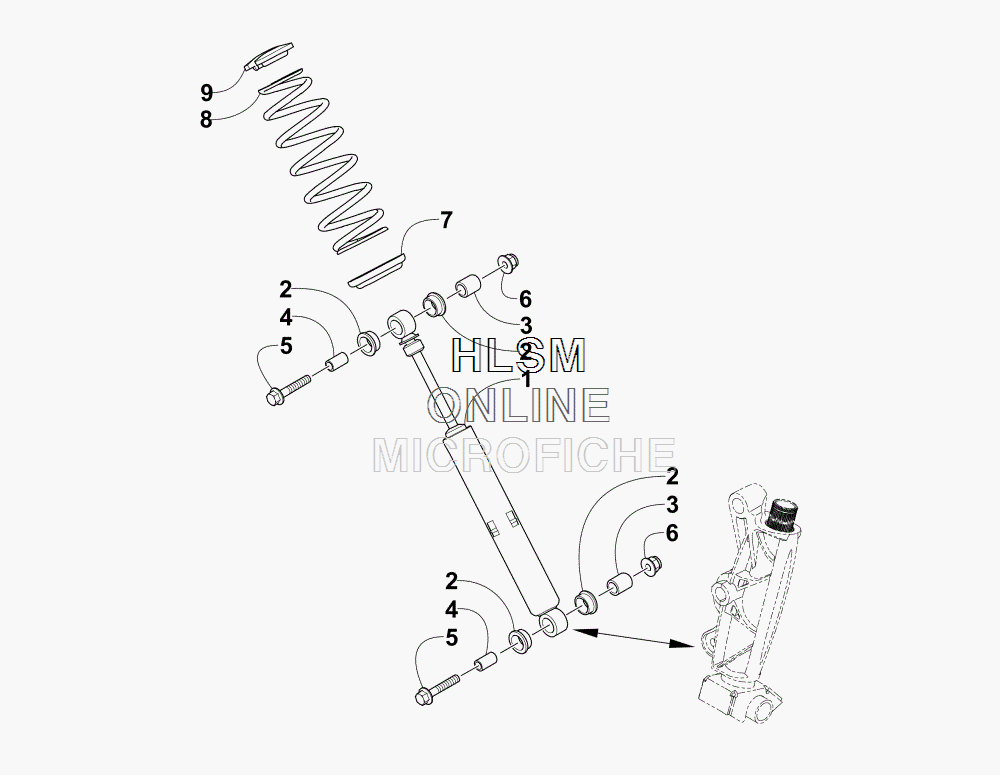

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat BEARCAT 2000 XTE (INTERNATIONAL) (BLACK) [S2015BCDWEOSB] - 2015 года выпуска
-
№АртикулНазвание
-
12603-799 SHOCK, SKI (INC. 2-3)SHOCK, SKI (INC. 2-3)
-
21604-262 ...BUSHING...BUSHING
-
31604-397 ...SLEEVE, EYELET - INNER - .950...SLEEVE, EYELET - INNER - .950
-
43604-109 SLEEVESLEEVE
-
58408-055 SCREW, CAPSCREW, CAP
-
68427-002 NUT, LOCKNUT, LOCK
-
72603-719 RETAINER, SPRINGRETAINER, SPRING
-
83703-282 SPRING, COMPRESSION - (WHITE)SPRING, COMPRESSION - (WHITE)
-
91603-889 RETAINER, SPRINGRETAINER, SPRING
