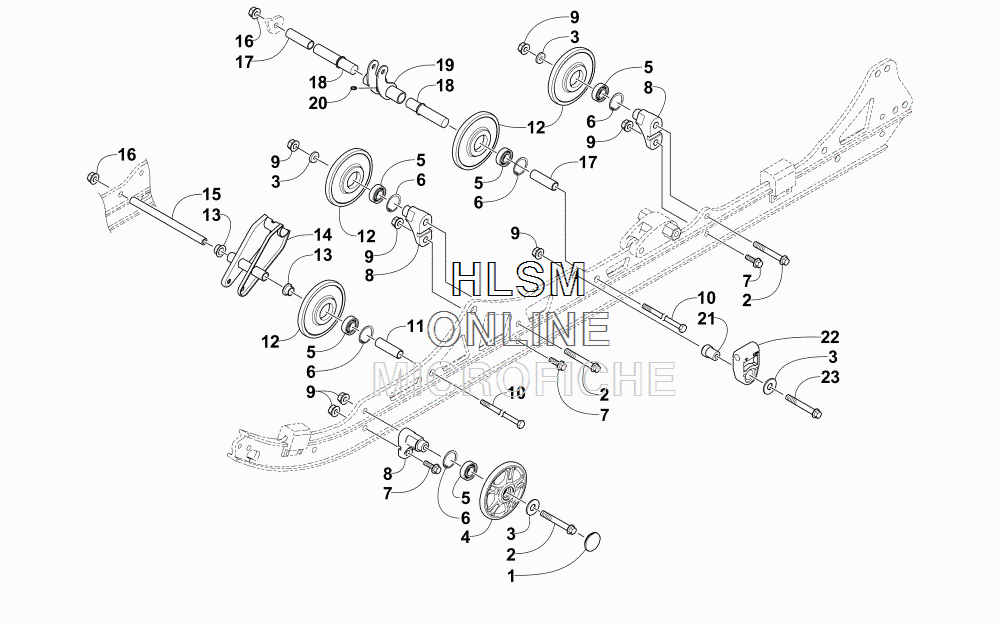

IDLER WHEEL ASSEMBLY для Arctic Cat BEARCAT 2000 XTE (BLACK) [S2015BCDWEUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1604-952 CAP, IDLER WHEEL
    CAP, IDLER WHEEL
  • 2
    8408-880 SCREW, CAP
    SCREW, CAP
  • 3
    8450-133 WASHER
    WASHER
  • 4
    3604-299 WHEEL, IDLER - (WHITE) (INC. 5-6)
    WHEEL, IDLER - (WHITE) (INC. 5-6)
  • 5
    3604-033 ......BEARING
    ......BEARING
  • 6
    0623-946 ......RING, RETAINING
    ......RING, RETAINING
  • 7
    8408-830 SCREW, CAP
    SCREW, CAP
  • 8
    3604-004 BLOCK, MOUNTING - IDLER WHEEL
    BLOCK, MOUNTING - IDLER WHEEL
  • 9
    8427-802 NUT, LOCK
    NUT, LOCK
  • 10
    2623-078 SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI
    SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI
  • 11
    3604-432 SPACER
    SPACER
  • 12
    3604-039 WHEEL, IDLER (INC. 5-6)
    WHEEL, IDLER (INC. 5-6)
  • 13
    3604-430 SPACER
    SPACER
  • 14
    1704-770 BRACKET, MOUNTING - FRONT SHOCK
    BRACKET, MOUNTING - FRONT SHOCK
  • 15
    3604-429 AXLE
    AXLE
  • 16
    8427-002 NUT, LOCK
    NUT, LOCK
  • 17
    3604-501 SPACER
    SPACER
  • 18
    3604-502 AXLE
    AXLE
  • 19
    1704-674 PIVOT, SHOCK (INC. 20)
    PIVOT, SHOCK (INC. 20)
  • 20
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 21
    3604-204 BLOCK, SLIDE
    BLOCK, SLIDE
  • 22
    2604-516 SLIDE, SPRING
    SLIDE, SPRING
  • 23
    8408-855 SCREW, CAP
    SCREW, CAP
