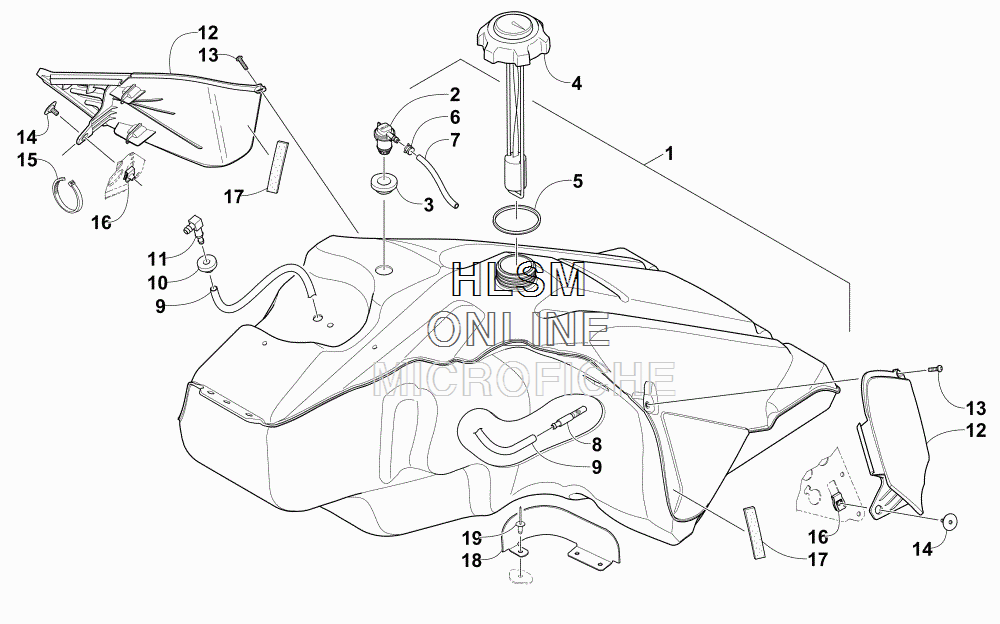

GAS TANK ASSEMBLY для Arctic Cat BEARCAT 2000 XTE (BLACK) [S2015BCDWEUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2670-029 TANK, GAS - ASSEMBLY (INC. 2-3)
    TANK, GAS - ASSEMBLY (INC. 2-3)
  • 2
    1670-787 ...VALVE, CHECK
    ...VALVE, CHECK
  • 3
    1670-822 ...GROMMET
    ...GROMMET
  • 4
    0670-427 CAP, GAS TANK - ASSEMBLY (INC. 5)
    CAP, GAS TANK - ASSEMBLY (INC. 5)
  • 5
    0109-733 ...GASKET, GAS TANK CAP
    ...GASKET, GAS TANK CAP
  • 6
    1623-233 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    6101-009 HOSE, GASLINE - (50 FT)
    HOSE, GASLINE - (50 FT)
  • 7
    6101-001 HOSE, GASLINE - (100 FT)
    HOSE, GASLINE - (100 FT)
  • 8
    0510-358 STRAINER, GAS TANK
    STRAINER, GAS TANK
  • 9
    0610-815 HOSE, GASLINE - (100 FT)
    HOSE, GASLINE - (100 FT)
  • 9
    0610-814 HOSE, GASLINE - (50 FT)
    HOSE, GASLINE - (50 FT)
  • 10
    1670-325 GROMMET
    GROMMET
  • 11
    2670-020 FITTING, ELBOW
    FITTING, ELBOW
  • 12
    4706-746 KNEE PAD, RIGHT
    KNEE PAD, RIGHT
  • 12
    4706-747 KNEE PAD, LEFT
    KNEE PAD, LEFT
  • 13
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 15
    0123-788 TIE, CABLE - (8 IN.)
    TIE, CABLE - (8 IN.)
  • 16
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 17
    0619-946 TAPE,DOUBLE COATED-ACYLIC FOAM (1 LENGTH)
    TAPE,DOUBLE COATED-ACYLIC FOAM (1 LENGTH)
  • 18
    6606-069 BRACKET, GAS TANK
    BRACKET, GAS TANK
  • 19
    8060-686 RIVET
    RIVET
