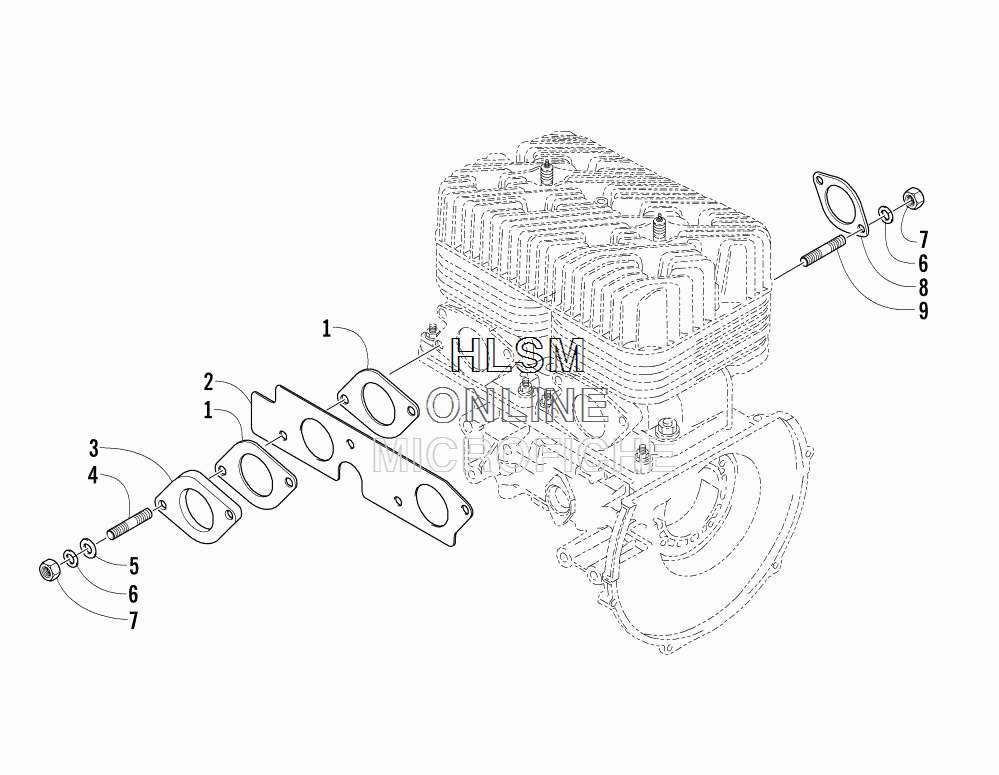

INTAKE ASSEMBLY для Arctic Cat BEARCAT 2000 XT (RUSSIAN) (ORANGE) [S2015BCDWTRUO] - 2015 года выпуска
-
№АртикулНазвание
-
13006-615 GASKET,INTAKE MANIFOLD-02 570 L/CGASKET,INTAKE MANIFOLD-02 570 L/C
-
23006-466 SHIELD, HEATSHIELD, HEAT
-
33006-075 INSULATOR, INTAKEINSULATOR, INTAKE
-
43007-481 BOLT,STUDBOLT,STUD
-
53007-418 WASHERWASHER
-
63007-417 WASHER, LOCKWASHER, LOCK
-
73007-416 NUTNUT
-
83003-503 GASKET,EXHAUST NON-ASBESTOSGASKET,EXHAUST NON-ASBESTOS
-
93007-419 STUD BOLTSTUD BOLT
