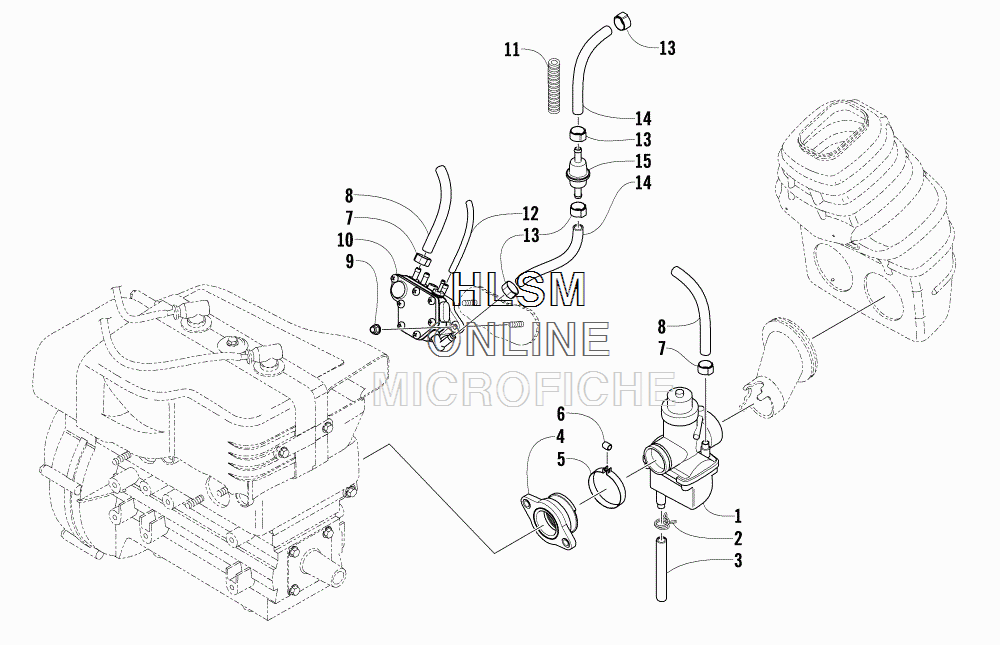

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat BEARCAT 2000 XT (RUSSIAN) (ORANGE) [S2015BCDWTRUO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2670-155 CARBURETOR ASSEMBLY - VM34-631
    CARBURETOR ASSEMBLY - VM34-631
  • 2
    0623-652 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    0610-442 HOSE, DRAIN (1.5")
    HOSE, DRAIN (1.5")
  • 4
    0115-544 FLANGE,CARB VM32-454 (INC. 5)
    FLANGE,CARB VM32-454 (INC. 5)
  • 5
    0109-709 ...CLAMP
    ...CLAMP
  • 6
    0670-210 SPACER
    SPACER
  • 7
    0610-415 CLAMP, HOSE
    CLAMP, HOSE
  • 8
    0610-772 HOSE, GASLINE - (25 FT)
    HOSE, GASLINE - (25 FT)
  • 9
    8427-602 NUT, LOCK
    NUT, LOCK
  • 10
    1670-262 PUMP, FUEL
    PUMP, FUEL
  • 11
    0619-776 CONDUIT - (5 FT)
    CONDUIT - (5 FT)
  • 12
    0610-007 HOSE, IMPULSE 3/16 25
    HOSE, IMPULSE 3/16 25
  • 13
    0610-563 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    0610-971 HOSE, FUEL - IN TANK - (10 FT)
    HOSE, FUEL - IN TANK - (10 FT)
  • 15
    2670-346 FILTER,FUEL-INLINE-5/16
    FILTER,FUEL-INLINE-5/16
