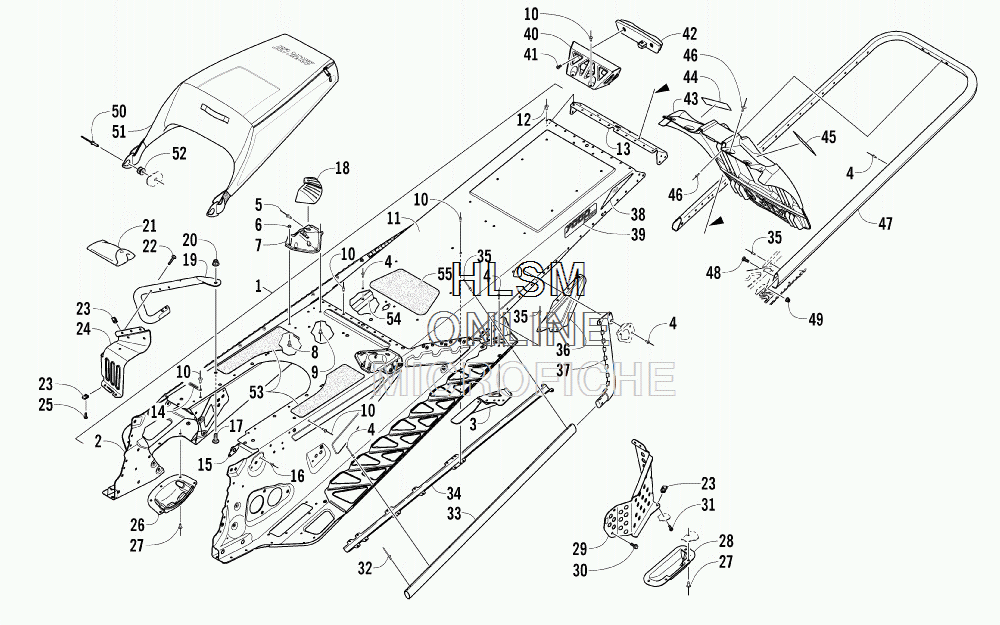

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 7000 LXR - BLACK [S2014XFULXUSB] - 2014 года выпуска
-
№АртикулНазвание
-
-2707-083 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12707-383 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
21707-952 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
31607-332 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
31607-333 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
48060-686 ......RIVET......RIVET
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
111607-395 ...TUNNEL, REAR...TUNNEL, REAR
-
128060-484 ...RIVET...RIVET
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
141623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
150608-631 PLATE, RETAININGPLATE, RETAINING
-
168060-688 RIVETRIVET
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
186606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
186606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
191707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
191707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
208427-802 NUT, LOCKNUT, LOCK
-
210744-064 KIT, TOOLKIT, TOOL
-
228468-535 SCREW, MACHINESCREW, MACHINE
-
231623-637 CLIP, U-NUTCLIP, U-NUT
-
240607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
240607-997 FOOTREST - LEFTFOOTREST - LEFT
-
258470-516 SCREW, MACHINESCREW, MACHINE
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
291607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
308408-613 SCREW, CAPSCREW, CAP
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
321623-130 RIVETRIVET
-
331607-092 ROLL, TUNNELROLL, TUNNEL
-
340630-316 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
351623-241 RIVETRIVET
-
361607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
361607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
371607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
371607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
380621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
390621-640 DECAL, TUNNEL - "7000 LXR" - RIGHTDECAL, TUNNEL - "7000 LXR" - RIGHT
-
390621-641 DECAL, TUNNEL - "7000 LXR" - LEFTDECAL, TUNNEL - "7000 LXR" - LEFT
-
400630-279 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
418470-512 SCREW, MACHINESCREW, MACHINE
-
420609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
436606-394 SNOWFLAPSNOWFLAP
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
455611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
468061-706 RIVETRIVET
-
471707-818 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
488476-620 SCREW, MACHINESCREW, MACHINE
-
498427-602 NUT, LOCKNUT, LOCK
-
508060-630 RIVETRIVET
-
516606-600 SADDLEBAGSADDLEBAG
-
521623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
536606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
536606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
541607-455 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
556606-816 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
