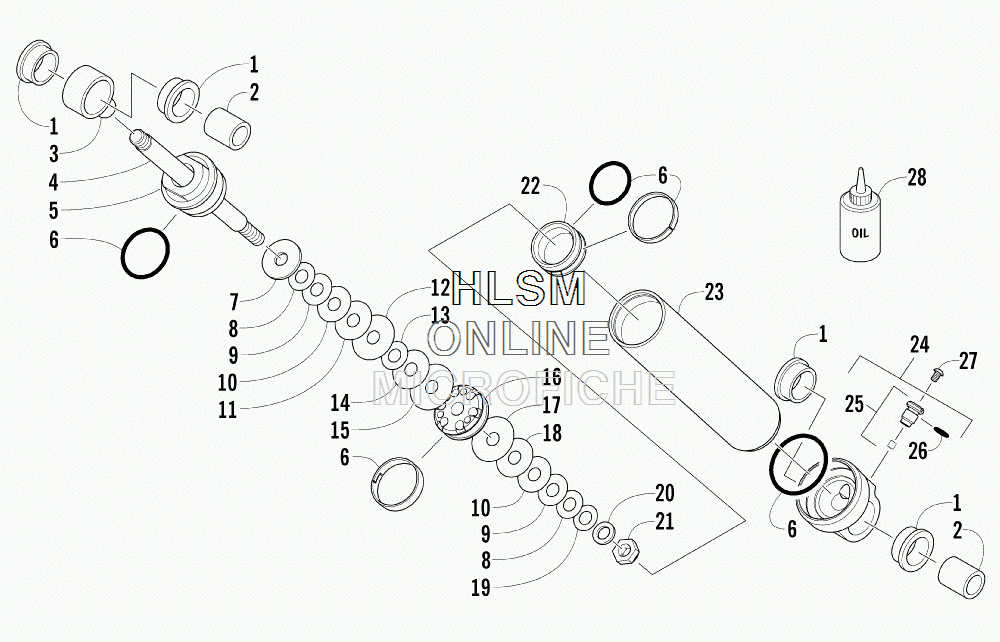

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat XF 7000 LXR - BLACK [S2014XFULXUSB] - 2014 года выпуска

  • №
    Артикул
    Название
  • -
    2704-362 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    3604-738 BUSHING
    BUSHING
  • 2
    3604-737 SLEEVE
    SLEEVE
  • 3
    3604-796 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    3604-810 ROD, SHOCK
    ROD, SHOCK
  • 5
    3604-770 END CAP, SHOCK
    END CAP, SHOCK
  • 6
    2703-980 KIT, SEAL/REBUILD
    KIT, SEAL/REBUILD
  • 7
    3604-789 WASHER, TOP OUT
    WASHER, TOP OUT
  • 8
    3603-105 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 9
    3603-115 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 10
    3603-125 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 11
    3603-145 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 12
    3603-175 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 13
    3603-102 VALVE, 0.800 X 0.006 IN.
    VALVE, 0.800 X 0.006 IN.
  • 14
    3603-144 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 15
    3603-186 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 16
    2603-018 PISTON, 0.055 IN. - ORIFICE
    PISTON, 0.055 IN. - ORIFICE
  • 17
    3603-176 VALVE, 1.250 X 0.012 IN.
    VALVE, 1.250 X 0.012 IN.
  • 18
    3603-146 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 19
    3603-095 VALVE, 0.700 X 0.010 IN.
    VALVE, 0.700 X 0.010 IN.
  • 20
    3604-775 WASHER, BACKUP
    WASHER, BACKUP
  • 21
    3604-739 NUT
    NUT
  • 22
    3604-772 PISTON, FLOATING
    PISTON, FLOATING
  • 23
    3604-811 BODY, SHOCK
    BODY, SHOCK
  • 24
    2704-257 END CAP, SHOCK - ASSEMBLY (INC. 25-26)
    END CAP, SHOCK - ASSEMBLY (INC. 25-26)
  • 25
    3604-751 ...VALVE, PRESSURE - ASSEMBLY (INC. 26)
    ...VALVE, PRESSURE - ASSEMBLY (INC. 26)
  • 26
    3604-733 ......O-RING
    ......O-RING
  • 27
    3604-750 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
