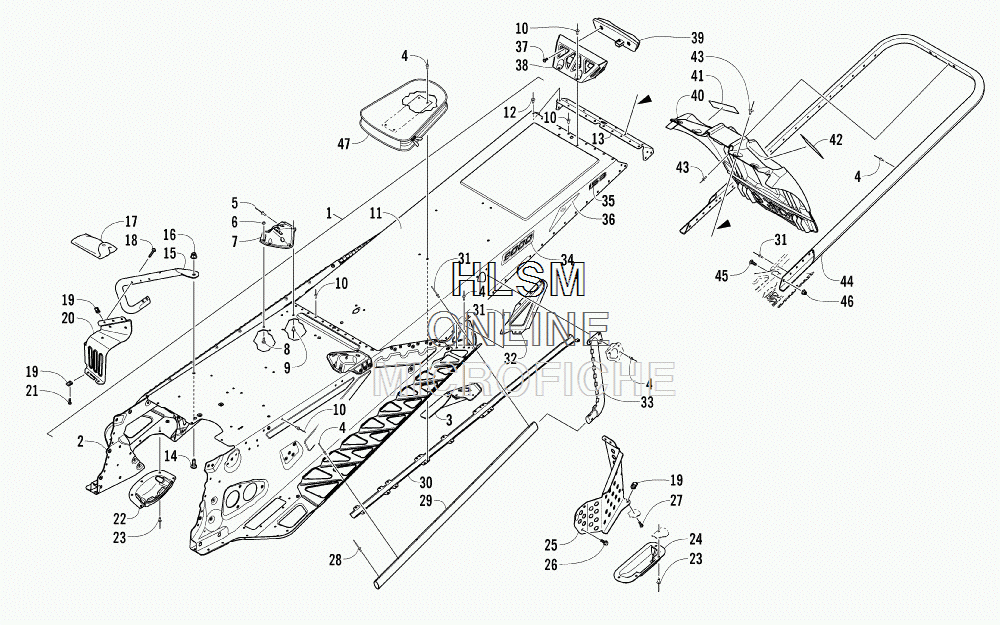

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 HCR - GREEN [S2014M8HHCUSG] - 2014 года выпуска

  • №
    Артикул
    Название
  • -
    1707-969 COMPLETE CHASSIS ASSEMBLY - GREEN
    COMPLETE CHASSIS ASSEMBLY - GREEN
  • 1
    2707-351 TUNNEL ASSEMBLY - GREEN (INC. 2-13)
    TUNNEL ASSEMBLY - GREEN (INC. 2-13)
  • 2
    2707-345 ...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)
    ...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)
  • 3
    2707-342 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
    ......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
  • 3
    2707-343 ......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
    ......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
  • 4
    8060-686 ......RIVET
    ......RIVET
  • 5
    1623-206 ...RIVET
    ...RIVET
  • 6
    8422-502 ...NUT, LOCK
    ...NUT, LOCK
  • 7
    2707-340 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
  • 7
    2707-341 ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
    ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
  • 8
    8476-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    1623-257 ...RIVET
    ...RIVET
  • 10
    8060-682 ...RIVET
    ...RIVET
  • 11
    2707-348 ...TUNNEL, REAR - GREEN
    ...TUNNEL, REAR - GREEN
  • 12
    8060-484 ...RIVET
    ...RIVET
  • 13
    2707-315 ...END CAP, TUNNEL - GREEN
    ...END CAP, TUNNEL - GREEN
  • 14
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    1707-454 SUPPORT, FOOTREST - RIGHT - BLACK
    SUPPORT, FOOTREST - RIGHT - BLACK
  • 15
    1707-455 SUPPORT, FOOTREST - LEFT - BLACK
    SUPPORT, FOOTREST - LEFT - BLACK
  • 16
    8427-802 NUT, LOCK
    NUT, LOCK
  • 17
    0744-081 KIT, TOOL
    KIT, TOOL
  • 18
    8468-536 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 20
    2707-004 FOOTREST - RIGHT - GREEN
    FOOTREST - RIGHT - GREEN
  • 20
    2707-005 FOOTREST - LEFT - GREEN
    FOOTREST - LEFT - GREEN
  • 21
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 23
    8061-708 RIVET
    RIVET
  • 24
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 25
    2707-042 SHIELD, BRAKE DISC - GREEN
    SHIELD, BRAKE DISC - GREEN
  • 26
    8408-613 SCREW, CAP
    SCREW, CAP
  • 27
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    1623-130 RIVET
    RIVET
  • 29
    2707-346 ROLL, TUNNEL - GREEN
    ROLL, TUNNEL - GREEN
  • 30
    0630-317 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 31
    1623-241 RIVET
    RIVET
  • 32
    2707-336 GUSSET, RUNNING BOARD - RIGHT - GREEN
    GUSSET, RUNNING BOARD - RIGHT - GREEN
  • 32
    2707-337 GUSSET, RUNNING BOARD - LEFT - GREEN
    GUSSET, RUNNING BOARD - LEFT - GREEN
  • 33
    2707-338 GUSSET, TUNNEL ROLL - RIGHT - GREEN
    GUSSET, TUNNEL ROLL - RIGHT - GREEN
  • 33
    2707-339 GUSSET, TUNNEL ROLL - LEFT - GREEN
    GUSSET, TUNNEL ROLL - LEFT - GREEN
  • 34
    0621-691 DECAL, TUNNEL - "8000"
    DECAL, TUNNEL - "8000"
  • 35
    0621-752 DECAL, TUNNEL - 153
    DECAL, TUNNEL - 153
  • 36
    0621-990 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 37
    8470-512 SCREW, MACHINE
    SCREW, MACHINE
  • 38
    0730-198 BRACKET, MOUNTING - TAILLIGHT - GREEN
    BRACKET, MOUNTING - TAILLIGHT - GREEN
  • 39
    0609-898 TAILLIGHT, LED
    TAILLIGHT, LED
  • 40
    6606-394 SNOWFLAP
    SNOWFLAP
  • 41
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 42
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 43
    8061-706 RIVET
    RIVET
  • 44
    1707-970 BUMPER, REAR - GREEN
    BUMPER, REAR - GREEN
  • 45
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 46
    8427-602 NUT, LOCK
    NUT, LOCK
  • 47
    6606-615 BAG, SPARE BELT
    BAG, SPARE BELT
