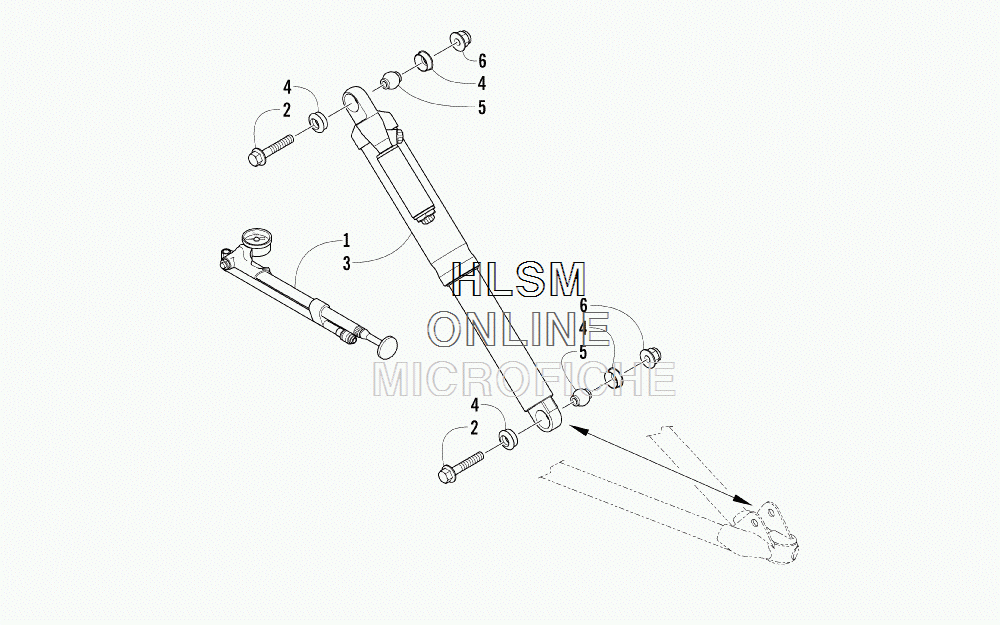

SHOCK ABSORBER ASSEMBLY для Arctic Cat M 8000 HCR - GREEN [S2014M8HHCUSG] - 2014 года выпуска
-
№АртикулНазвание
-
10641-257 PUMP, AIR - SHOCKPUMP, AIR - SHOCK
-
28413-850 SCREW, CAPSCREW, CAP
-
33703-264 SHOCK,SKI-FLOAT 2 EVOL-18.70" - RIGHTSHOCK,SKI-FLOAT 2 EVOL-18.70" - RIGHT
-
33703-265 SHOCK,SKI-FLOAT 2 EVOL-18.70" - LEFTSHOCK,SKI-FLOAT 2 EVOL-18.70" - LEFT
-
43603-260 BUSHINGBUSHING
-
53603-261 SLEEVESLEEVE
-
68437-804 NUT, LOCKNUT, LOCK
