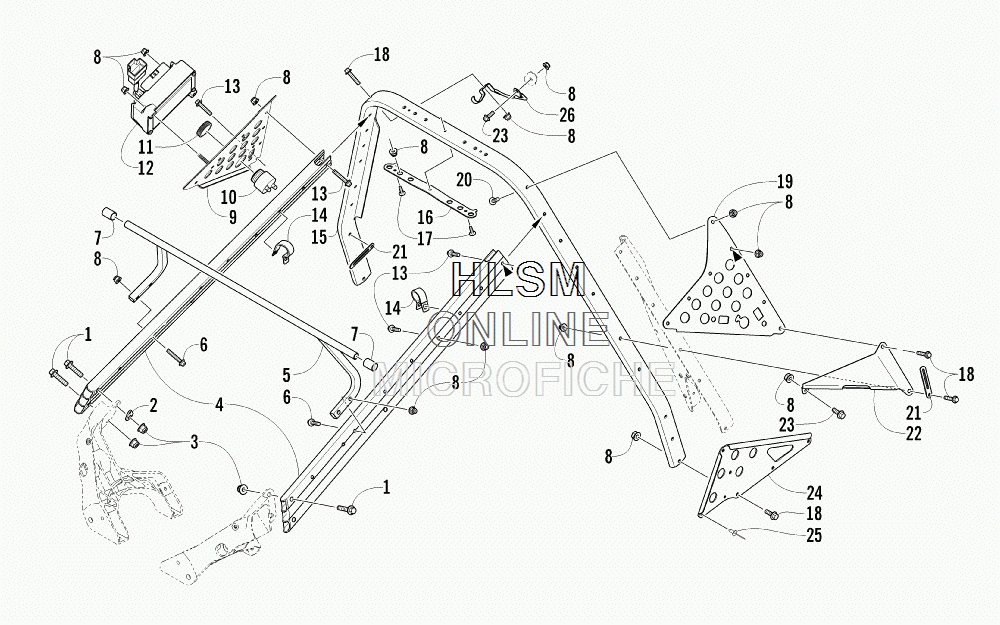

STEERING SUPPORT ASSEMBLY для Arctic Cat F5 [S2014F5CEFUSG] - 2014 года выпуска
‹-+›
-
№АртикулНазвание
-
18408-840 SCREW, CAPSCREW, CAP
-
22612-125 TAB, MOUNTING - EXHAUST SPRINGTAB, MOUNTING - EXHAUST SPRING
-
38427-802 NUT, LOCKNUT, LOCK
-
40607-814 FRAME, UPPER - FRONTFRAME, UPPER - FRONT
-
54706-356 BRACKET, SUPPORT - HEADLIGHTBRACKET, SUPPORT - HEADLIGHT
-
68408-645 SCREW, CAPSCREW, CAP
-
71623-900 SPACERSPACER
-
88427-602 NUT, LOCKNUT, LOCK
-
91707-100 GUSSET, STEERING SUPPORT - RIGHTGUSSET, STEERING SUPPORT - RIGHT
-
100630-243 ALARM, REVERSE (INC. 11)ALARM, REVERSE (INC. 11)
-
110630-017 ...RING, RETAINING...RING, RETAINING
-
120630-246 UNIT, CHASSIS CONTROLUNIT, CHASSIS CONTROL
-
138408-635 SCREW, CAPSCREW, CAP
-
140423-044 CLAMP, ROUTINGCLAMP, ROUTING
-
150605-949 SUPPORT, STEERING - ASSEMBLYSUPPORT, STEERING - ASSEMBLY
-
165606-137 PLATE, NUTPLATE, NUT
-
170623-574 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
188408-630 SCREW, CAPSCREW, CAP
-
190607-809 GUSSET, STEERING SUPPORT - LEFTGUSSET, STEERING SUPPORT - LEFT
-
208408-625 SCREW, CAPSCREW, CAP
-
211623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
224606-908 BRACKET, SUPPORT - BELT GUARDBRACKET, SUPPORT - BELT GUARD
-
238408-616 SCREW, CAPSCREW, CAP
-
243606-744 BRACKET, FOOTREST - RIGHTBRACKET, FOOTREST - RIGHT
-
243606-745 BRACKET, FOOTREST - LEFTBRACKET, FOOTREST - LEFT
-
258060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
264606-687 BRACKET, SUPPORT - RECOIL CUPBRACKET, SUPPORT - RECOIL CUP
