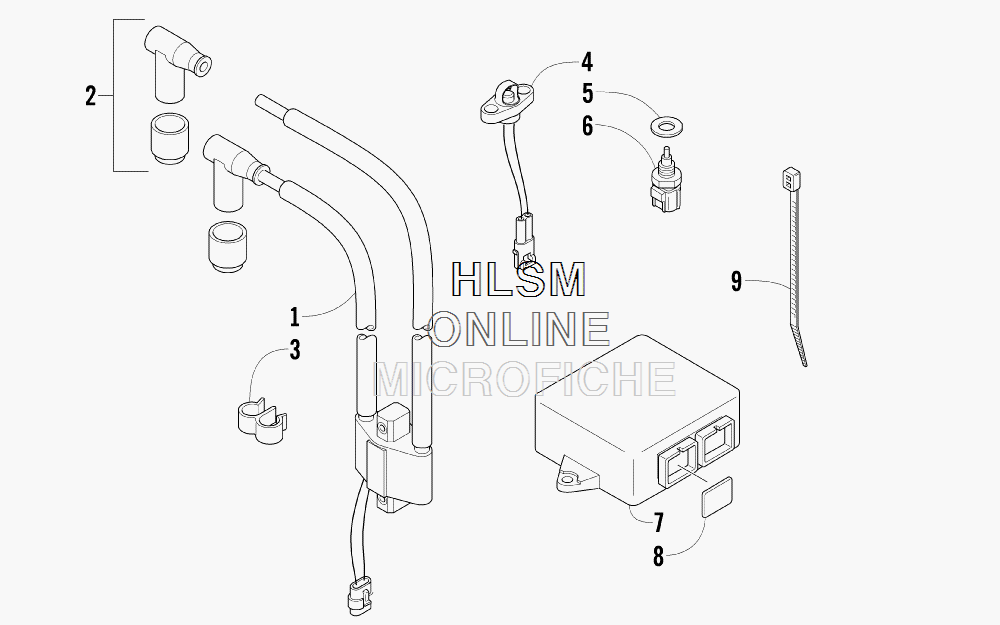

ELECTRICAL для Arctic Cat F5 [S2014F5CEFUSG] - 2014 года выпуска
-
№АртикулНазвание
-
13007-451 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
23006-367 CAP, SPARK PLUGCAP, SPARK PLUG
-
33005-387 CLAMPCLAMP
-
43006-728 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
63007-060 SENSOR, COOLANTSENSOR, COOLANT
-
70730-120 ECU, F5 LXR-CIRCLE (A)ECU, F5 LXR-CIRCLE (A)
-
70730-121 ECU, F5 LXR-SQUARE (B)ECU, F5 LXR-SQUARE (B)
-
70730-122 ECU, F5 LXR-TRIANGLE (C)ECU, F5 LXR-TRIANGLE (C)
-
83005-908 CAP, RUBBERCAP, RUBBER
-
93005-237 TIE, CABLETIE, CABLE
