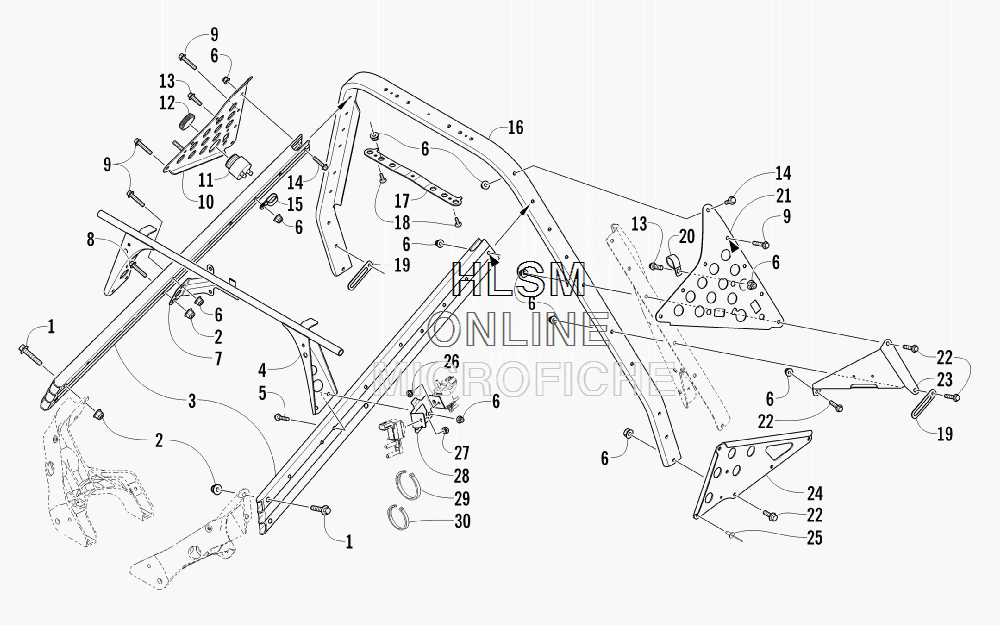

STEERING SUPPORT ASSEMBLY для Arctic Cat TZ1 Turbo LXR [S2013TZNTXUSB] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    8408-840 SCREW, CAP
    SCREW, CAP
  • 2
    8427-802 NUT, LOCK
    NUT, LOCK
  • 3
    0607-814 FRAME, UPPER
    FRAME, UPPER
  • 4
    4706-356 BRACKET, SUPPORT - HEADLIGHT
    BRACKET, SUPPORT - HEADLIGHT
  • 5
    8408-645 SCREW, CAP
    SCREW, CAP
  • 6
    8427-602 NUT, LOCK
    NUT, LOCK
  • 7
    5606-534 BRACKET, MOUNTING - COOLANT TANK
    BRACKET, MOUNTING - COOLANT TANK
  • 8
    8408-835 SCREW, CAP
    SCREW, CAP
  • 9
    8408-635 SCREW, CAP
    SCREW, CAP
  • 10
    0607-808 GUSSET, STEERING SUPPORT - RIGHT
    GUSSET, STEERING SUPPORT - RIGHT
  • 11
    0630-243 ALARM, REVERSE (INC. 12)
    ALARM, REVERSE (INC. 12)
  • 12
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 13
    8408-616 SCREW, CAP
    SCREW, CAP
  • 14
    8408-625 SCREW, CAP
    SCREW, CAP
  • 15
    1623-733 CLAMP, ROUTING
    CLAMP, ROUTING
  • 16
    0605-949 SUPPORT, STEERING
    SUPPORT, STEERING
  • 17
    5606-137 PLATE, NUT
    PLATE, NUT
  • 18
    0623-574 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 19
    1623-984 CLAMP, ROUTING
    CLAMP, ROUTING
  • 20
    0423-044 CLAMP, ROUTING
    CLAMP, ROUTING
  • 21
    0607-809 GUSSET, STEERING SUPPORT - LEFT
    GUSSET, STEERING SUPPORT - LEFT
  • 22
    8408-630 SCREW, CAP
    SCREW, CAP
  • 23
    4606-908 BRACKET, SUPPORT - BELT GUARD
    BRACKET, SUPPORT - BELT GUARD
  • 24
    3706-632 BRACKET, FOOTREST - RIGHT - BLACK
    BRACKET, FOOTREST - RIGHT - BLACK
  • 24
    3706-633 BRACKET, FOOTREST - LEFT - BLACK
    BRACKET, FOOTREST - LEFT - BLACK
  • 25
    8060-706 RIVET
    RIVET
  • 26
    1623-451 SCREW, CAP
    SCREW, CAP
  • 27
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 28
    0645-613 BRACKET, MOUNTING - SOLENOID
    BRACKET, MOUNTING - SOLENOID
  • 29
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 30
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
