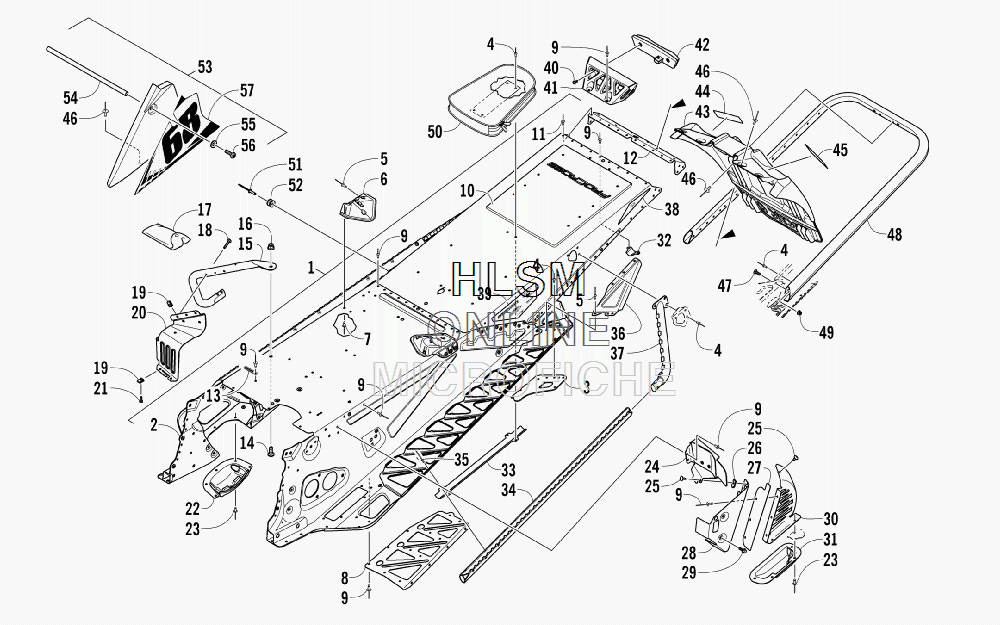

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat F 800 Tucker Hibbert Race Replica [2013F8H68USB] - 2013 года выпуска
-
№АртикулНазвание
-
-1707-930 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-178 TUNNEL ASSEMBLY - BLACK (INC. 2-12)TUNNEL ASSEMBLY - BLACK (INC. 2-12)
-
22707-177 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
31707-916 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
31707-917 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ......RIVET......RIVET
-
51623-241 ...RIVET...RIVET
-
61707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
61707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
71623-257 ...RIVET...RIVET
-
82707-172 ...SUPPORT, RUNNING BOARD - RIGHT - BLACK...SUPPORT, RUNNING BOARD - RIGHT - BLACK
-
82707-173 ...SUPPORT, RUNNING BOARD - LEFT - BLACK...SUPPORT, RUNNING BOARD - LEFT - BLACK
-
98060-702 ...RIVET...RIVET
-
101707-835 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
118060-504 ...RIVET...RIVET
-
121707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
131623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
151707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
151707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
168427-802 NUT, LOCKNUT, LOCK
-
170744-078 KIT, TOOLKIT, TOOL
-
188468-536 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
201707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
201707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
218475-512 SCREW, MACHINESCREW, MACHINE
-
221607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
238061-708 RIVETRIVET
-
241702-278 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
251623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
261623-052 CLIP, U-NUTCLIP, U-NUT
-
271707-639 SHIELD, BRAKE DISC - CENTER - BLACKSHIELD, BRAKE DISC - CENTER - BLACK
-
281607-118 SHIELD, BRAKE DISC - FRONTSHIELD, BRAKE DISC - FRONT
-
298408-613 SCREW, CAPSCREW, CAP
-
301707-563 SHIELD, BRAKE DISC - REAR - BLACKSHIELD, BRAKE DISC - REAR - BLACK
-
310607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
320630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
330630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
342707-170 ROLL, TUNNEL - RIGHT - BLACKROLL, TUNNEL - RIGHT - BLACK
-
342707-171 ROLL, TUNNEL - LEFT - BLACKROLL, TUNNEL - LEFT - BLACK
-
351623-130 RIVETRIVET
-
361707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
361707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
371707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
371707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
389611-512 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
390621-556 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
390621-557 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
408470-512 SCREW, MACHINESCREW, MACHINE
-
410730-164 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
420609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
436606-394 SNOWFLAPSNOWFLAP
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
455611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
468061-706 RIVETRIVET
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
481707-814 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
498427-602 NUT, LOCKNUT, LOCK
-
506606-615 BAG, BELTBAG, BELT
-
518060-630 RIVETRIVET
-
521623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
533718-818 KIT, NUMBER PLATE (INC. SIX NO. 46 AND 54-57)KIT, NUMBER PLATE (INC. SIX NO. 46 AND 54-57)
-
546606-698 ...TUBE, MOUNTING...TUBE, MOUNTING
-
558450-108 ...WASHER...WASHER
-
568468-616 ...SCREW, MACHINE...SCREW, MACHINE
-
570621-558 ...DECAL, NUMBER PLATE - RIGHT...DECAL, NUMBER PLATE - RIGHT
-
570621-559 ...DECAL, NUMBER PLATE - LEFT...DECAL, NUMBER PLATE - LEFT
