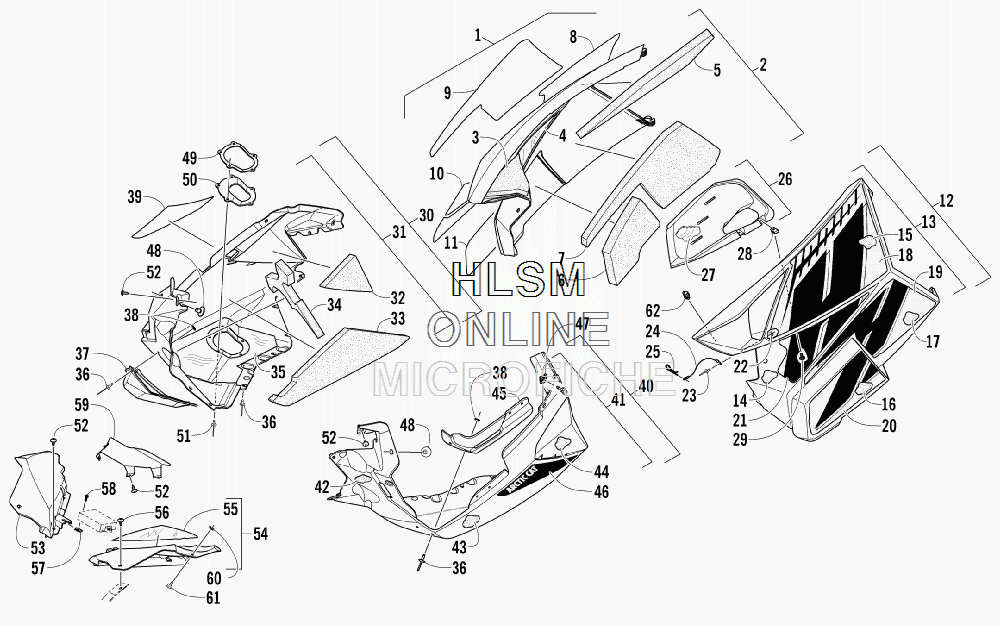

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat F 800 Tucker Hibbert Race Replica [2013F8H68USB] - 2013 года выпуска
-
№АртикулНазвание
-
13718-816 PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-11)PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-11)
-
23718-658 ...PANEL, SIDE - RIGHT W/O DECALS - BLACK (INC. 3-7)...PANEL, SIDE - RIGHT W/O DECALS - BLACK (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
80621-546 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT...DECAL, SIDE PANEL - UPPER REAR - RIGHT
-
90621-550 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
100621-548 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT...DECAL, SIDE PANEL - UPPER FRONT - RIGHT
-
110621-552 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
123718-817 PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 13-21)PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 13-21)
-
133718-659 ...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 14-17)...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 14-17)
-
140617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT......FOAM, SIDE PANEL - CENTER FRONT - LEFT
-
150617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
160617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
170617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
180621-547 ...DECAL, SIDE PANEL - UPPER REAR - LEFT...DECAL, SIDE PANEL - UPPER REAR - LEFT
-
190621-551 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
200621-553 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT...DECAL, SIDE PANEL - LOWER FRONT - LEFT
-
210621-549 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT...DECAL, SIDE PANEL - UPPER FRONT - LEFT
-
228050-127 WASHERWASHER
-
238060-486 RIVETRIVET
-
240607-447 CABLECABLE
-
250605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
261702-279 DUCT, AIR - CLUTCH (INC. 27)DUCT, AIR - CLUTCH (INC. 27)
-
276606-462 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
281623-030 CLIP, U-NUTCLIP, U-NUT
-
290623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
304718-086 PLATE, SKID - RIGHT W/DECALS - BLACK (INC. 31-39)PLATE, SKID - RIGHT W/DECALS - BLACK (INC. 31-39)
-
313718-744 ...PLATE, SKID - RIGHT W/O DECALS (INC. 32-38)...PLATE, SKID - RIGHT W/O DECALS (INC. 32-38)
-
320617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
330617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
340617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
352612-850 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
368061-708 ......RIVET......RIVET
-
372612-754 ......DEFLECTOR, HEAT......DEFLECTOR, HEAT
-
380123-802 ......WASHER......WASHER
-
390621-554 ...DECAL, SKID PLATE - RIGHT...DECAL, SKID PLATE - RIGHT
-
404718-087 PLATE, SKID - LEFT W/DECALS - BLACK (INC. 41-46)PLATE, SKID - LEFT W/DECALS - BLACK (INC. 41-46)
-
413718-745 ...PLATE, SKID - LEFT W/O DECALS (INC. 42-45)...PLATE, SKID - LEFT W/O DECALS (INC. 42-45)
-
420617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
430617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
440617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
456606-613 ......PANEL, REINFORCEMENT......PANEL, REINFORCEMENT
-
460621-555 ...DECAL, SKID PLATE - LEFT...DECAL, SKID PLATE - LEFT
-
471623-748 CLIP, RETAININGCLIP, RETAINING
-
485606-639 PIN, RETAININGPIN, RETAINING
-
492612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
502612-795 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
518061-710 RIVETRIVET
-
521623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
536606-342 FASCIA, FRONT RIGHTFASCIA, FRONT RIGHT
-
543718-303 FASCIA, FRONT LEFT (INC. 55)FASCIA, FRONT LEFT (INC. 55)
-
556606-405 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
560623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
570423-031 CLIP, U-NUTCLIP, U-NUT
-
588408-620 SCREW, CAPSCREW, CAP
-
596606-295 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
602623-001 NUT, PUSHNUT, PUSH
-
611623-999 SCREW, THUMBSCREW, THUMB
-
621623-637 CLIP, U-NUTCLIP, U-NUT
