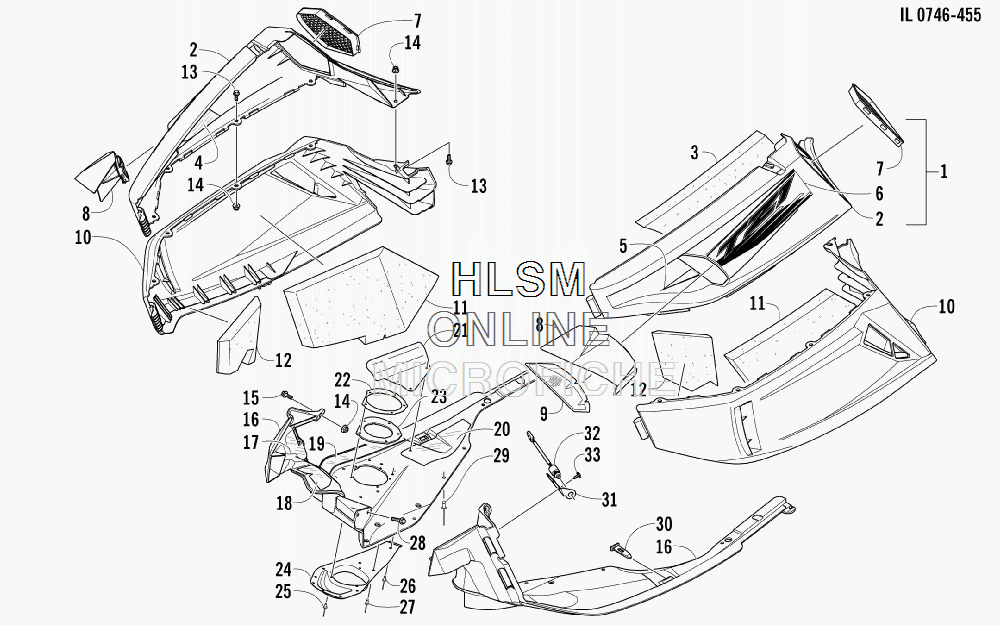

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat TZ1 TURBO LXR LTD (INTERNATIONAL) - 2012 года выпуска
-
№АртикулНазвание
-
13718-748 PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-6)PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-6)
-
13718-357 PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5-6)PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5-6)
-
22718-790 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)
-
22718-791 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)
-
30617-562 ......FOAM, UPPER SIDE PANEL - RIGHT......FOAM, UPPER SIDE PANEL - RIGHT
-
30617-563 ......FOAM, UPPER SIDE PANEL - LEFT......FOAM, UPPER SIDE PANEL - LEFT
-
44606-799 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
59611-404 ...DECAL, UPPER SIDE PANEL - FORWARD RIGHT...DECAL, UPPER SIDE PANEL - FORWARD RIGHT
-
59611-405 ...DECAL, UPPER SIDE PANEL - FORWARD LEFT...DECAL, UPPER SIDE PANEL - FORWARD LEFT
-
69611-410 ...DECAL, UPPER SIDE PANEL - REAR RIGHT...DECAL, UPPER SIDE PANEL - REAR RIGHT
-
69611-411 ...DECAL, UPPER SIDE PANEL - REAR LEFT...DECAL, UPPER SIDE PANEL - REAR LEFT
-
74606-650 VENT, UPPER SIDE PANEL - REAR - RIGHTVENT, UPPER SIDE PANEL - REAR - RIGHT
-
74606-651 VENT, UPPER SIDE PANEL - REAR - LEFTVENT, UPPER SIDE PANEL - REAR - LEFT
-
85606-650 VENT, UPPER SIDE PANEL - FRONT - RIGHTVENT, UPPER SIDE PANEL - FRONT - RIGHT
-
85606-651 VENT, UPPER SIDE PANEL - FRONT - LEFTVENT, UPPER SIDE PANEL - FRONT - LEFT
-
96606-191 SCREEN, VENTSCREEN, VENT
-
102718-800 PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 11-12)PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 11-12)
-
102718-349 PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 11-12)PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 11-12)
-
110617-568 ...FOAM, LOWER SIDE PANEL - REAR - RIGHT...FOAM, LOWER SIDE PANEL - REAR - RIGHT
-
110617-567 ...FOAM, LOWER SIDE PANEL - REAR - LEFT...FOAM, LOWER SIDE PANEL - REAR - LEFT
-
120617-564 ...FOAM, LOWER SIDE PANEL - FRONT - RIGHT...FOAM, LOWER SIDE PANEL - FRONT - RIGHT
-
120617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT...FOAM, LOWER SIDE PANEL - FRONT - LEFT
-
138408-620 SCREW, CAPSCREW, CAP
-
148427-602 NUT, LOCKNUT, LOCK
-
158408-635 SCREW, CAPSCREW, CAP
-
163706-706 PLATE, SKID - RIGHTPLATE, SKID - RIGHT
-
164706-073 PLATE, SKID - LEFTPLATE, SKID - LEFT
-
174606-982 FOIL, SKID PLATE HINGEFOIL, SKID PLATE HINGE
-
184606-796 FOIL, PROTECTIVE RIGHT - UPPER FRONTFOIL, PROTECTIVE RIGHT - UPPER FRONT
-
194606-798 FOIL, PROTECTIVE RIGHT - OUTERFOIL, PROTECTIVE RIGHT - OUTER
-
204606-797 FOIL, PROTECTIVE RIGHT - CENTERFOIL, PROTECTIVE RIGHT - CENTER
-
212612-268 SHIELD, HEATSHIELD, HEAT
-
221712-328 PLATE, EXHAUST - OUTLETPLATE, EXHAUST - OUTLET
-
232612-122 SEAL, EXHAUST - OUTLETSEAL, EXHAUST - OUTLET
-
241712-501 SHIELD, HEAT - EXHAUST OUTLETSHIELD, HEAT - EXHAUST OUTLET
-
258060-510 RIVETRIVET
-
268061-508 RIVETRIVET
-
270623-778 RIVETRIVET
-
280623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
298061-708 RIVETRIVET
-
304606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
310745-363 BRACKET, HOOD SENSORBRACKET, HOOD SENSOR
-
320630-228 SWITCH, ALARM - REVERSESWITCH, ALARM - REVERSE
-
331623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
