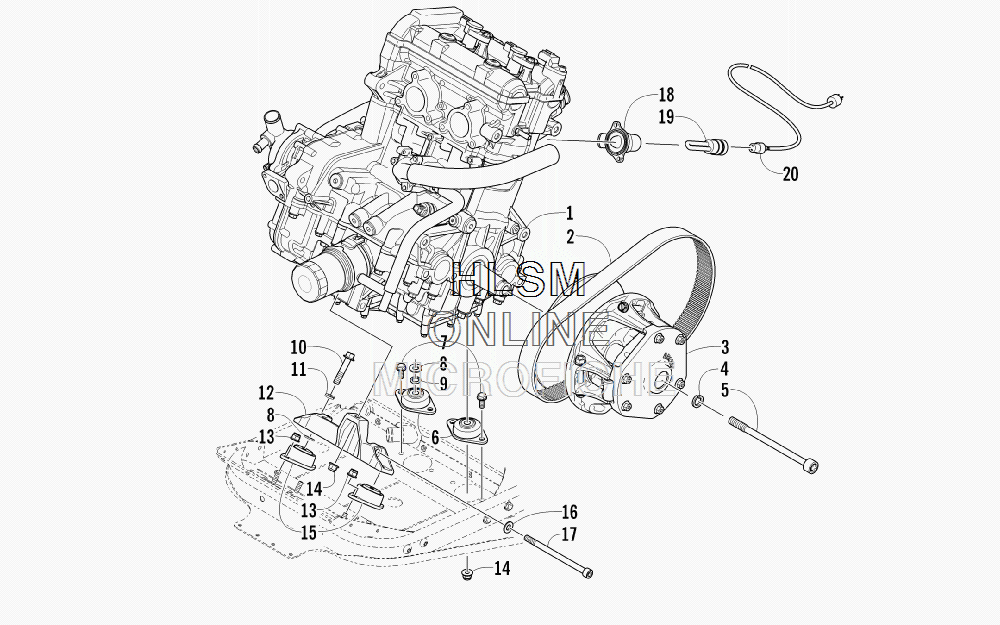

ENGINE AND RELATED PARTS для Arctic Cat TZ1 TURBO LXR LTD (INTERNATIONAL) - 2012 года выпуска`
-
№АртикулНазвание
-
10662-571 ENGINE, AB11L5ENGINE, AB11L5
-
20627-073 BELT, DRIVEBELT, DRIVE
-
30746-444 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
41623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
51623-620 BOLT, CLUTCHBOLT, CLUTCH
-
60608-590 MOUNT, ENGINE - REARMOUNT, ENGINE - REAR
-
71623-437 SCREW, CAPSCREW, CAP
-
88450-163 WASHERWASHER
-
90607-025 O-RINGO-RING
-
108408-020 SCREW, CAPSCREW, CAP
-
118451-182 WASHER, LOCKWASHER, LOCK
-
120708-552 BRACKET, MOUNTING - ENGINEBRACKET, MOUNTING - ENGINE
-
138427-802 NUT, LOCKNUT, LOCK
-
148427-002 NUT, LOCKNUT, LOCK
-
150608-596 MOUNT, ENGINE - FRONTMOUNT, ENGINE - FRONT
-
168450-157 WASHERWASHER
-
171623-925 SCREW, CAPSCREW, CAP
-
180613-012 ADAPTER, HEATER ELEMENT - OPTIONALADAPTER, HEATER ELEMENT - OPTIONAL
-
190609-877 ELEMENT, HEATER - OPTIONALELEMENT, HEATER - OPTIONAL
-
200709-081 HARNESS, HEATER ELEMENT - OPTIONALHARNESS, HEATER ELEMENT - OPTIONAL
