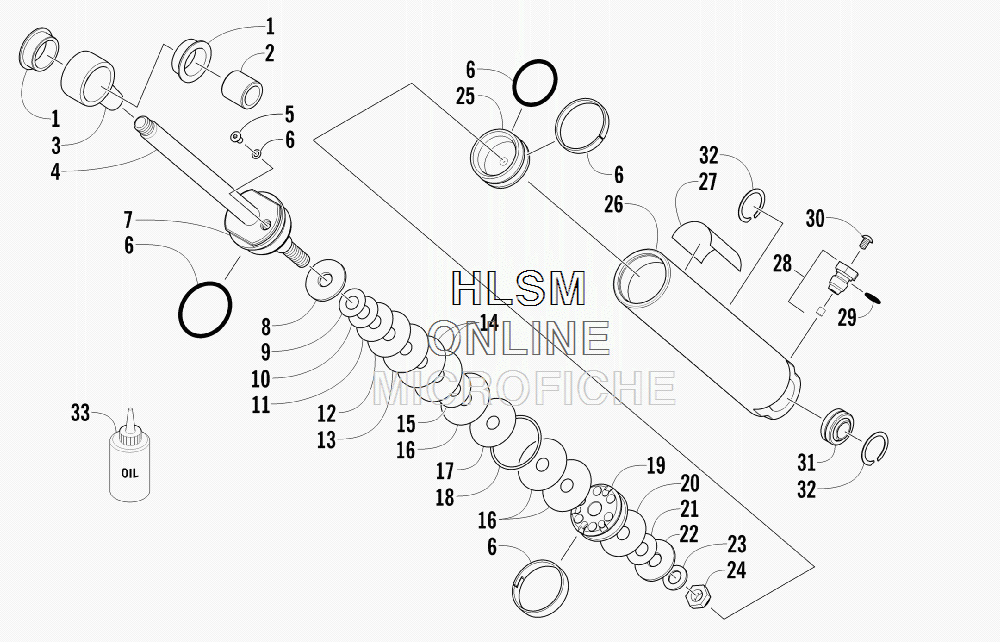

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat SNO PRO 500 - 2012 года выпуска`
-
№АртикулНазвание
-
-2704-040 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-222 BUSHING, SHOCKBUSHING, SHOCK
-
22604-223 SLEEVE, EYELETSLEEVE, EYELET
-
30604-893 EYELET, SHOCKEYELET, SHOCK
-
42604-622 ROD, SHOCKROD, SHOCK
-
52604-530 SCREW, MACHINESCREW, MACHINE
-
62604-880 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
72604-627 CAP, SHOCKCAP, SHOCK
-
82603-466 WASHER, TOP OUTWASHER, TOP OUT
-
90603-895 VALVE, 0.800 X 0.004 IN.VALVE, 0.800 X 0.004 IN.
-
100603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
110603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
120603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
132604-647 VALVE, 1.425 X 0.010 IN.VALVE, 1.425 X 0.010 IN.
-
142604-631 VALVE, 1.600 X 0.010 IN.VALVE, 1.600 X 0.010 IN.
-
150603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
163604-577 VALVE, 1.600 X 0.008 IN.VALVE, 1.600 X 0.008 IN.
-
173604-611 VALVE, 1.425 X 0.006 IN.VALVE, 1.425 X 0.006 IN.
-
182604-692 VALVE RING, 1.600 X 0.012 IN.VALVE RING, 1.600 X 0.012 IN.
-
192604-645 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
202604-632 VALVE, 1.425 X 0.012 IN.VALVE, 1.425 X 0.012 IN.
-
210603-893 VALVE, 1.000 X 0.004 IN.VALVE, 1.000 X 0.004 IN.
-
223604-610 WASHER, TOP OUTWASHER, TOP OUT
-
230603-389 WASHER, BACKUPWASHER, BACKUP
-
240603-301 NUTNUT
-
252604-886 PISTON, FLOATINGPISTON, FLOATING
-
263604-579 BODY, SHOCKBODY, SHOCK
-
272604-889 DECAL, SHOCKDECAL, SHOCK
-
280703-341 VALVE, PRESSURE - ASSEMBLY (INC. 29)VALVE, PRESSURE - ASSEMBLY (INC. 29)
-
291604-318 ...O-RING...O-RING
-
300624-097 SCREW, VALVESCREW, VALVE
-
311604-664 BEARINGBEARING
-
323604-147 RING, RETAININGRING, RETAINING
-
335639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
