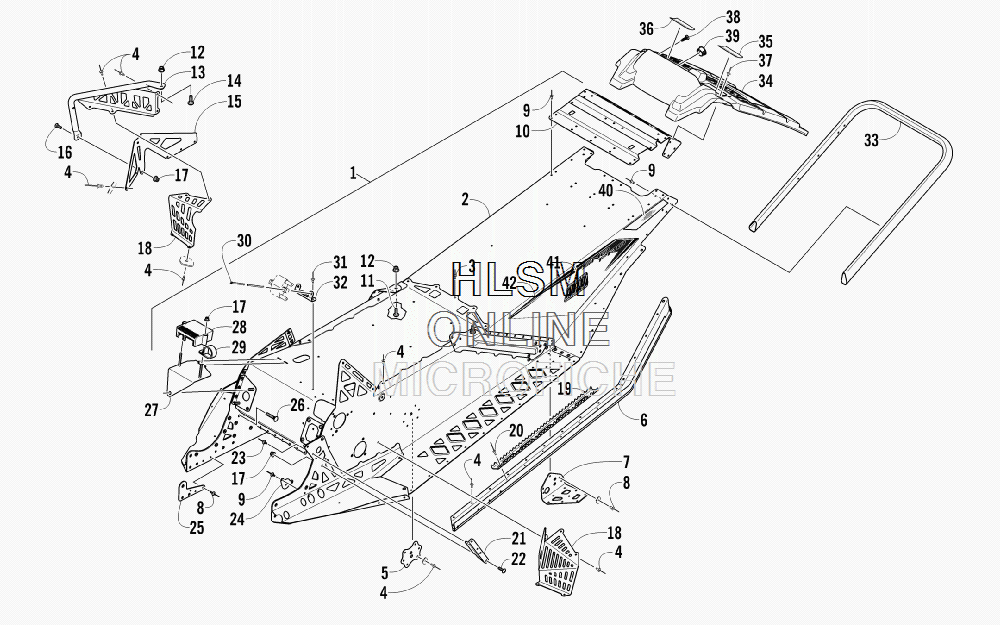

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat SNO PRO 500 - 2012 года выпуска`
-
№АртикулНазвание
-
11707-463 CHASSIS ASSEMBLY (INC. 2-11 AND TWO NO. 12)CHASSIS ASSEMBLY (INC. 2-11 AND TWO NO. 12)
-
21607-053 ...TUNNEL, REAR...TUNNEL, REAR
-
38061-682 ...RIVET...RIVET
-
41623-130 ...RIVET...RIVET
-
51607-090 ...PLATE, BACKING...PLATE, BACKING
-
65606-848 ...ROLL, TUNNEL - RIGHT...ROLL, TUNNEL - RIGHT
-
65606-849 ...ROLL, TUNNEL - LEFT - BLACK...ROLL, TUNNEL - LEFT - BLACK
-
74706-834 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK
-
74706-835 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK
-
81623-241 ...RIVET...RIVET
-
98060-686 ...RIVET...RIVET
-
101607-054 ...END CAP, TUNNEL...END CAP, TUNNEL
-
118476-835 ...SCREW, MACHINE...SCREW, MACHINE
-
128427-802 ...NUT, LOCK...NUT, LOCK
-
134706-514 HOOK, TOE - RIGHT - BLACKHOOK, TOE - RIGHT - BLACK
-
134706-515 HOOK, TOE - LEFT - BLACKHOOK, TOE - LEFT - BLACK
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
154706-510 GUSSET, TOE STOP - RIGHT - BLACKGUSSET, TOE STOP - RIGHT - BLACK
-
154706-511 GUSSET, TOE STOP - LEFT - BLACKGUSSET, TOE STOP - LEFT - BLACK
-
168476-630 SCREW, MACHINESCREW, MACHINE
-
178427-602 NUT, LOCKNUT, LOCK
-
184706-516 SHIELD, TOE - RIGHT - BLACKSHIELD, TOE - RIGHT - BLACK
-
184706-517 SHIELD, TOE - LEFT - BLACKSHIELD, TOE - LEFT - BLACK
-
194706-307 PLATE, GRIP - GREEN - OPTIONALPLATE, GRIP - GREEN - OPTIONAL
-
208060-506 RIVET - OPTIONALRIVET - OPTIONAL
-
210608-585 BRACKET, ENGINE/CHASSIS MOUNTING - LEFTBRACKET, ENGINE/CHASSIS MOUNTING - LEFT
-
228476-620 SCREW, MACHINESCREW, MACHINE
-
231623-206 RIVETRIVET
-
245606-672 PLATE, BACKING - PTO MOUNTINGPLATE, BACKING - PTO MOUNTING
-
255606-628 BRACE, SUPPORT - INNERBRACE, SUPPORT - INNER
-
261623-020 BOLT, CARRIAGEBOLT, CARRIAGE
-
274706-794 PLATE, MOUNTING - VOLTAGE REGULATORPLATE, MOUNTING - VOLTAGE REGULATOR
-
280630-250 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
293008-040 CLAMP, ROUTINGCLAMP, ROUTING
-
300123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
318060-682 RIVETRIVET
-
325606-536 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
334706-882 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
345606-525 SNOWFLAPSNOWFLAP
-
355611-853 DECAL, WARNING - TOWING - ENGLISHDECAL, WARNING - TOWING - ENGLISH
-
365611-852 DECAL, WARNING - TOWING - FRENCHDECAL, WARNING - TOWING - FRENCH
-
378061-708 RIVETRIVET
-
381623-343 PLUG, HOLEPLUG, HOLE
-
395606-988 PLUG, HOLEPLUG, HOLE
-
408611-676 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
408611-677 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
417611-150 DECAL, "APV" - OPTIONALDECAL, "APV" - OPTIONAL
-
429611-496 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
429611-497 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
