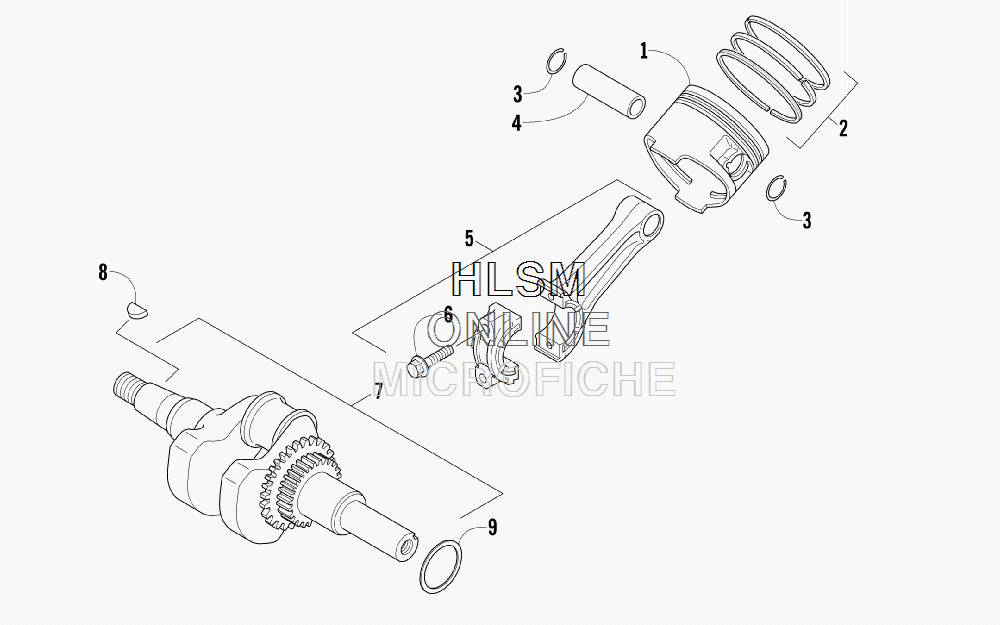

PISTON AND CRANKSHAFT ASSEMBLY для Arctic Cat SNO PRO 120 - 2012 года выпуска`
-
№АртикулНазвание
-
13020-013 PISTONPISTON
-
13020-015 PISTON, OVERSIZED (0.25 MM) - OPTIONALPISTON, OVERSIZED (0.25 MM) - OPTIONAL
-
13020-016 PISTON, OVERSIZED (0.50 MM) - OPTIONALPISTON, OVERSIZED (0.50 MM) - OPTIONAL
-
23020-010 RING, PISTON - SETRING, PISTON - SET
-
23020-011 RING, PISTON - SET - OVERSIZED (0.25 MM) - OPTIONALRING, PISTON - SET - OVERSIZED (0.25 MM) - OPTIONAL
-
23020-012 RING, PISTON - SET - OVERSIZED (0.50 MM) - OPTIONALRING, PISTON - SET - OVERSIZED (0.50 MM) - OPTIONAL
-
33020-115 CIRCLIPCIRCLIP
-
43020-014 PIN, PISTONPIN, PISTON
-
53020-031 ROD, CONNECTING - ASSEMBLY (INC. 6)ROD, CONNECTING - ASSEMBLY (INC. 6)
-
63020-032 ...SCREW, CAP...SCREW, CAP
-
73020-029 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
83020-098 KEYKEY
-
93020-030 SHIM, CRANKSHAFTSHIM, CRANKSHAFT
