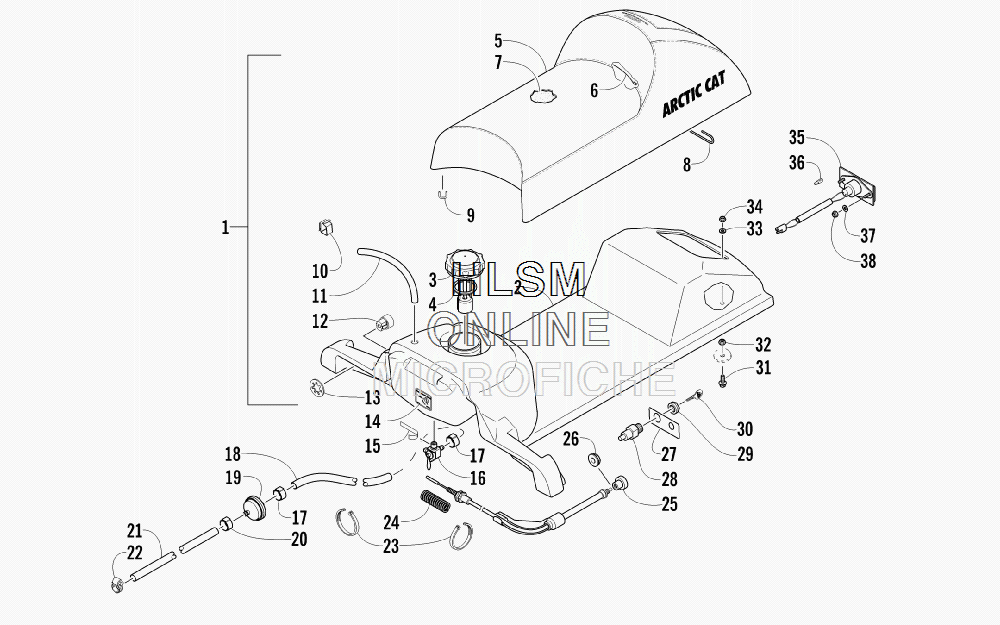

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat SNO PRO 120 - 2012 года выпуска`
-
№АртикулНазвание
-
13718-099 COMPLETE SEAT - ASSEMBLY (INC. 2-9)COMPLETE SEAT - ASSEMBLY (INC. 2-9)
-
21670-969 ...TANK, GAS/SEAT-BASE...TANK, GAS/SEAT-BASE
-
31670-694 ...CAP, GAS TANK W/GAUGE (INC. 4)...CAP, GAS TANK W/GAUGE (INC. 4)
-
40109-733 ......SEAL, TANK CAP......SEAL, TANK CAP
-
55706-067 ...COVER, SEAT (INC. 6)...COVER, SEAT (INC. 6)
-
65606-156 ......WIRE, SEAT......WIRE, SEAT
-
71706-017 ...FOAM, SEAT...FOAM, SEAT
-
82606-942 ...WIRE, SEAT...WIRE, SEAT
-
90624-528 ...STAPLE...STAPLE
-
100123-394 CLIP, CABLECLIP, CABLE
-
111670-647 HOSE, VENTHOSE, VENT
-
120116-469 BUSHING, RECOIL STARTERBUSHING, RECOIL STARTER
-
131623-841 NUT, PUSHNUT, PUSH
-
143611-856 DECAL, SHUT-OFF VALVEDECAL, SHUT-OFF VALVE
-
150670-289 TAPE, TEFLONTAPE, TEFLON
-
162670-064 VALVE, SHUT-OFF - GAS TANKVALVE, SHUT-OFF - GAS TANK
-
170610-419 CLAMP, HOSECLAMP, HOSE
-
180410-143 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
192670-075 FILTER, FUELFILTER, FUEL
-
200610-415 CLAMP, HOSECLAMP, HOSE
-
210610-772 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
220623-373 CLAMP, HOSECLAMP, HOSE
-
230123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
242670-144 SPRINGSPRING
-
250687-230 CABLE, CHOKE (INC. 26)CABLE, CHOKE (INC. 26)
-
260687-181 ...NUT, CHOKE CABLE...NUT, CHOKE CABLE
-
274611-767 DECAL, SWITCH/CHOKEDECAL, SWITCH/CHOKE
-
280109-822 SWITCH, IGNITION (INC. 29-30)SWITCH, IGNITION (INC. 29-30)
-
290609-111 ...NUT, RETAINING...NUT, RETAINING
-
300116-065 ...KEY...KEY
-
311623-861 SCREW, CAPSCREW, CAP
-
321623-865 NUT, LOCKNUT, LOCK
-
330623-184 WASHERWASHER
-
340123-108 NUT, CAPNUT, CAP
-
350609-070 TAILLIGHT ASSEMBLY (INC. 36)TAILLIGHT ASSEMBLY (INC. 36)
-
360230-020 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
371623-871 WASHERWASHER
-
380123-709 NUT W/WASHERNUT W/WASHER
