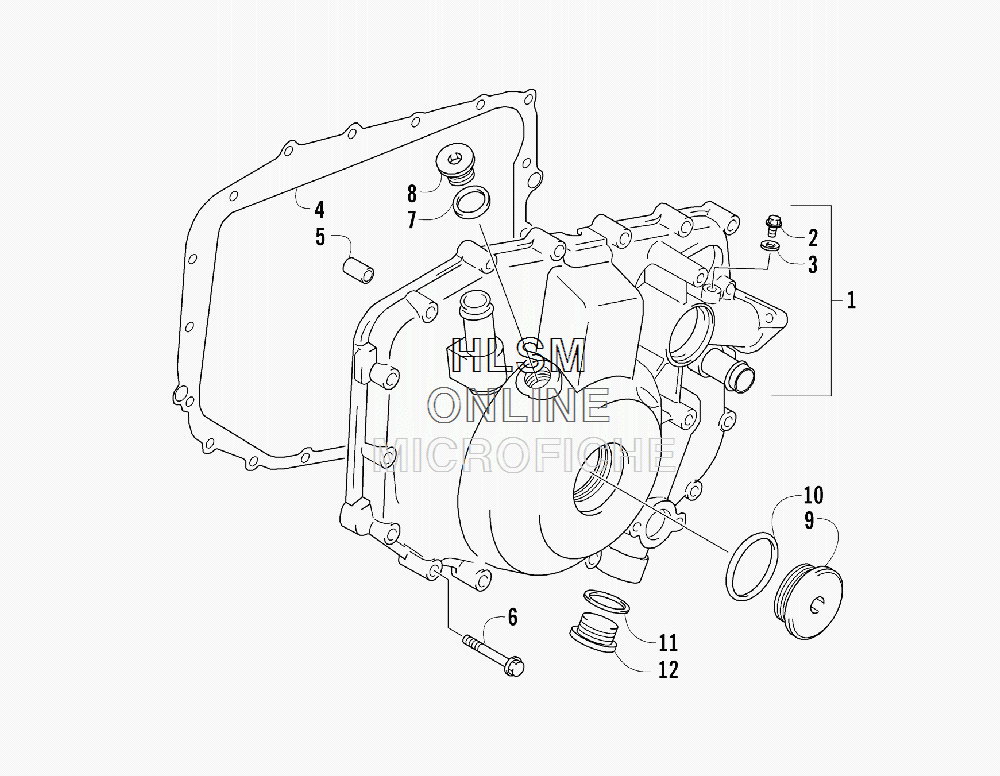

MAGNETO COVER для Arctic Cat M 1100 - 2012 года выпуска`
-
№АртикулНазвание
-
13007-095 COVER (INC. 2-3)COVER (INC. 2-3)
-
23006-598 ...SCREW, CAP...SCREW, CAP
-
33003-290 ...GASKET...GASKET
-
43007-096 GASKET, COVERGASKET, COVER
-
53007-097 PIN, DOWELPIN, DOWEL
-
63007-503 BOLTBOLT
-
73402-013 GASKETGASKET
-
83403-236 PLUG, TDCPLUG, TDC
-
93402-898 PLUG, CRANKSHAFT HOLEPLUG, CRANKSHAFT HOLE
-
103423-061 O-RINGO-RING
-
113403-106 GASKET, OIL PLUGGASKET, OIL PLUG
-
123007-085 PLUG, OILPLUG, OIL
