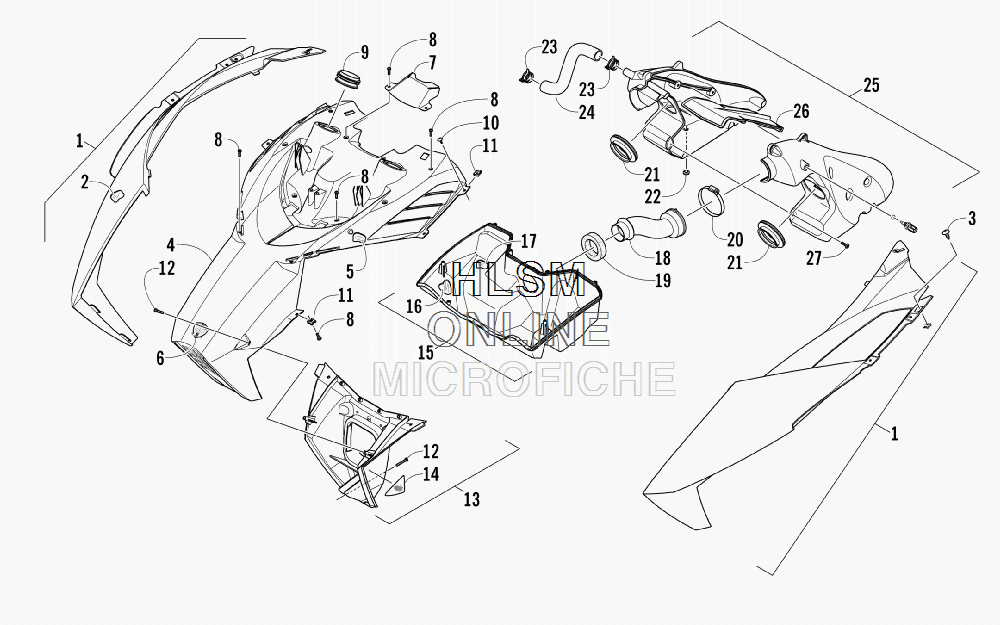

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat M 1100 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-486 HOOD, RIGHT - ASSEMBLY - BLACK (INC. 2)
    HOOD, RIGHT - ASSEMBLY - BLACK (INC. 2)
  • 1
    6606-319 HOOD, LEFT - ASSEMBLY - BLACK
    HOOD, LEFT - ASSEMBLY - BLACK
  • 2
    6606-420 ...FOIL, HOOD - RIGHT
    ...FOIL, HOOD - RIGHT
  • 3
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 4
    5706-371 PLENUM, INTAKE - UPPER (INC. 5)
    PLENUM, INTAKE - UPPER (INC. 5)
  • 5
    6606-415 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 6
    9611-603 DECAL, 50TH ANNIVERSARY
    DECAL, 50TH ANNIVERSARY
  • 7
    5706-229 GUARD, STEERING POST - BLACK
    GUARD, STEERING POST - BLACK
  • 8
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 9
    6606-386 BOOT, INTAKE
    BOOT, INTAKE
  • 10
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 11
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 12
    1623-929 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 13
    5706-357 PLENUM, INTAKE - LOWER FRONT (INC. 14)
    PLENUM, INTAKE - LOWER FRONT (INC. 14)
  • 14
    9611-510 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 15
    5706-372 PLENUM, INTAKE - LOWER REAR (INC. 16-17)
    PLENUM, INTAKE - LOWER REAR (INC. 16-17)
  • 16
    6606-421 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 17
    6606-419 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 18
    2670-164 DUCT, INTAKE
    DUCT, INTAKE
  • 19
    0617-644 SEAL
    SEAL
  • 20
    0423-018 CLAMP
    CLAMP
  • 21
    2670-161 BOOT, THROTTLE BODY
    BOOT, THROTTLE BODY
  • 22
    0406-877 BUMPER
    BUMPER
  • 23
    1623-291 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    0610-852 HOSE, BREATHER
    HOSE, BREATHER
  • 25
    2670-160 SILENCER, AIR - ASSEMBLY (INC. 26-27)
    SILENCER, AIR - ASSEMBLY (INC. 26-27)
  • 26
    2670-183 ...BAFFLE, AIR SILENCER
    ...BAFFLE, AIR SILENCER
  • 27
    1623-251 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
