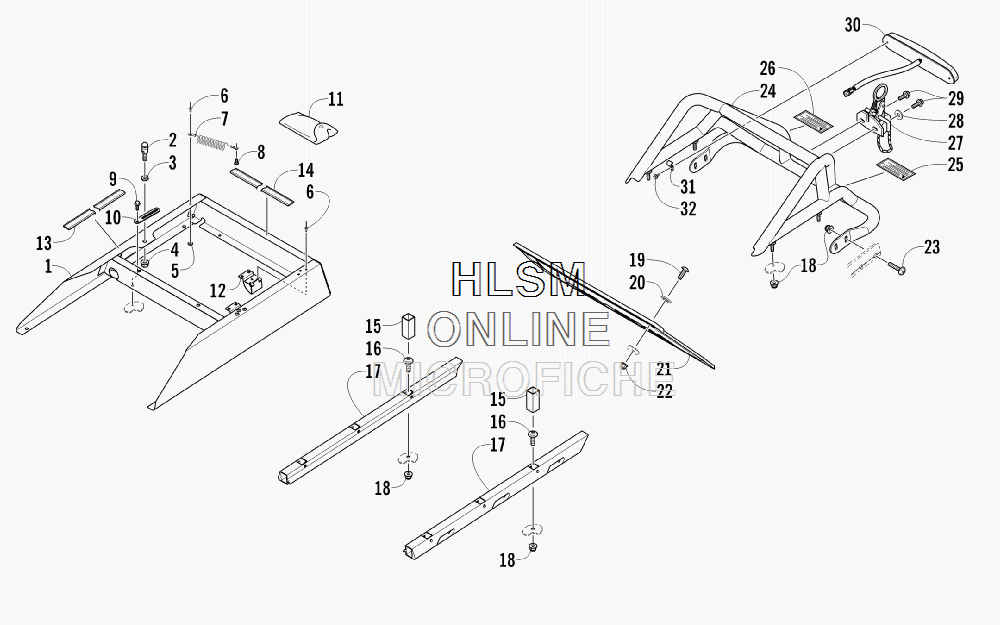

REAR BUMPER- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat BEARCAT Z1 XT LTD - 2012 года выпуска`
-
№АртикулНазвание
-
15706-065 RISER, SEAT - ASSEMBLYRISER, SEAT - ASSEMBLY
-
21623-345 STUD, SEATSTUD, SEAT
-
31623-083 NUTNUT
-
48422-002 NUT, LOCKNUT, LOCK
-
50123-802 WASHERWASHER
-
68060-706 RIVETRIVET
-
74606-162 CABLECABLE
-
81623-022 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
98408-616 SCREW, CAPSCREW, CAP
-
103002-964 CLAMP, WIRECLAMP, WIRE
-
115706-054 KIT, TOOLKIT, TOOL
-
120623-579 HINGE, SEAT-BASEHINGE, SEAT-BASE
-
135606-802 SEALSEAL
-
145606-803 SEALSEAL
-
150441-592 INSERTINSERT
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
174706-258 MOUNT, RACK - RIGHTMOUNT, RACK - RIGHT
-
174706-259 MOUNT, RACK - LEFTMOUNT, RACK - LEFT
-
188427-802 NUT, LOCKNUT, LOCK
-
191623-782 SCREW, MACHINESCREW, MACHINE
-
200623-184 WASHERWASHER
-
213606-740 SNOWFLAPSNOWFLAP
-
228427-602 NUT, LOCKNUT, LOCK
-
238476-835 SCREW, MACHINESCREW, MACHINE
-
244706-065 BUMPER, REARBUMPER, REAR
-
255611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
265611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
274606-156 HITCH, PINTLEHITCH, PINTLE
-
288050-242 WASHERWASHER
-
298408-832 SCREW, CAPSCREW, CAP
-
300609-887 TAILLIGHT, LEDTAILLIGHT, LED
-
311623-786 CLAMP, WIRECLAMP, WIRE
-
320623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
