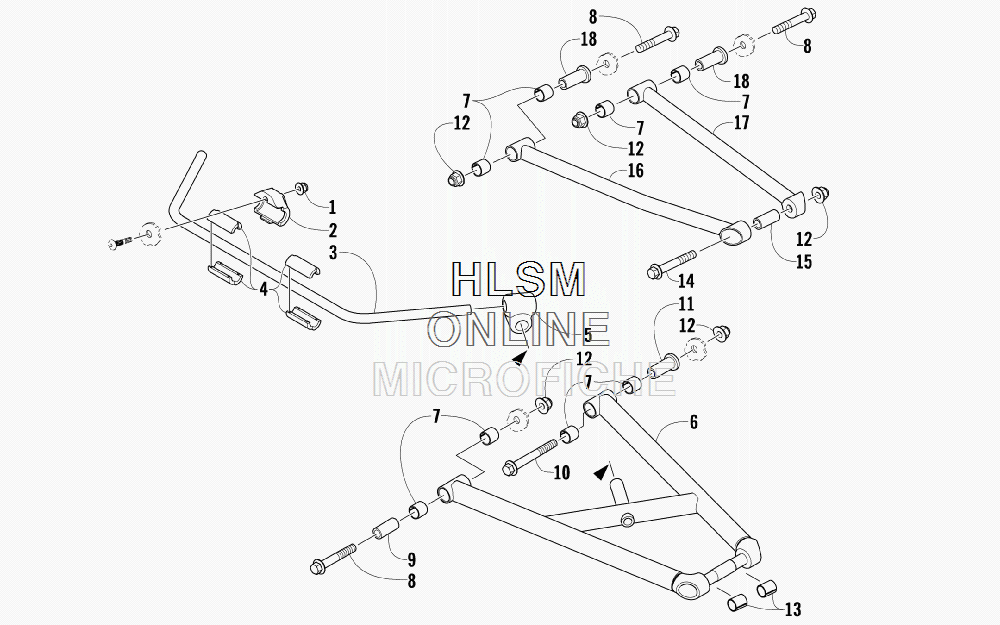

A-ARM AND SWAY BAR ASSEMBLY для Arctic Cat BEARCAT Z1 XT LTD - 2012 года выпуска
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
22603-818 BRACKET, MOUNTING - SWAY BARBRACKET, MOUNTING - SWAY BAR
-
32703-344 BAR, SWAYBAR, SWAY
-
42603-712 SLEEVE, SWAY BARSLEEVE, SWAY BAR
-
52603-710 LINK, SWAY BARLINK, SWAY BAR
-
62703-459 A-ARM, LOWER - PLATINUM (INC. EIGHT NO. 7)A-ARM, LOWER - PLATINUM (INC. EIGHT NO. 7)
-
71603-895 ...BEARING...BEARING
-
88408-070 SCREW, CAPSCREW, CAP
-
92603-544 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
108408-090 SCREW, CAPSCREW, CAP
-
112603-543 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
128427-002 NUT, LOCKNUT, LOCK
-
132603-577 BEARING, SPLITBEARING, SPLIT
-
148408-065 SCREW, CAPSCREW, CAP
-
152603-643 AXLE, SPINDLEAXLE, SPINDLE
-
162703-455 A-ARM, UPPER - FRONT - PLATINUM (INC. FOUR NO. 7)A-ARM, UPPER - FRONT - PLATINUM (INC. FOUR NO. 7)
-
172703-457 A-ARM, UPPER - REAR - PLATINUM (INC. FOUR NO. 7)A-ARM, UPPER - REAR - PLATINUM (INC. FOUR NO. 7)
-
182603-634 AXLE, INNER - UPPER A-ARMAXLE, INNER - UPPER A-ARM
