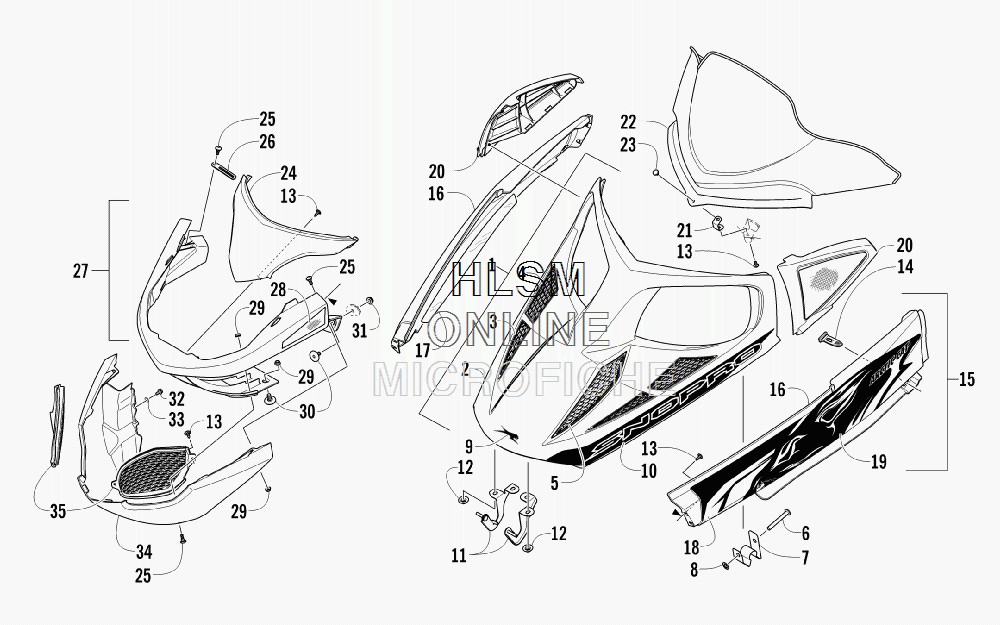

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat Z1 SNO PRO (GREEN) - 2011 года выпуска
-
№АртикулНазвание
-
12718-889 HOOD W/DECALS - GREEN (INC. 2-10)HOOD W/DECALS - GREEN (INC. 2-10)
-
27800-958 ...HOOD W/O DECALS - GREEN (INC. 3-8)...HOOD W/O DECALS - GREEN (INC. 3-8)
-
34606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
-
34606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK......VENT, HOOD - OUTER FRONT - LEFT - BLACK
-
44606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK......VENT, HOOD - OUTER REAR - RIGHT - BLACK
-
44606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK......VENT, HOOD - OUTER REAR - LEFT - BLACK
-
54606-614 ......VENT, HOOD - INNER - RIGHT - BLACK......VENT, HOOD - INNER - RIGHT - BLACK
-
54606-615 ......VENT, HOOD - INNER - LEFT - BLACK......VENT, HOOD - INNER - LEFT - BLACK
-
61623-610 ......PIN, RETAINING......PIN, RETAINING
-
75706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT......CLIP, HOOD HOLD-DOWN - RIGHT
-
75706-085 ......CLIP, HOOD HOLD-DOWN - LEFT......CLIP, HOOD HOLD-DOWN - LEFT
-
81623-409 ......NUT, PUSH......NUT, PUSH
-
98611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
109611-076 ...DECAL, HOOD - "SNO PRO" - RIGHT...DECAL, HOOD - "SNO PRO" - RIGHT
-
109611-077 ...DECAL, HOOD - "SNO PRO" - LEFT...DECAL, HOOD - "SNO PRO" - LEFT
-
113706-348 BRACKET, HINGE - RIGHT - BLACKBRACKET, HINGE - RIGHT - BLACK
-
113706-347 BRACKET, HINGE - LEFT - BLACKBRACKET, HINGE - LEFT - BLACK
-
121623-469 NUT, STAMPEDNUT, STAMPED
-
131623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
144606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
152718-938 SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 16-19)SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 16-19)
-
152718-939 SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 16 AND 18-19)SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 16 AND 18-19)
-
164706-610 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK...SPAR, FRONT W/O DECALS - RIGHT - BLACK
-
164706-611 ...SPAR, FRONT W/O DECALS - LEFT - BLACK...SPAR, FRONT W/O DECALS - LEFT - BLACK
-
174606-934 ...FOIL, SPAR - RIGHT...FOIL, SPAR - RIGHT
-
189611-078 ...DECAL, FRONT SPAR - FORWARD - RIGHT...DECAL, FRONT SPAR - FORWARD - RIGHT
-
189611-079 ...DECAL, FRONT SPAR - FORWARD - LEFT...DECAL, FRONT SPAR - FORWARD - LEFT
-
199611-080 ...DECAL, FRONT SPAR - REAR - RIGHT...DECAL, FRONT SPAR - REAR - RIGHT
-
199611-081 ...DECAL, FRONT SPAR - REAR - LEFT...DECAL, FRONT SPAR - REAR - LEFT
-
204706-644 BEZEL, INTAKE - RIGHT - GREENBEZEL, INTAKE - RIGHT - GREEN
-
204706-645 BEZEL, INTAKE - LEFT - GREENBEZEL, INTAKE - LEFT - GREEN
-
214606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
225606-984 WINDSHIELD, EXTREME LOW-FLAT BACKWINDSHIELD, EXTREME LOW-FLAT BACK
-
231623-677 RIVET, PLASTICRIVET, PLASTIC
-
244706-642 FACIA, BUMPER - UPPER - BLACKFACIA, BUMPER - UPPER - BLACK
-
250423-355 SCREW, SHOULDERSCREW, SHOULDER
-
263002-964 CLAMP, WIRECLAMP, WIRE
-
272718-772 BUMPER, FRONT - GREEN (INC. 28)BUMPER, FRONT - GREEN (INC. 28)
-
289611-384 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
289611-385 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
298427-602 NUT, LOCKNUT, LOCK
-
301623-775 SCREW, SHOULDERSCREW, SHOULDER
-
318424-602 NUTNUT
-
320623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
338053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
345606-463 FASCIA, BUMPER - LOWER - GREENFASCIA, BUMPER - LOWER - GREEN
-
354606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
354606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
