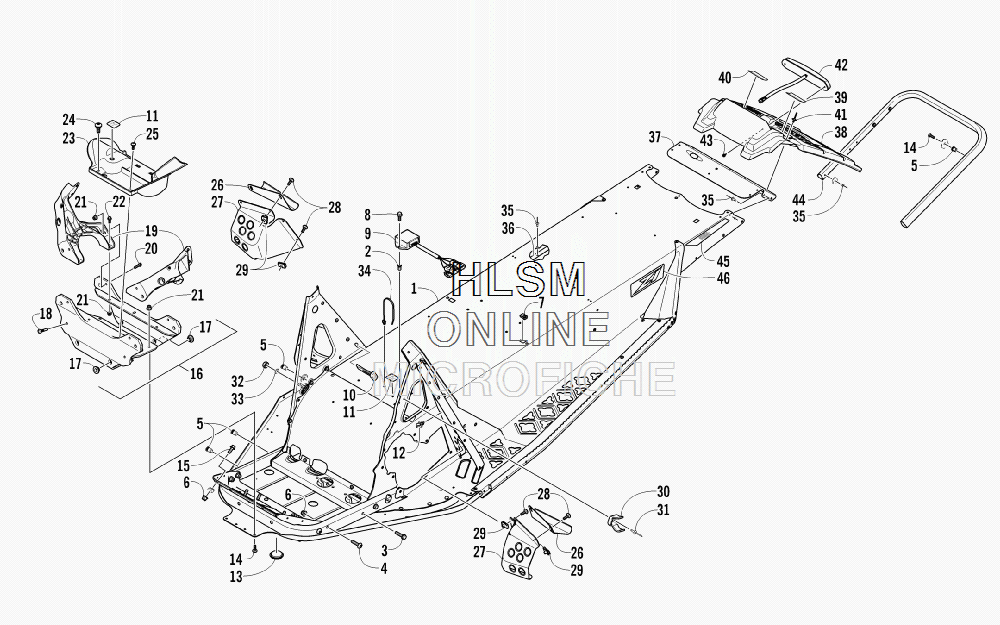

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat Z1 SNO PRO (GREEN) - 2011 года выпуска`
-
№АртикулНазвание
-
11707-415 CHASSIS - ASSEMBLY (INC. 2-5 AND FOUR NO. 6)CHASSIS - ASSEMBLY (INC. 2-5 AND FOUR NO. 6)
-
21623-797 ...INSERT...INSERT
-
31623-428 ...SCREW, CAP-HFH M8 X 1.25 X 40 TRILOBE Z & Y...SCREW, CAP-HFH M8 X 1.25 X 40 TRILOBE Z & Y
-
48476-835 ...SCREW, MACH-TSTRH M8X1.25X35 Z & Y...SCREW, MACH-TSTRH M8X1.25X35 Z & Y
-
50423-391 ...INSERT...INSERT
-
68427-802 ...NUT, LOCK...NUT, LOCK
-
71623-637 CLIP, U-NUTCLIP, U-NUT
-
88408-516 SCREW, CAPSCREW, CAP
-
90630-255 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
104606-454 STRAP, HOLD-DOWN - RIGHTSTRAP, HOLD-DOWN - RIGHT
-
104606-455 STRAP, HOLD-DOWN - LEFTSTRAP, HOLD-DOWN - LEFT
-
112606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
120623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
131623-625 PLUGPLUG
-
148476-620 SCREW,MACH-TSTRH M6X1.0X20 Z & YSCREW,MACH-TSTRH M6X1.0X20 Z & Y
-
158408-820 SCREW,CAP-HFH M8X1.25X20 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X20 CL8.8 Z & Y
-
161707-340 BRACKET, MOUNTING - FRONT SUSPENSION (INC. 17-18)BRACKET, MOUNTING - FRONT SUSPENSION (INC. 17-18)
-
170605-763 ...BUSHING...BUSHING
-
181623-443 ...BOLT, RIBBED...BOLT, RIBBED
-
190607-806 FRAME, MOUNTING - SHOCK - RIGHTFRAME, MOUNTING - SHOCK - RIGHT
-
190607-807 FRAME, MOUNTING - SHOCK - LEFTFRAME, MOUNTING - SHOCK - LEFT
-
208408-625 SCREW, CAPSCREW, CAP
-
218427-602 NUT, LOCKNUT, LOCK
-
228408-620 SCREW, CAPSCREW, CAP
-
234606-308 CLOSE-OFF, FRONT ENDCLOSE-OFF, FRONT END
-
240423-029 SCREW, SHOULDERSCREW, SHOULDER
-
258476-616 SCREW, MACHINESCREW, MACHINE
-
263606-920 BRACKET, TOE HOOK - RIGHTBRACKET, TOE HOOK - RIGHT
-
263606-921 BRACKET, TOE HOOK - LEFTBRACKET, TOE HOOK - LEFT
-
273606-710 SHIELD, TOE - RIGHTSHIELD, TOE - RIGHT
-
273606-711 SHIELD, TOE - LEFTSHIELD, TOE - LEFT
-
288471-616 SCREW, MACH-TSPNH M6X1.0X16 CL8.8 Z & BLKSCREW, MACH-TSPNH M6X1.0X16 CL8.8 Z & BLK
-
290423-577 CLIP, U-NUTCLIP, U-NUT
-
301670-826 BRACKET, MOUNTING - FUEL FILTERBRACKET, MOUNTING - FUEL FILTER
-
318060-628 RIVETRIVET
-
320623-038 NUT W/WASHERNUT W/WASHER
-
338053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
340623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
358060-686 RIVETRIVET
-
366606-056 SUPPORT, TUNNELSUPPORT, TUNNEL
-
375606-701 END CAP, TUNNELEND CAP, TUNNEL
-
384706-547 SNOWFLAPSNOWFLAP
-
395611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
405611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
418061-706 RIVET, BLIND-LF SS64 BLACKRIVET, BLIND-LF SS64 BLACK
-
420609-863 TAILLIGHT, LED-1.5" X 9.5" (10" LEAD)REDTAILLIGHT, LED-1.5" X 9.5" (10" LEAD)RED
-
430623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
444706-841 BUMPER, REAR - PLATINUM (INC. FOUR NO. 5)BUMPER, REAR - PLATINUM (INC. FOUR NO. 5)
-
458611-720 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
458611-721 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
469611-094 DECAL, TUNNELDECAL, TUNNEL
