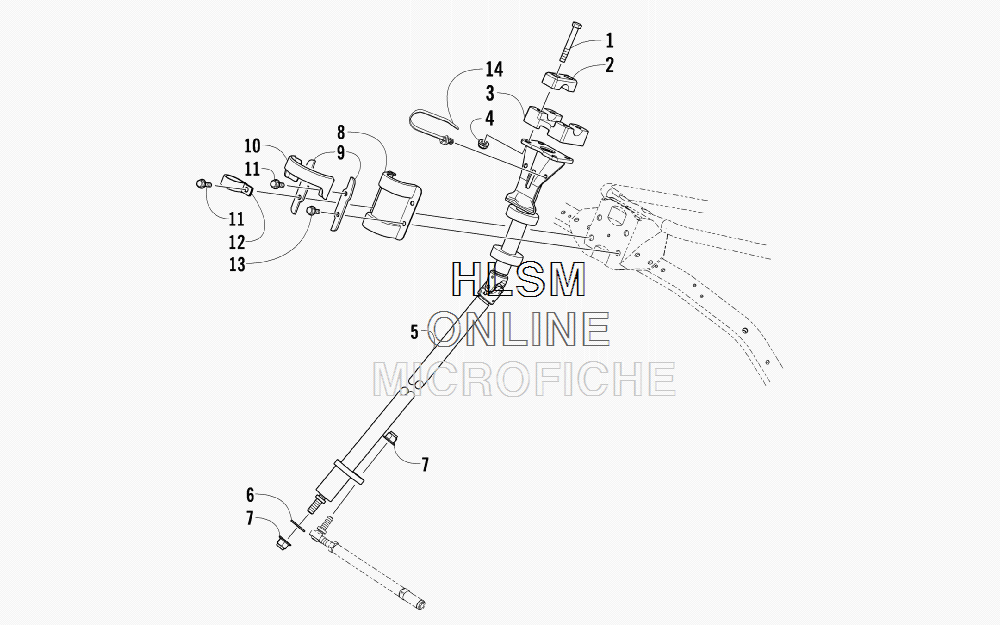

STEERING POST ASSEMBLY для Arctic Cat TZ1 - 2011 года выпуска
-
№АртикулНазвание
-
18002-138 SCREW, CAPSCREW, CAP
-
20605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
30605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
48047-426 NUT, LOCKNUT, LOCK
-
51705-353 POST, STEERINGPOST, STEERING
-
68050-282 WASHERWASHER
-
78427-002 NUT, LOCKNUT, LOCK
-
81705-087 BRACKET, BEARINGBRACKET, BEARING
-
91705-201 PLATE, BEARING BRACKETPLATE, BEARING BRACKET
-
100605-993 BRACKET, WIRE PROTECTORBRACKET, WIRE PROTECTOR
-
118408-621 SCREW, CAPSCREW, CAP
-
123008-040 CLAMP, THROTTLE CABLECLAMP, THROTTLE CABLE
-
138408-617 SCREW, CAPSCREW, CAP
-
140623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
