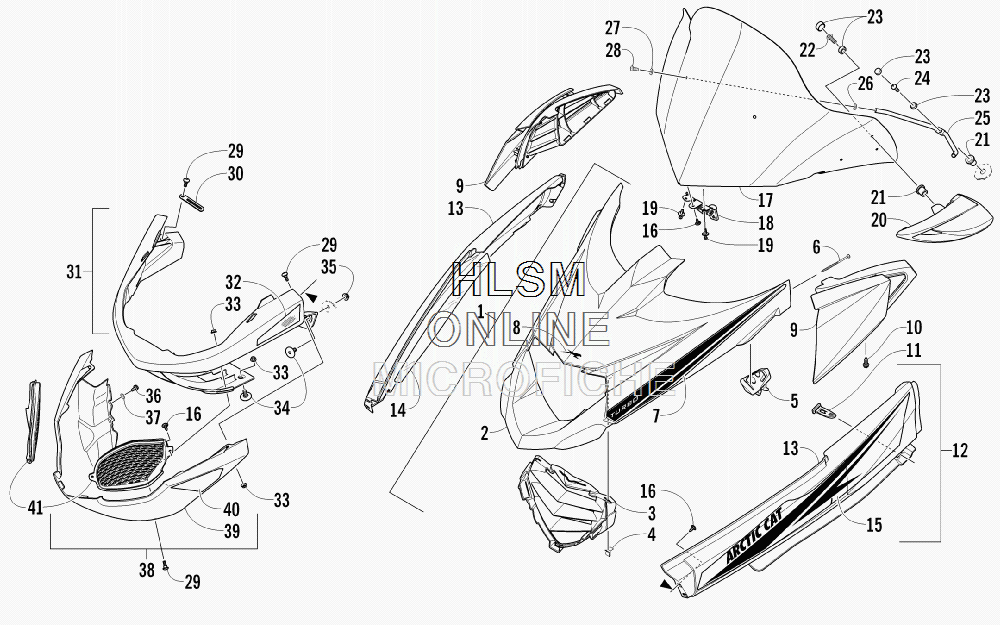

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat TZ1 TURBO LXR LTD - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-061 HOOD W/DECALS - CRIMSON RED (INC. 2-8)
    HOOD W/DECALS - CRIMSON RED (INC. 2-8)
  • 2
    7800-831 ...HOOD W/O DECALS - CRIMSON RED (INC. 3-6)
    ...HOOD W/O DECALS - CRIMSON RED (INC. 3-6)
  • 3
    5606-655 ...GRILLE, HOOD - BLACK
    ...GRILLE, HOOD - BLACK
  • 4
    1623-765 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 5
    1623-768 ...CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
    ...CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
  • 5
    1623-769 ...CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
    ...CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
  • 6
    1623-810 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 7
    9611-254 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 7
    9611-255 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 8
    8611-267 ...DECAL, AIRCAT - CHROME
    ...DECAL, AIRCAT - CHROME
  • 9
    6606-250 BEZEL, INTAKE - RIGHT - CRIMSON RED
    BEZEL, INTAKE - RIGHT - CRIMSON RED
  • 9
    6606-251 BEZEL, INTAKE - LEFT - CRIMSON RED
    BEZEL, INTAKE - LEFT - CRIMSON RED
  • 10
    0423-342 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 11
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 12
    3718-052 SPAR, FRONT W/DECALS - RIGHT - CRIMSON RED (INC. 13-15)
    SPAR, FRONT W/DECALS - RIGHT - CRIMSON RED (INC. 13-15)
  • 12
    3718-053 SPAR, FRONT W/DECALS - LEFT - CRIMSON RED (INC. 13 AND 15)
    SPAR, FRONT W/DECALS - LEFT - CRIMSON RED (INC. 13 AND 15)
  • 13
    4706-982 ...SPAR, FRONT W/O DECALS - RIGHT - CRIMSON RED
    ...SPAR, FRONT W/O DECALS - RIGHT - CRIMSON RED
  • 13
    4706-983 ...SPAR, FRONT W/O DECALS - LEFT - CRIMSON RED
    ...SPAR, FRONT W/O DECALS - LEFT - CRIMSON RED
  • 14
    4606-934 ...FOIL, SPAR - RIGHT
    ...FOIL, SPAR - RIGHT
  • 15
    9611-258 ...DECAL, FRONT SPAR - RIGHT
    ...DECAL, FRONT SPAR - RIGHT
  • 15
    9611-259 ...DECAL, FRONT SPAR - LEFT
    ...DECAL, FRONT SPAR - LEFT
  • 16
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    5606-670 WINDSHIELD,TURBO-HIGH W/HOLES TINT W/BLK
    WINDSHIELD,TURBO-HIGH W/HOLES TINT W/BLK
  • 18
    4706-442 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 19
    0623-362 RIVET, PLASTIC
    RIVET, PLASTIC
  • 20
    4639-734 MIRROR KIT (INC. 21-23)
    MIRROR KIT (INC. 21-23)
  • 21
    0623-845 ...NUT, EXPANSION
    ...NUT, EXPANSION
  • 22
    0623-902 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 23
    0124-054 ...SNAP CAP W/WASHER
    ...SNAP CAP W/WASHER
  • 24
    0623-121 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    4706-805 SUPPORT, WINDSHIELD
    SUPPORT, WINDSHIELD
  • 26
    8050-242 WASHER
    WASHER
  • 27
    1623-837 WASHER, RUBBER
    WASHER, RUBBER
  • 28
    1623-842 SCREW, MACHINE
    SCREW, MACHINE
  • 29
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 30
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 31
    3718-039 BUMPER, FRONT - CRIMSON RED (INC. 32)
    BUMPER, FRONT - CRIMSON RED (INC. 32)
  • 32
    9611-384 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 32
    9611-385 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 33
    8427-602 NUT, LOCK
    NUT, LOCK
  • 34
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 35
    8424-602 NUT
    NUT
  • 36
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 37
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 38
    3718-023 FASCIA, BUMPER W/DECALS - LOWER - BLACK (INC. 39-40)
    FASCIA, BUMPER W/DECALS - LOWER - BLACK (INC. 39-40)
  • 39
    5606-462 ...FASCIA, BUMPER - LOWER - BLACK
    ...FASCIA, BUMPER - LOWER - BLACK
  • 40
    9611-250 ...DECAL, LOWER BUMPER FASCIA - RIGHT
    ...DECAL, LOWER BUMPER FASCIA - RIGHT
  • 40
    9611-251 ...DECAL, LOWER BUMPER FASCIA - LEFT
    ...DECAL, LOWER BUMPER FASCIA - LEFT
  • 41
    4606-604 VENT, BUMPER - RIGHT - BLACK
    VENT, BUMPER - RIGHT - BLACK
  • 41
    4606-605 VENT, BUMPER - LEFT - BLACK
    VENT, BUMPER - LEFT - BLACK
