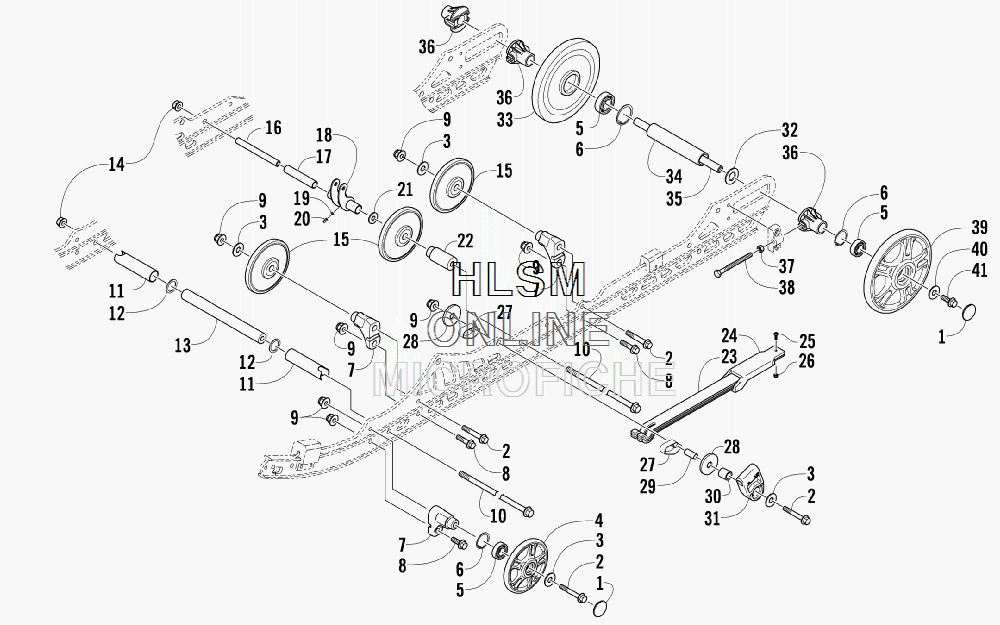

IDLER WHEEL ASSEMBLY для Arctic Cat T570 - 2011 года выпуска`
-
№АртикулНазвание
-
11604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
-
28408-880 SCREW, CAPSCREW, CAP
-
38450-133 WASHERWASHER
-
43604-299 WHEEL, IDLER - WHITE (INC. 5-6)WHEEL, IDLER - WHITE (INC. 5-6)
-
53604-033 ...BEARING...BEARING
-
60623-946 ...RING, RETAINING...RING, RETAINING
-
73604-004 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88408-835 SCREW, CAPSCREW, CAP
-
98427-802 NUT, LOCKNUT, LOCK
-
100423-537 SCREW, CAPSCREW, CAP
-
113604-083 SPACER, SHOCK - FRONT ARMSPACER, SHOCK - FRONT ARM
-
120623-912 WASHERWASHER
-
133604-269 AXLEAXLE
-
148427-002 NUT, LOCKNUT, LOCK
-
153604-486 WHEEL, IDLERWHEEL, IDLER
-
163604-285 AXLEAXLE
-
173604-325 SPACERSPACER
-
181704-674 PIVOT, SHOCK (INC. 19-20)PIVOT, SHOCK (INC. 19-20)
-
191623-011 ...WASHER...WASHER
-
201623-010 ...FITTING, GREASE...FITTING, GREASE
-
211623-794 WASHERWASHER
-
223604-327 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
231704-279 SPRING, OVERLOAD - ASSEMBLY (INC. 24-27)SPRING, OVERLOAD - ASSEMBLY (INC. 24-27)
-
242604-788 ...BLOCK, WEAR...BLOCK, WEAR
-
250623-121 ...SCREW, MACHINE...SCREW, MACHINE
-
268041-276 ...NUT, LOCK...NUT, LOCK
-
271604-412 ...CLIP, RETAINING...CLIP, RETAINING
-
280623-746 WASHERWASHER
-
290604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
301604-430 SPACER, SPRING SLIDESPACER, SPRING SLIDE
-
312604-516 SLIDE, SPRINGSLIDE, SPRING
-
320623-921 WASHERWASHER
-
333604-060 WHEEL, IDLER (INC. 5-6)WHEEL, IDLER (INC. 5-6)
-
341604-940 SPACERSPACER
-
353604-326 AXLE, REAR WHEELAXLE, REAR WHEEL
-
361704-680 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
378042-486 NUTNUT
-
380124-310 SCREW, CAPSCREW, CAP
-
393604-298 WHEEL, IDLER - WHITE (INC. 5-6)WHEEL, IDLER - WHITE (INC. 5-6)
-
400623-664 WASHERWASHER
-
418408-831 SCREW, CAPSCREW, CAP
