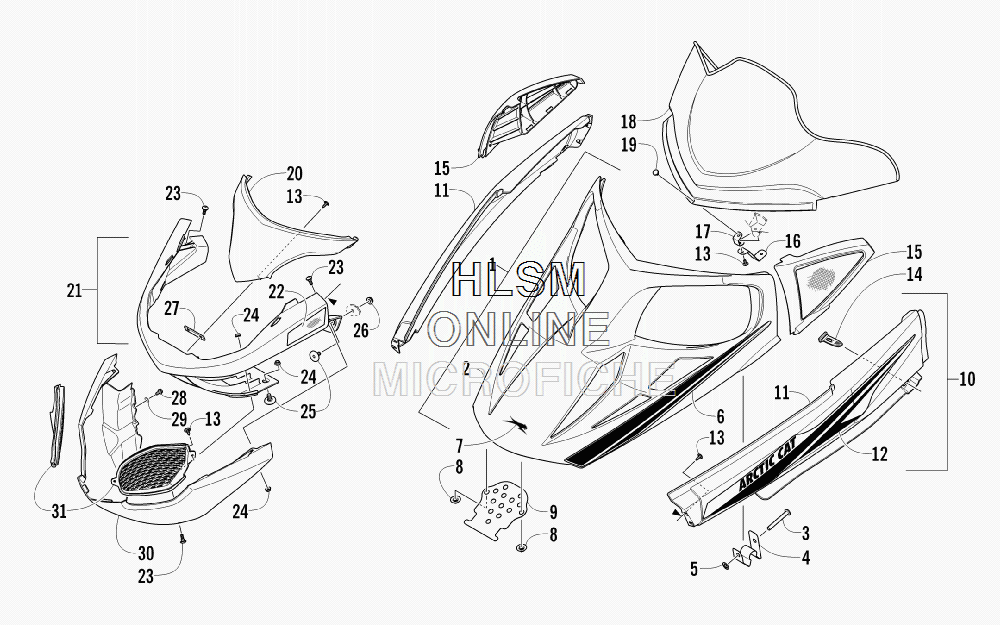

HOOD- WINDSHIELD- AND FRONT BUMBER ASSEMBLY для Arctic Cat T570 - 2011 года выпуска`
-
№АртикулНазвание
-
12718-945 HOOD W/DECALS - WHITE (INC. 2-7)HOOD W/DECALS - WHITE (INC. 2-7)
-
27800-956 ...HOOD W/O DECALS - WHITE (INC. 3-5)...HOOD W/O DECALS - WHITE (INC. 3-5)
-
31623-610 ......PIN, RETAINING......PIN, RETAINING
-
45706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT......CLIP, HOOD HOLD-DOWN - RIGHT
-
45706-085 ......CLIP, HOOD HOLD-DOWN - LEFT......CLIP, HOOD HOLD-DOWN - LEFT
-
51623-409 ......NUT, PUSH......NUT, PUSH
-
69611-204 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
69611-205 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
78611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
81623-469 NUT, STAMPEDNUT, STAMPED
-
95606-042 BRACKET, HINGEBRACKET, HINGE
-
102718-992 SPAR, FRONT W/DECALS - RIGHT - WHITE (INC. 11-12)SPAR, FRONT W/DECALS - RIGHT - WHITE (INC. 11-12)
-
102718-993 SPAR, FRONT W/DECALS - LEFT - WHITE (INC. 11-12)SPAR, FRONT W/DECALS - LEFT - WHITE (INC. 11-12)
-
115606-046 ...SPAR, FRONT W/O DECALS - RIGHT - WHITE...SPAR, FRONT W/O DECALS - RIGHT - WHITE
-
115606-047 ...SPAR, FRONT W/O DECALS - LEFT - WHITE...SPAR, FRONT W/O DECALS - LEFT - WHITE
-
129611-206 ...DECAL, FRONT SPAR - RIGHT...DECAL, FRONT SPAR - RIGHT
-
129611-207 ...DECAL, FRONT SPAR - LEFT...DECAL, FRONT SPAR - LEFT
-
131623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
144606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
155606-940 BEZEL, INTAKE - RIGHT - WHITEBEZEL, INTAKE - RIGHT - WHITE
-
155606-941 BEZEL, INTAKE - LEFT - WHITEBEZEL, INTAKE - LEFT - WHITE
-
165606-277 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
174606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
185606-962 WINDSHIELDWINDSHIELD
-
191623-677 CLIP, RETAININGCLIP, RETAINING
-
205606-991 FASCIA, BUMPER - UPPER - WHITEFASCIA, BUMPER - UPPER - WHITE
-
212718-925 BUMPER, FRONT - WHITE (INC. 22)BUMPER, FRONT - WHITE (INC. 22)
-
229611-384 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
229611-385 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
230423-355 SCREW, SHOULDERSCREW, SHOULDER
-
248427-602 NUT, LOCKNUT, LOCK
-
251623-775 SCREW, SHOULDERSCREW, SHOULDER
-
268424-602 NUTNUT
-
275606-953 SPACERSPACER
-
280623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
298053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
305606-462 FASCIA, BUMPER - LOWER - BLACKFASCIA, BUMPER - LOWER - BLACK
-
314606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
314606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
