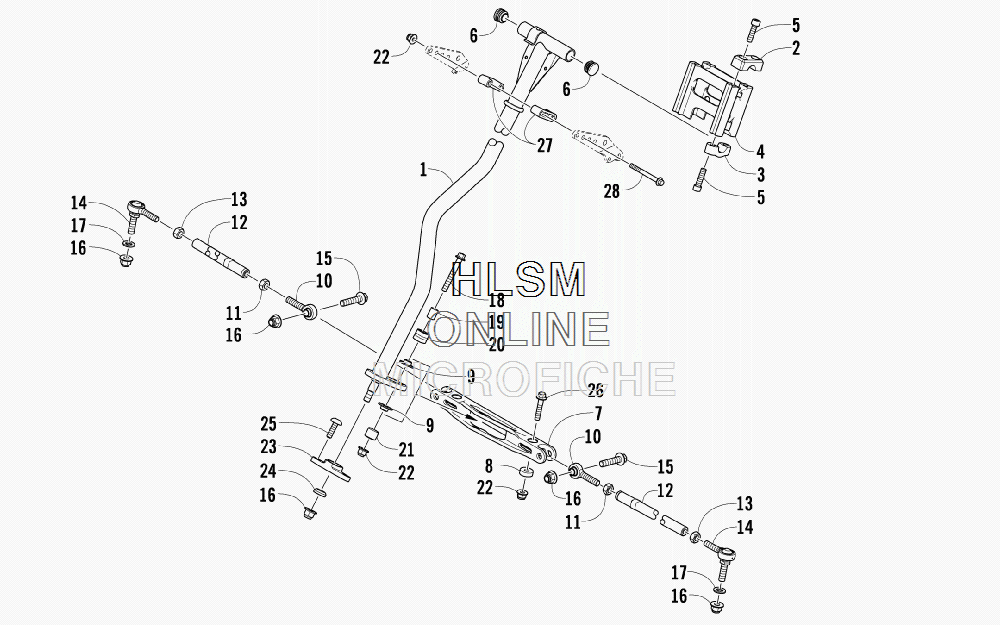

STEERING POST AND TIE ROD ASSEMBLY для Arctic Cat SNO PRO 500 - 2011 года выпуска`
-
№АртикулНазвание
-
11705-242 POST, STEERINGPOST, STEERING
-
20705-355 CAP, ADJUSTING BLOCK - UPPERCAP, ADJUSTING BLOCK - UPPER
-
30605-676 CAP, ADJUSTING BLOCK - LOWERCAP, ADJUSTING BLOCK - LOWER
-
40605-875 RISER, HANDLEBAR - 3.44 IN.RISER, HANDLEBAR - 3.44 IN.
-
40605-779 RISER, HANDLEBAR - 4.40 IN. - OPTIONALRISER, HANDLEBAR - 4.40 IN. - OPTIONAL
-
40605-838 RISER, HANDLEBAR - 5.40 IN. - OPTIONALRISER, HANDLEBAR - 5.40 IN. - OPTIONAL
-
50623-872 SCREW, CAPSCREW, CAP
-
61606-079 PLUGPLUG
-
71705-240 DRAG LINK - ASSEMBLY (INC. 8-9)DRAG LINK - ASSEMBLY (INC. 8-9)
-
80605-760 ...BEARING...BEARING
-
90605-971 ...INSERT...INSERT
-
101605-018 ROD END - RIGHT-HAND THREADROD END - RIGHT-HAND THREAD
-
118420-002 NUT, HEX - RIGHT-HAND THREADNUT, HEX - RIGHT-HAND THREAD
-
120605-952 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
130423-013 NUT, HEX - LEFT-HAND THREADNUT, HEX - LEFT-HAND THREAD
-
141605-019 ROD END - LEFT-HAND THREADROD END - LEFT-HAND THREAD
-
158408-045 SCREW, CAPSCREW, CAP
-
168427-002 NUT, LOCKNUT, LOCK
-
171623-803 WASHERWASHER
-
188409-860 SCREW, CAPSCREW, CAP
-
190605-972 AXLE, BEARING - HOUSINGAXLE, BEARING - HOUSING
-
201705-110 HOUSING W/BEARINGHOUSING W/BEARING
-
210605-973 STOP, STEERING POSTSTOP, STEERING POST
-
228427-802 NUT, LOCKNUT, LOCK
-
231705-385 HOUSING, BEARING - ASSEMBLYHOUSING, BEARING - ASSEMBLY
-
243604-210 SPACER, BEARINGSPACER, BEARING
-
258476-820 SCREW, MACHINESCREW, MACHINE
-
268408-840 SCREW, CAPSCREW, CAP
-
270605-576 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
288408-880 SCREW, CAPSCREW, CAP
